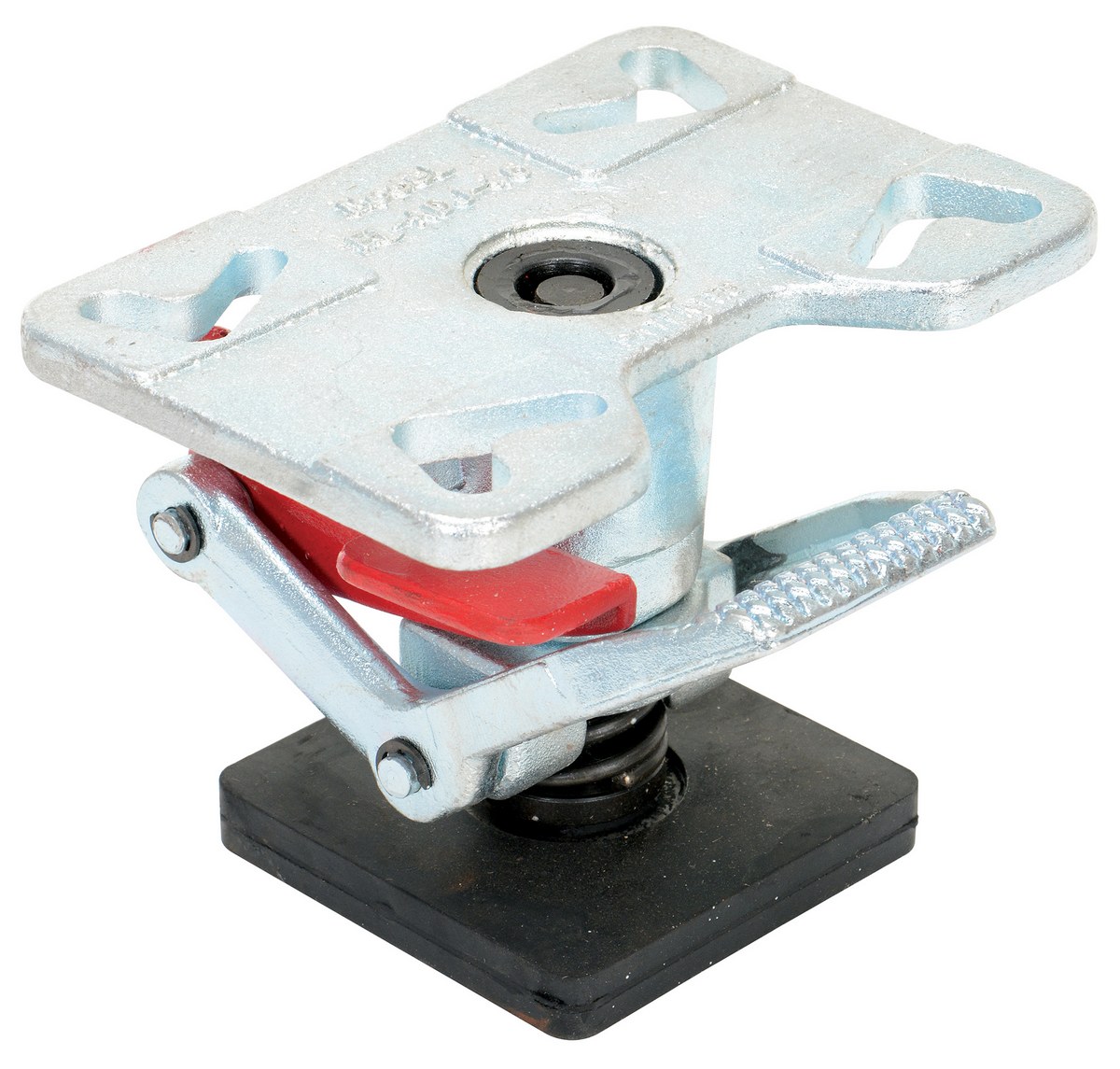

model: FL-ADJ-46



Featured Facilities Maintenance


Basement Floor Jacks
Portable Work Station Fan
Salt Boxes
Floor Markers
Line Markers
Deluxe Spring Driven Low Pressure Hose Reels
Molded Rubber Speed Bumps
DANGER SAFETY SIGNAGE
Hose & Cable Reels
model chart

Product Family Overview

Print Friendly

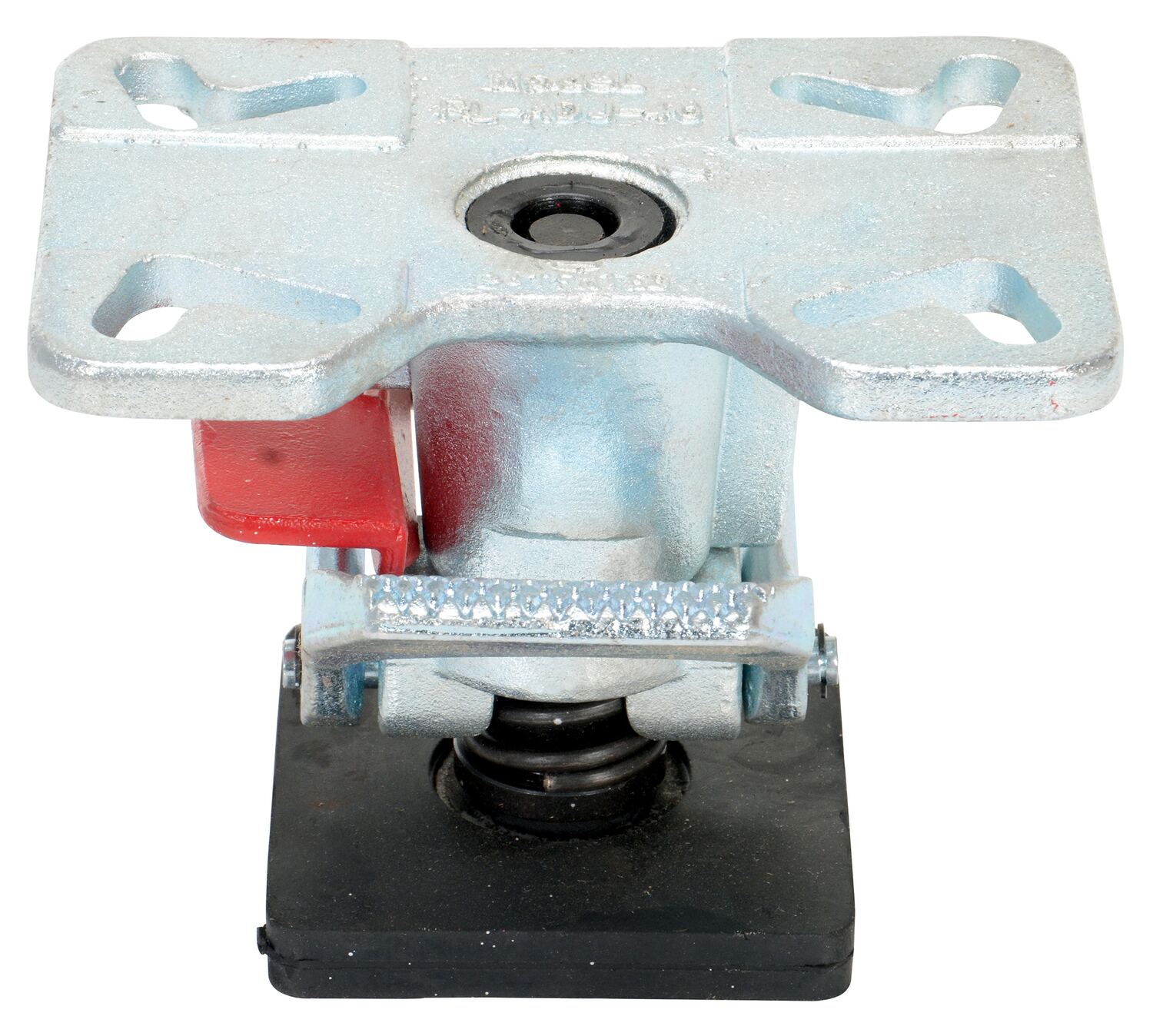

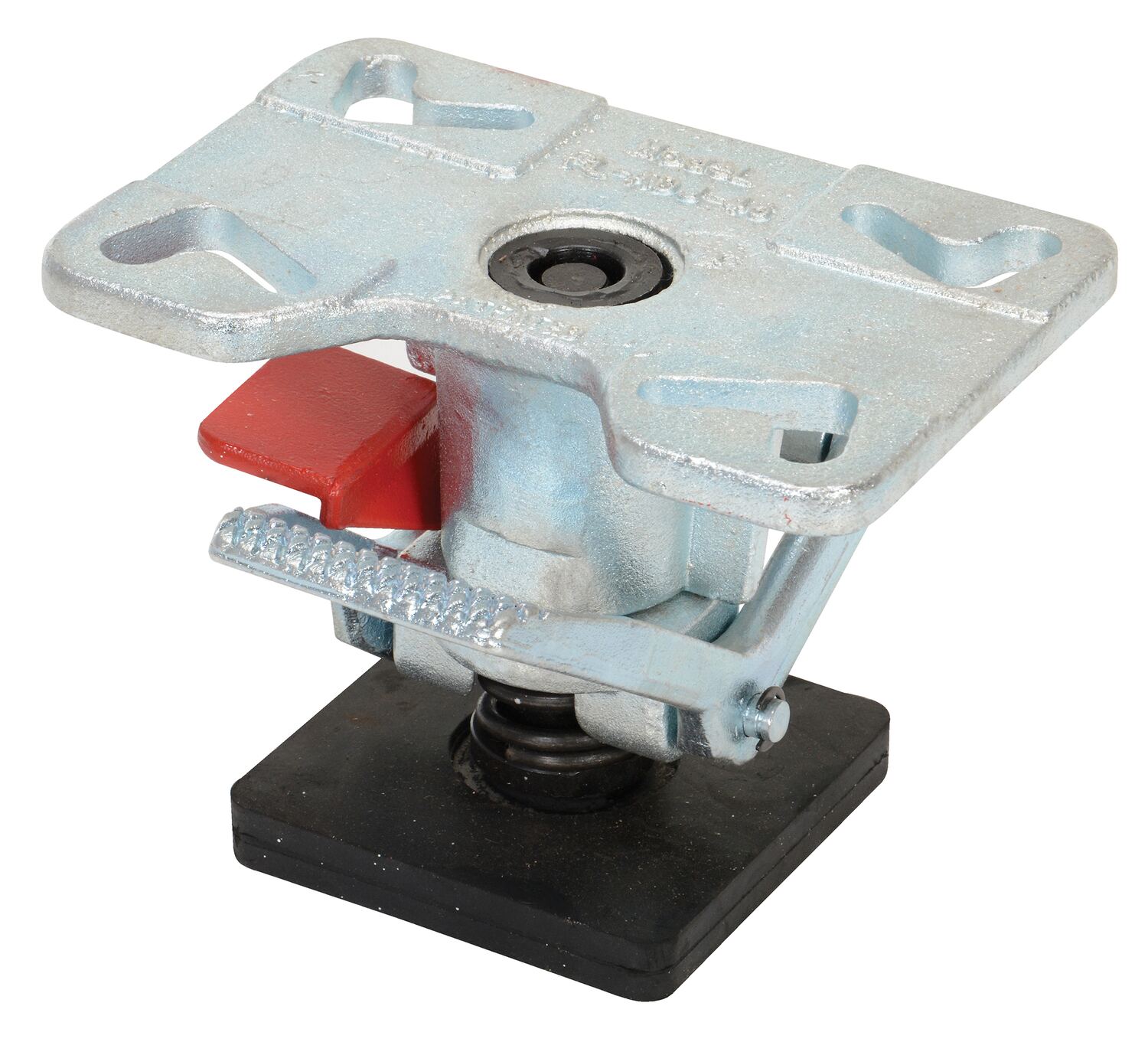

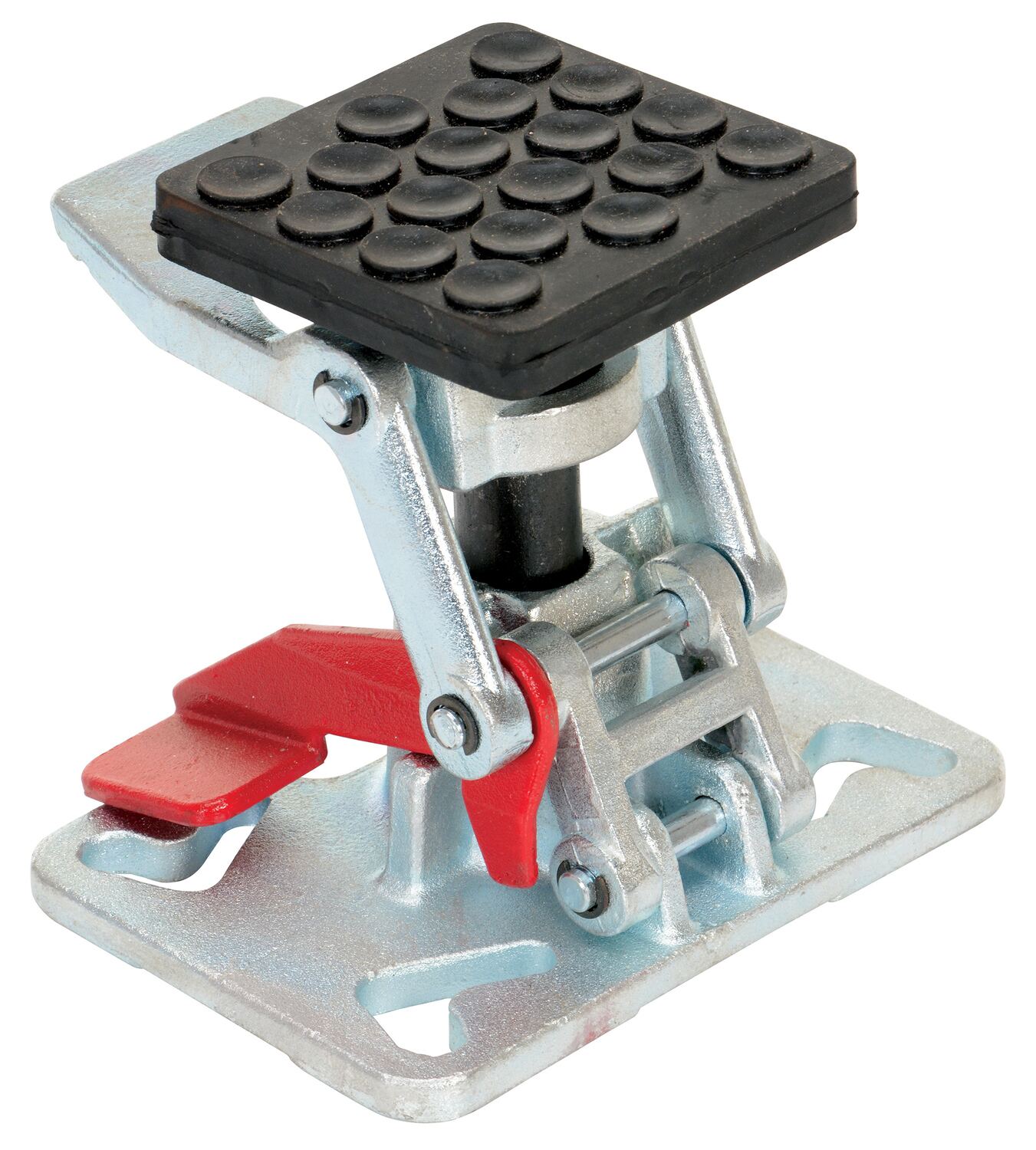

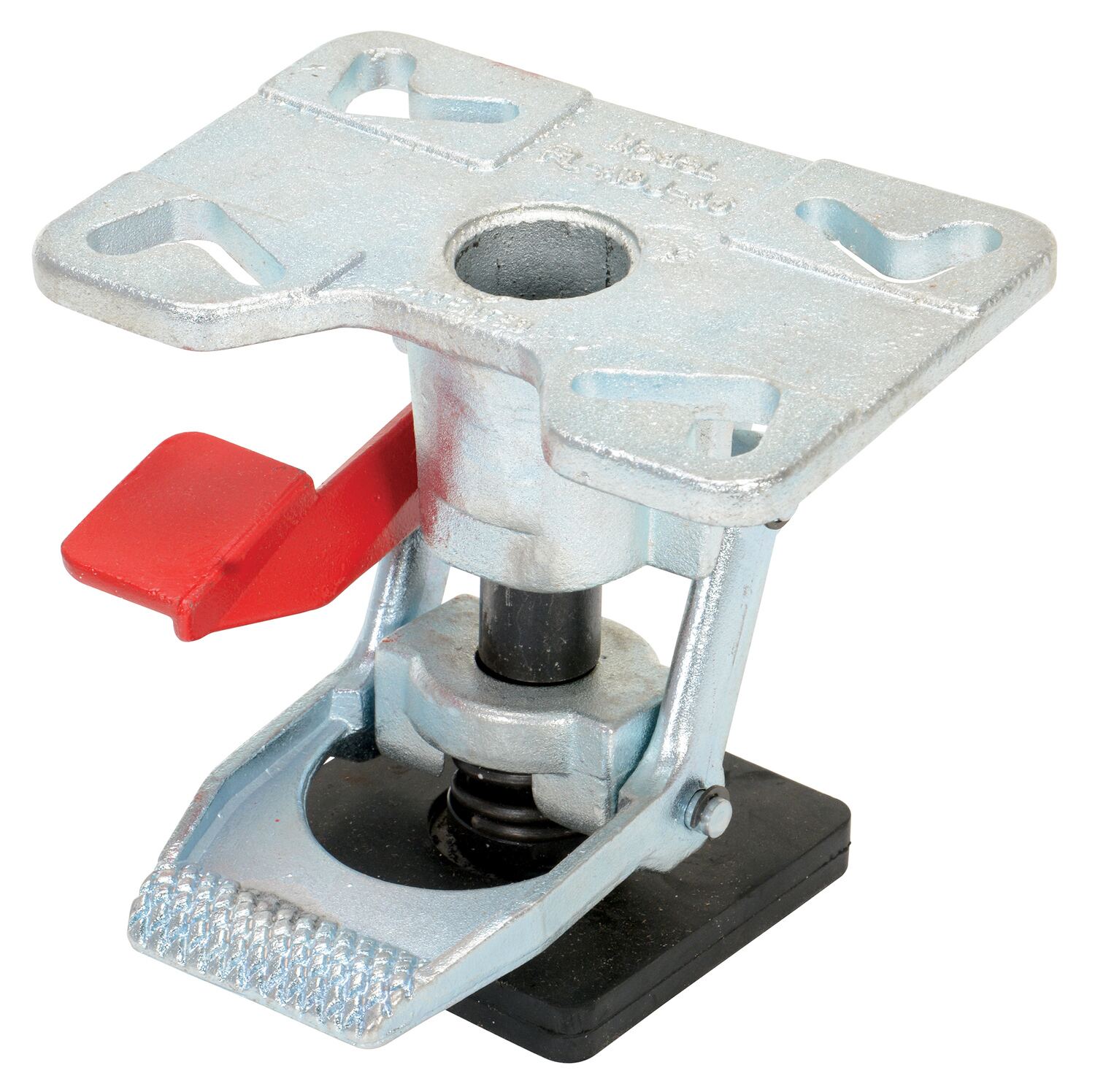

Adjustable Height Floor Locks
SERIES: FL-ADJ

This one of a kind floor lock includes an adjustable height foot pad that will work on carts with different caster heights. The adjustable height feature provides uniform locking and safety unlocking force for better ergonomic operation. This feature also keeps the floor lock working properly as spring and pads wear over time. Height is adjustable by turning the bottom pad. The bottom pad includes suction-cups for extra grip.

  • Uniform locking and safer unlocking force offers better ergonomic operation
  • Heavy-duty cast steel construction offers long lasting use

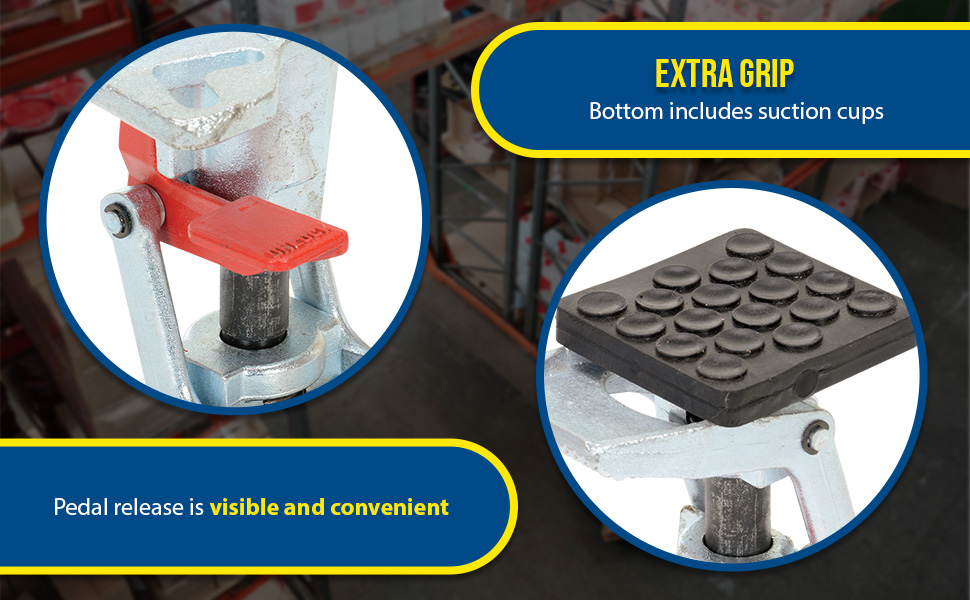

  • Pedal release has a visible & convenient location
  • Bottom pad includes suction-cups for extra grip

This one of a kind floor lock includes an adjustable height foot pad that will work on carts with different caster heights. The adjustable height feature provides uniform locking and safety unlocking force for better ergonomic operation. This feature also keeps the floor lock working properly as spring and pads wear over time. Height is adjustable by turning the bottom pad. The bottom pad includes suction-cups for extra grip.

  • Uniform locking and safer unlocking force offers better ergonomic operation
  • Heavy-duty cast steel construction offers long lasting use
  • Pedal release has a visible & convenient location
  • Bottom pad includes suction-cups for extra grip

Other Jacks & Floor Locks

 Low Profile Floor Lock Adjustable Height Floor Locks General Purpose Floor Locks Basement Floor Jacks

Additional Models In This Family
view entire Image Gallery

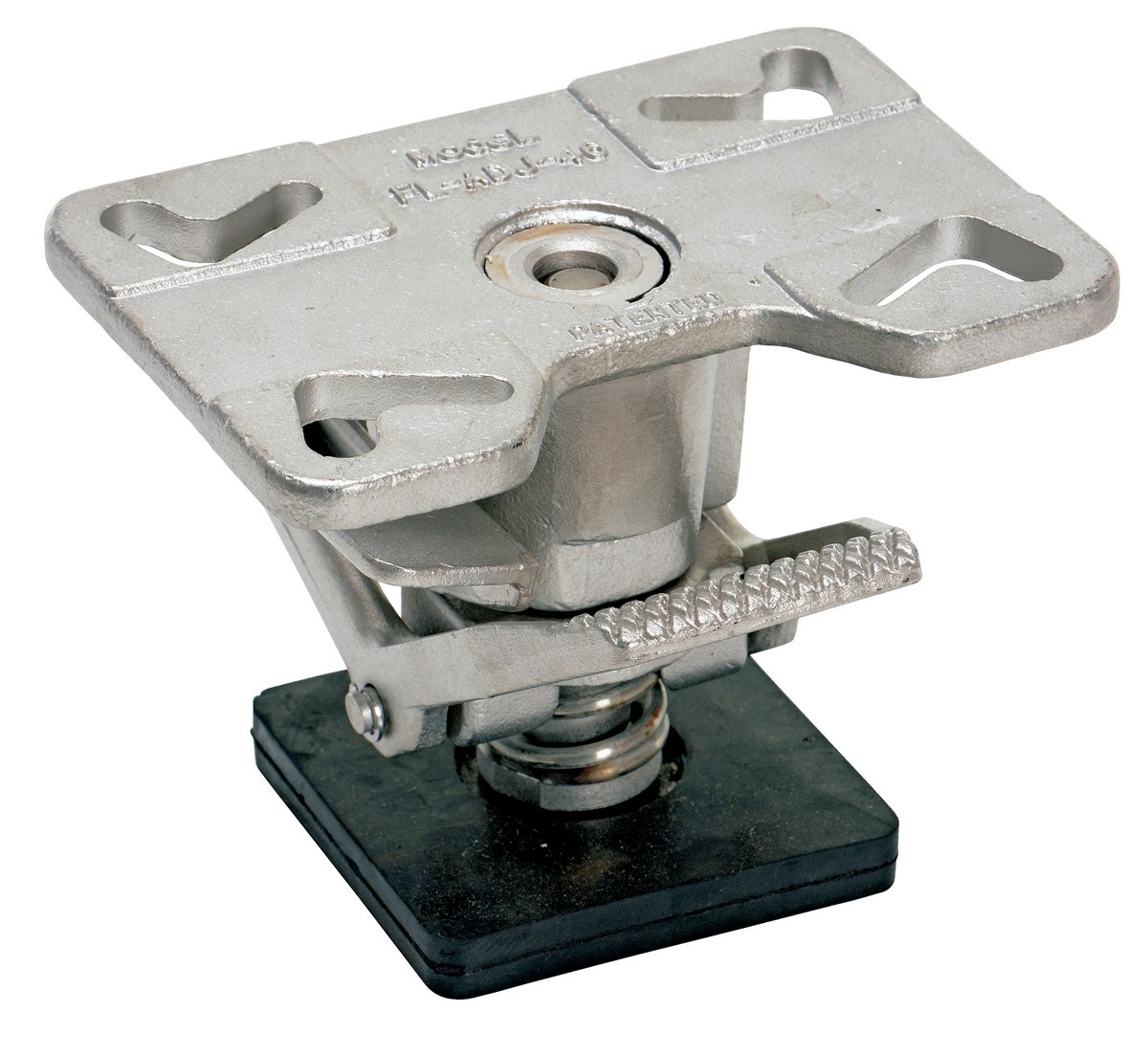

FL-ADJ-46-SS

model FL-ADJ-46-SS

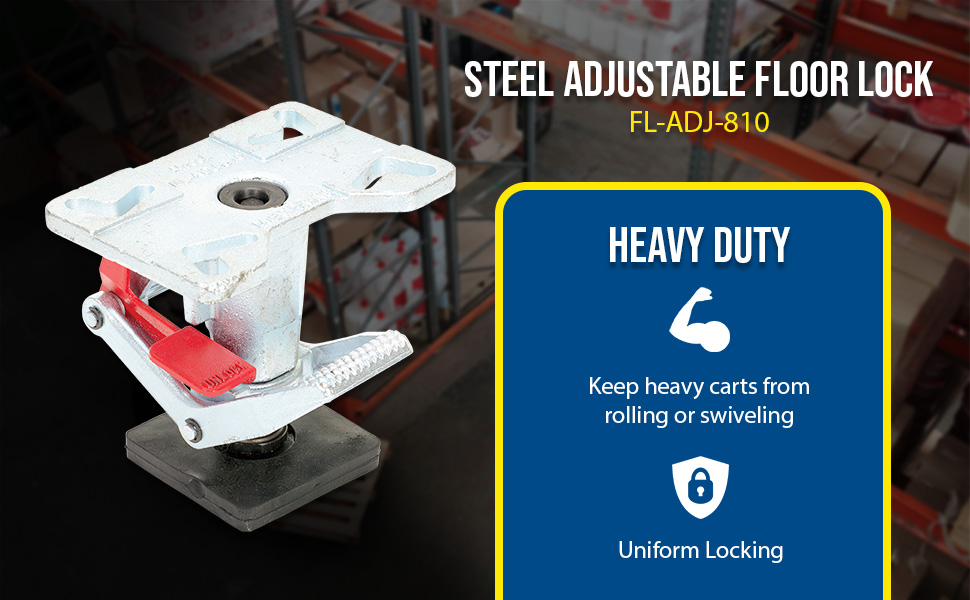

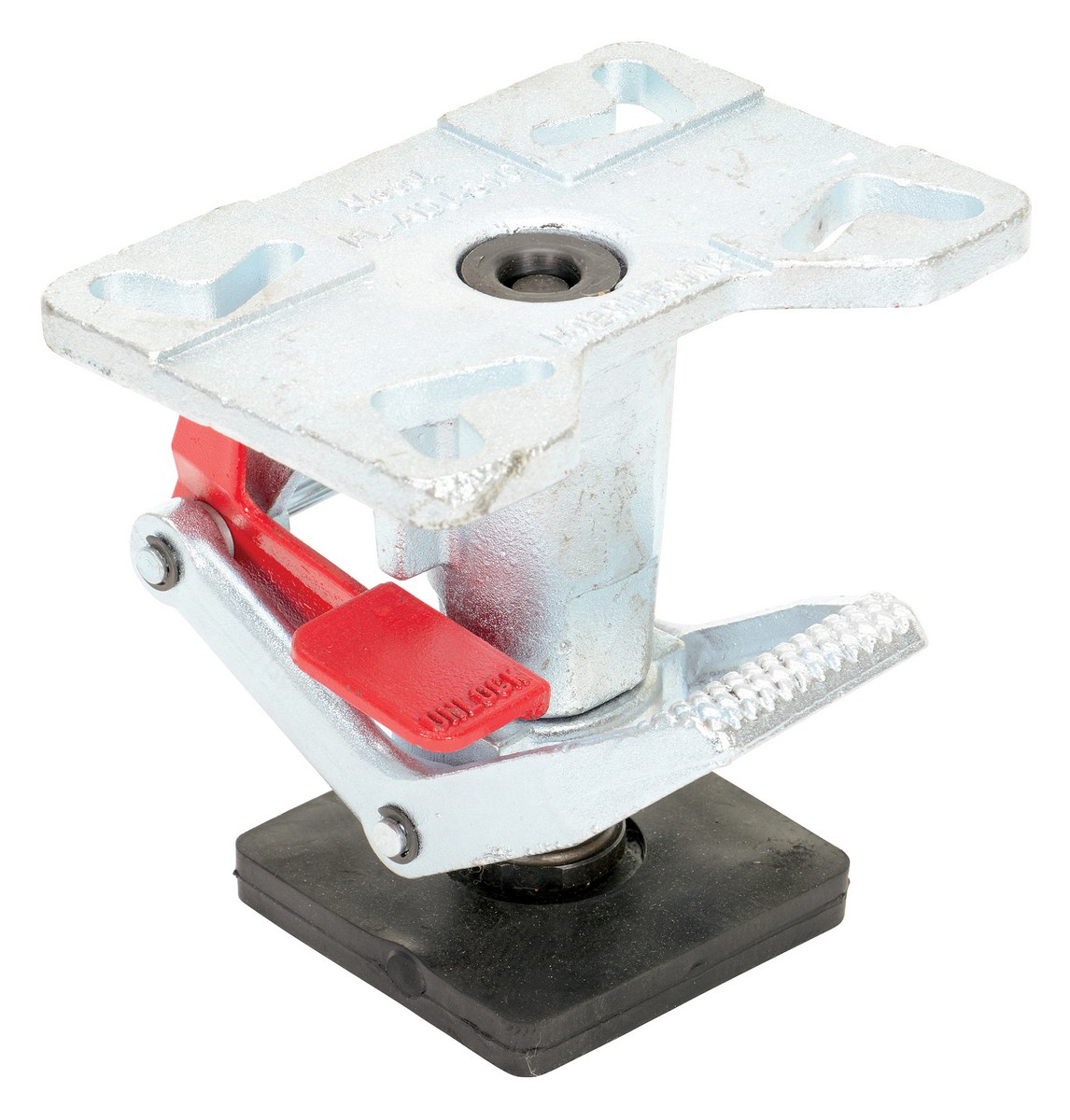

FL-ADJ-810

model FL-ADJ-810

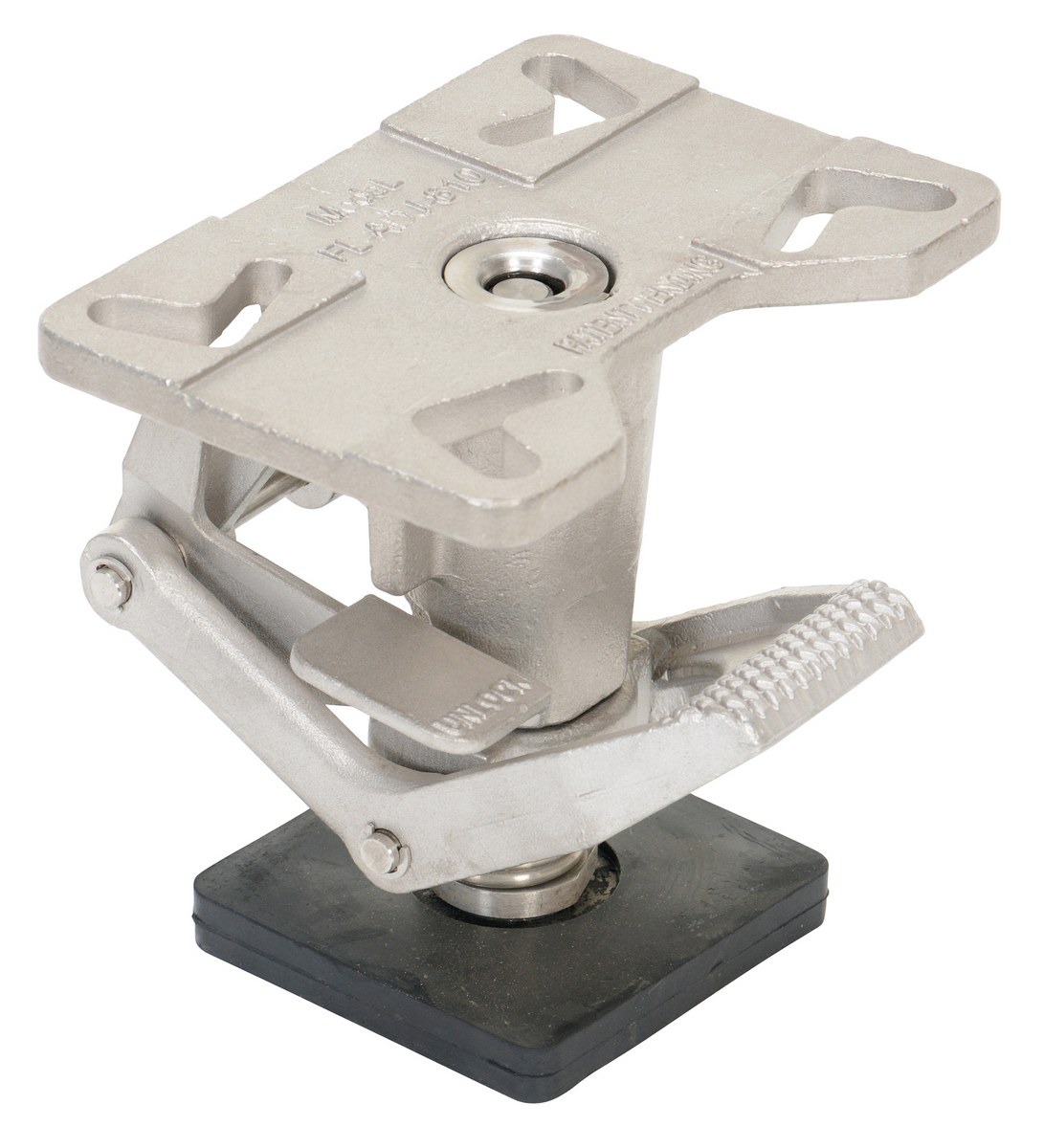

FL-ADJ-810-SS

model FL-ADJ-810-SS

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

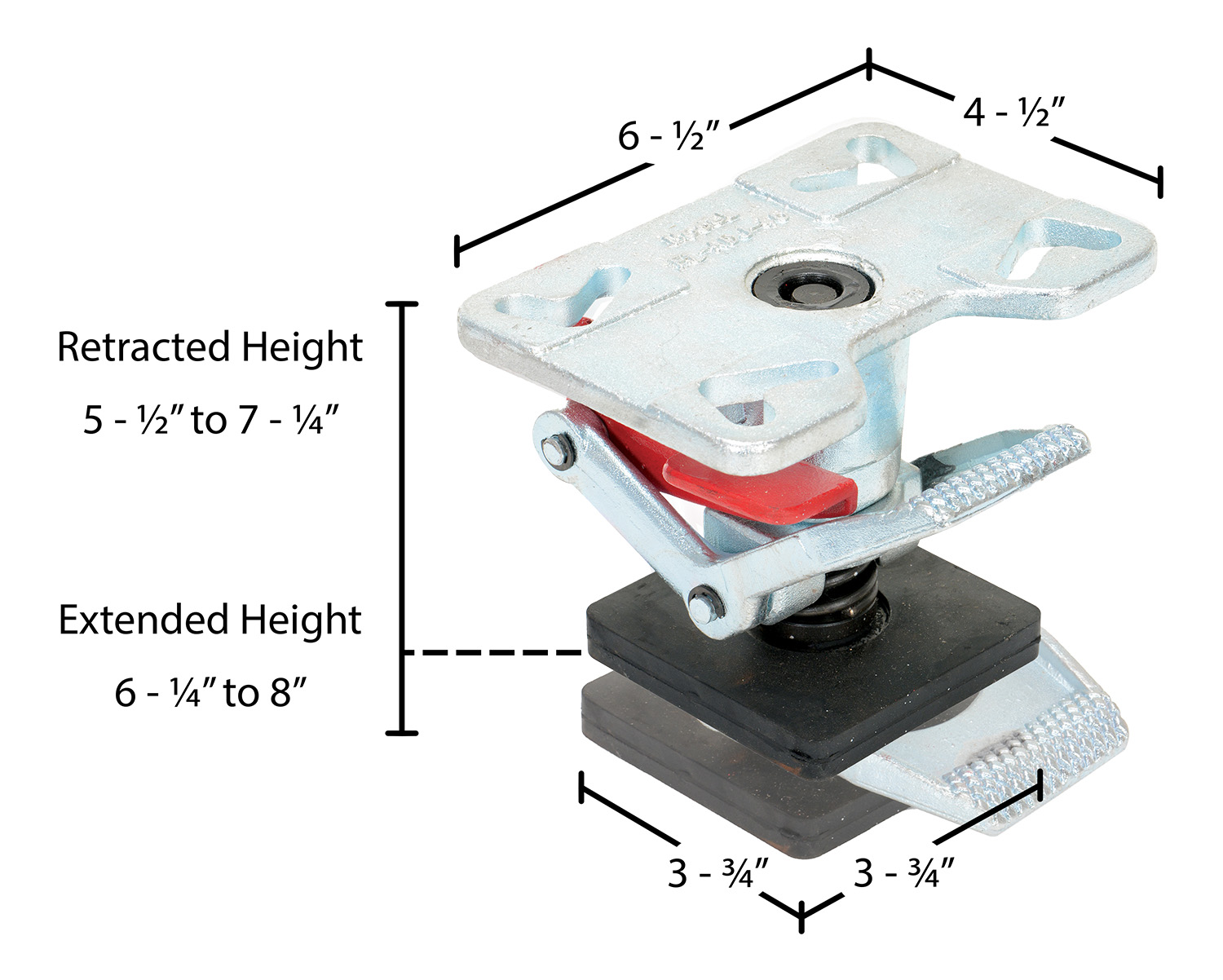

FL-ADJ-46 POPULAR FL-ADJ-4690 Days Limited WarrantySteel Adjustable Floor Lock 6-1/4 to 8 In. Height SilverUsed with Caster Size (in. - in.): 4 to 6
Extended Height (in. to in.): 6-1/4 to 8		9
FL-ADJ-46-SS FL-ADJ-46-SS90 Days Limited WarrantyStainless Steel Adjustable Floor Lock 6-1/4 to 8 In. Height SilverUsed with Caster Size (in. - in.): 4 to 6
Extended Height (in. to in.): 6-1/4 to 8		7

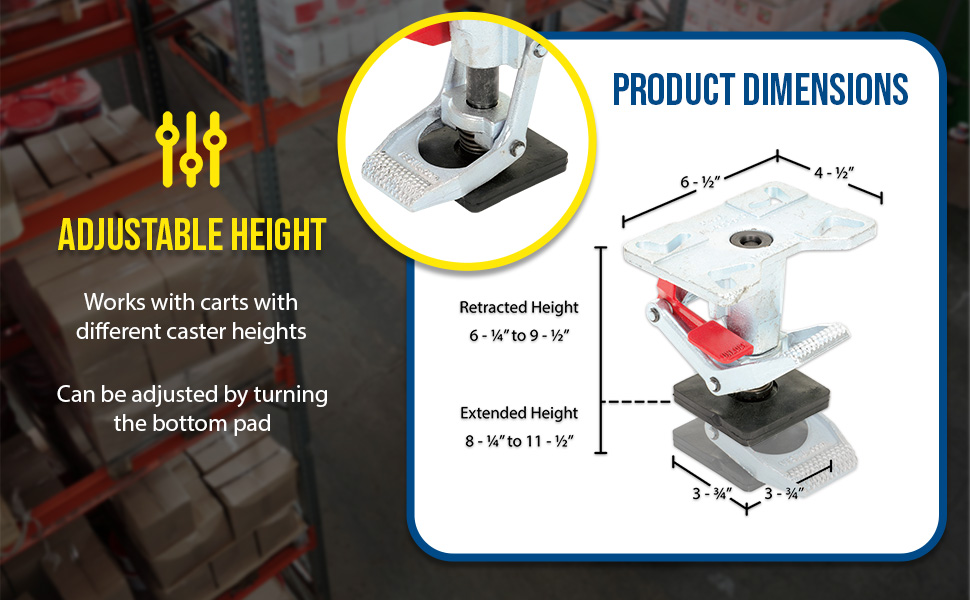

FL-ADJ-810 FL-ADJ-81090 Days Limited WarrantySteel Adjustable Floor Lock 8-1/4 to 11-1/2 In. Height SilverUsed with Caster Size (in. - in.): 6 to 8
Extended Height (in. to in.): 8-1/4 to 11-1/2		8
FL-ADJ-810-SS FL-ADJ-810-SS90 Days Limited WarrantyStainless Steel Adjustable Floor Lock 8-1/4 to 11-1/2 In. Height SilverUsed with Caster Size (in. - in.): 6 to 8
Extended Height (in. to in.): 8-1/4 to 11-1/2		9

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

FL-ADJ-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Used with Caster Size (in. - in.): 4 to 6
Extended Height (in. to in.): 6-1/4 to 8
Used with Caster Size (in. - in.): 4 to 6
Extended Height (in. to in.): 6-1/4 to 8

FL-ADJ-46-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Used with Caster Size (in. - in.): 4 to 6
Extended Height (in. to in.): 6-1/4 to 8
Used with Caster Size (in. - in.): 4 to 6
Extended Height (in. to in.): 6-1/4 to 8

FL-ADJ-810
Unit:
Size: W x L x H
Weight:
Limited Warranty
Used with Caster Size (in. - in.): 6 to 8
Extended Height (in. to in.): 8-1/4 to 11-1/2
Used with Caster Size (in. - in.): 6 to 8
Extended Height (in. to in.): 8-1/4 to 11-1/2

FL-ADJ-810-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Used with Caster Size (in. - in.): 6 to 8
Extended Height (in. to in.): 8-1/4 to 11-1/2
Used with Caster Size (in. - in.): 6 to 8
Extended Height (in. to in.): 8-1/4 to 11-1/2
Adjustable Height Floor Locks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


FL-ADJ-46

FL-ADJ-46-SS

FL-ADJ-810

Testing Certificates


FL-ADJ-46

FL-ADJ-46-SS

FL-ADJ-810

FL-ADJ-810-SS

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: What grade stainless steel is the FL-ADJ-46-SS?

A: The FL-ADJ-46-SS and the FL-ADJ-810-SS are composed of 304 grade Stainless Steel.

Q: What is the capacity of the floor lock?

A: the FL-ADJ floor locks have a locking capacity of 2,000 lbs.
