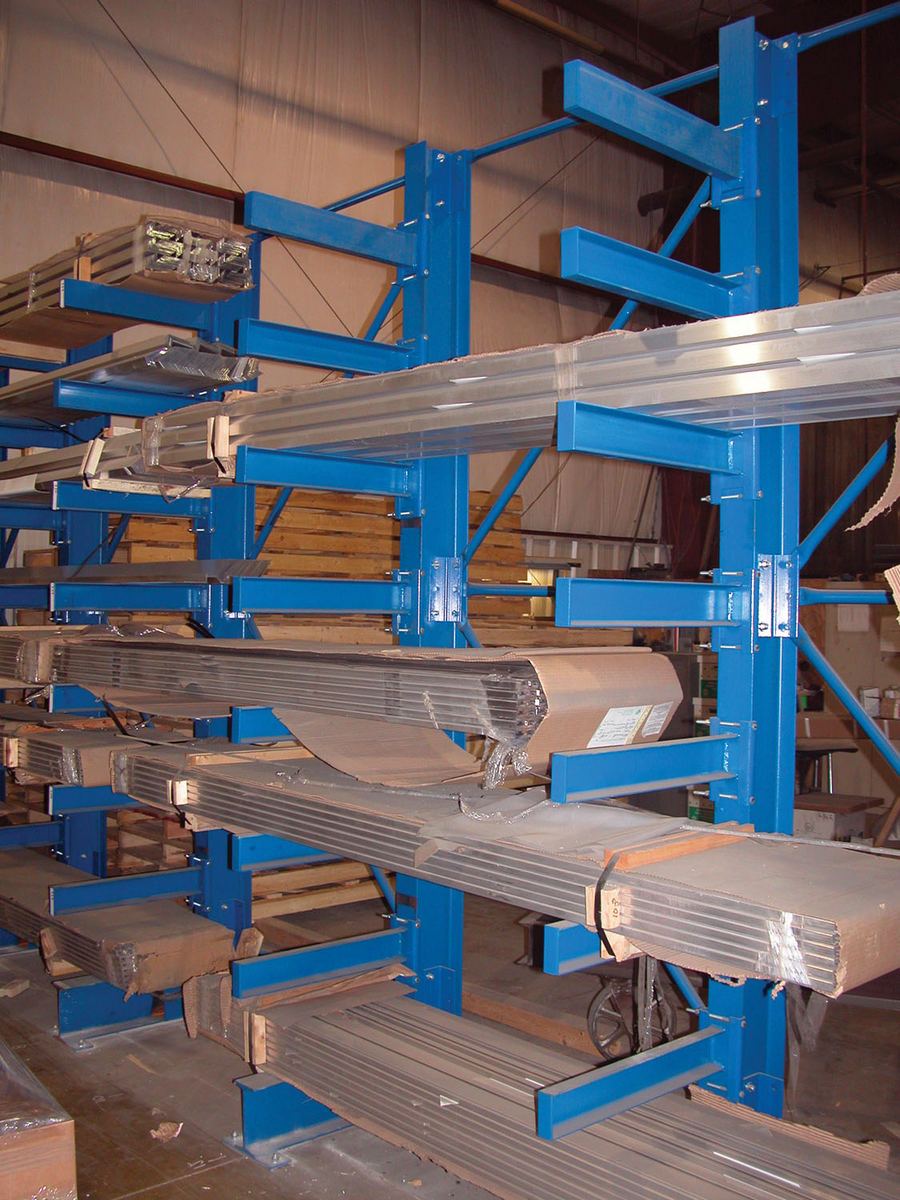

ASSEMBLED SINGLE SIDED CANTILEVER RACK.jpg

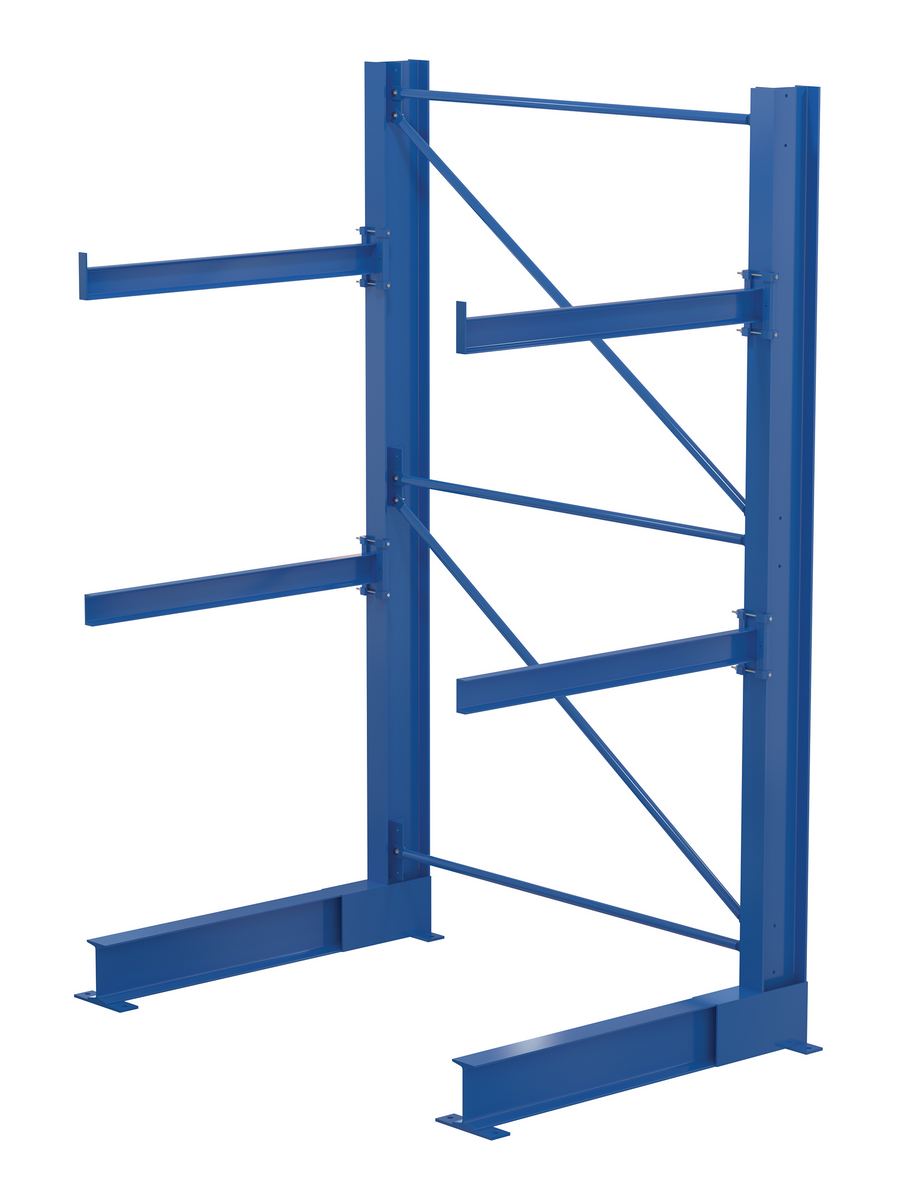

ASSEMBLED SINGLE SIDED CANTILEVER RACK_B.jpg

Structural Cantilever Racking

model: ASSEMBLED SINGLE SIDED CANTILEVER RA

Featured Storage Solutions

Vertical Storage Racks

Various Racking

Standard-Duty Cantilever Racking

Utility Boxes

Aluminum Smokers Bollard

Pallet Rack Gravity Flow Shelves

Bicycle Racks

Expandable Vertical Bar Racks

Stackable Bar Cradles

model chart

Product Family Overview

Print Friendly

Structural Cantilever Racking

SERIES: SAC,DAC

Cantilever Rack Systems offer flexibility to custom-fit individual applications. The unique bolt together construction with welded steel components offers a great combination of strength and durability. Individual components are sold separately to accommodate your requirements. Arms attach to upright with a "C" clamps that are infinitely adjustable. Capacity listed is per upright.

Other Various Racking

Standard Sheet Rack

Cantilever Carts

Horizontal Storage Rack

Steel Dock Plate Storage Rack

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

model SAC-812

model SSAL-36

model SSAL-48

model HBS-85

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

Model #		Description	Attributes	Net Wt. (lbs)
DAC-1012	90 Days Limited Warranty	Steel Double-Sided Cantilever Upright 12 In. Usable Arms 10 Ft. High 26500 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 26500 Component: Double-Sided Upright	316
DAC-1024	90 Days Limited Warranty	Steel Double-Sided Cantilever Upright 24 In. Usable Arms 10 Ft. High 16600 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 16600 Component: Double-Sided Upright	350
DAC-1036	90 Days Limited Warranty	Steel Double-Sided Cantilever Upright 36 In. Usable Arms 10 Ft. High 12250 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 12250 Component: Double-Sided Upright	365
DAC-1212	90 Days Limited Warranty	Steel Double-Sided Cantilever Upright 12 In. Usable Arms 12 Ft. High 26600 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 26600 Component: Double-Sided Upright	357
DAC-1224	90 Days Limited Warranty	Steel Double-Sided Cantilever Upright 24 In. Usable Arms 12 Ft. High 16500 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 16500 Component: Double-Sided Upright	386
DAC-1236	90 Days Limited Warranty	Steel Double-Sided Cantilever Upright 36 In. Usable Arms 12 Ft. High 12250 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 12250 Component: Double-Sided Upright	405
DAC-812	90 Days Limited Warranty	Steel Double-Sided Cantilever Upright 12 In. Usable Arms 8 Ft. High 18000 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 18000 Component: Double-Sided Upright	242
DAC-824	90 Days Limited Warranty	Steel Double-Sided Cantilever Upright 24 In. Usable Arms 8 Ft. High 12000 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 12000 Component: Double-Sided Upright	271
DAC-836	90 Days Limited Warranty	Steel Double-Sided Cantilever Upright 36 In. Usable Arms 8 Ft. High 9200 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 9200 Component: Double-Sided Upright	290
HBS-10123	1 Year Limited Warranty	Steel Structural Cantilever Brace Set 36 In. x 144 In. Blue	Component: Brace Set Column Height (in.): 120 & 144	84
HBS-10124	1 Year Limited Warranty	Steel Structural Cantilever Brace Set 48 In. x 144 In. Blue	Component: Brace Set Column Height (in.): 120 & 144	92
HBS-10125	1 Year Limited Warranty	Steel Structural Cantilever Brace Set 60 In. x 144 In. Blue	Component: Brace Set Column Height (in.): 120 & 144	102
HBS-10126	1 Year Limited Warranty	Steel Structural Cantilever Brace Set 72 In. x 144 In. Blue	Component: Brace Set Column Height (in.): 120 & 144	111
HBS-83	1 Year Limited Warranty	Steel Structural Cantilever Brace Set 36 In. x 96 In. Blue	Component: Brace Set Column Height (in.): 96	21
HBS-84	1 Year Limited Warranty	Steel Structural Cantilever Brace Set 48 In. x 96 In. Blue	Component: Brace Set Column Height (in.): 96	30
HBS-85	1 Year Limited Warranty	Steel Structural Cantilever Brace Set 60 In. x 96 In. Blue	Component: Brace Set Column Height (in.): 96	36
HBS-86	1 Year Limited Warranty	Steel Structural Cantilever Brace Set 72 In. x 96 In. Blue	Component: Brace Set Column Height (in.): 96	41
SAC-1012	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 20 In. x 10 In. x 120 In. 13,250 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 13,250 Arm(s) to Use Length (in.): 12	285
SAC-1024	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 32 In. x 20 In. x 120 In. 8,300 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 8,300 Arm(s) to Use Length (in.): 24	294
SAC-1036	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 44 In. x 10 In. x 120 In. 6,125 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 6,125 Arm(s) to Use Length (in.): 36	317
SAC-1048	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 56 In. x 10 In. x 120 In. 4,750 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 4,750 Arm(s) to Use Length (in.): 48	329
SAC-1212	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 20 In. x 10 In. x 144 In. 13,300 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 13,300 Arm(s) to Use Length (in.): 12	325
SAC-1224	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 32 In. x 10 In. x 144 In. 8,250 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 8,250 Arm(s) to Use Length (in.): 24	335
SAC-1236	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 44 In. x 10 In. x 144 In. 6,125 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 6,125 Arm(s) to Use Length (in.): 36	358
SAC-1248	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 56 In. x 10 In. x 144 In. 4,750 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 4,750 Arm(s) to Use Length (in.): 48	369
SAC-812	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 20 In. x 10 In. x 96 In. 9,000 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 9,000 Arm(s) to Use Length (in.): 12	220
SAC-824	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 32 In. x 10 In. x 96 In. 6,000 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 6,000 Arm(s) to Use Length (in.): 24	229
SAC-836	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 44 In. x 10 In. x 96 In. 4,600 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 4,600 Arm(s) to Use Length (in.): 36	243
SAC-848	1 Year Limited Warranty	Steel Single Sided Cantilever Upright 56 In. x 10 In. x 96 In. 3,800 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 3,800 Arm(s) to Use Length (in.): 48	265
SSAL-12	1 Year Limited Warranty	Steel Cantilever Straight Arm with 2 In. Lip 12 In. Length 3,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 3,000 Usable Length (in.): 11-5/16	11
SSAL-12-NL	1 Year Limited Warranty	Steel Cantilever Straight Arm No Lip 12 In. Length 3,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 3,000 Usable Length (in.): 11-5/16	11
SSAL-24	1 Year Limited Warranty	Steel Cantilever Straight Arm with 2 In. Lip 24 In. Length 2,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 2,000 Usable Length (in.): 23-5/16	15
SSAL-24-NL	1 Year Limited Warranty	Steel Cantilever Straight Arm No Lip 24 In. Length 2,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 2,000 Usable Length (in.): 23-5/16	15
SSAL-36	1 Year Limited Warranty	Steel Cantilever Straight Arm with 2 In. Lip 36 In. Length 1,200 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 1,200 Usable Length (in.): 35-5/16	20
SSAL-36-NL	1 Year Limited Warranty	Steel Cantilever Straight Arm No Lip 36 In. Length 1,200 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 1,200 Usable Length (in.): 35-5/16	20
SSAL-48	1 Year Limited Warranty	Steel Cantilever Straight Arm with 2 In. Lip 48 In. Length 1,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 1,000 Usable Length (in.): 47-5/16	24
SSAL-48-NL	1 Year Limited Warranty	Steel Cantilever Straight Arm No Lip 48 In. Length 1,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 1,000 Usable Length (in.): 47-5/16	24

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

DAC-1012

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 26500
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 26500
Component: Double-Sided Upright

DAC-1024

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 16600
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 16600
Component: Double-Sided Upright

DAC-1036

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 12250
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 12250
Component: Double-Sided Upright

DAC-1212

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 26600
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 26600
Component: Double-Sided Upright

DAC-1224

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 16500
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 16500
Component: Double-Sided Upright

DAC-1236

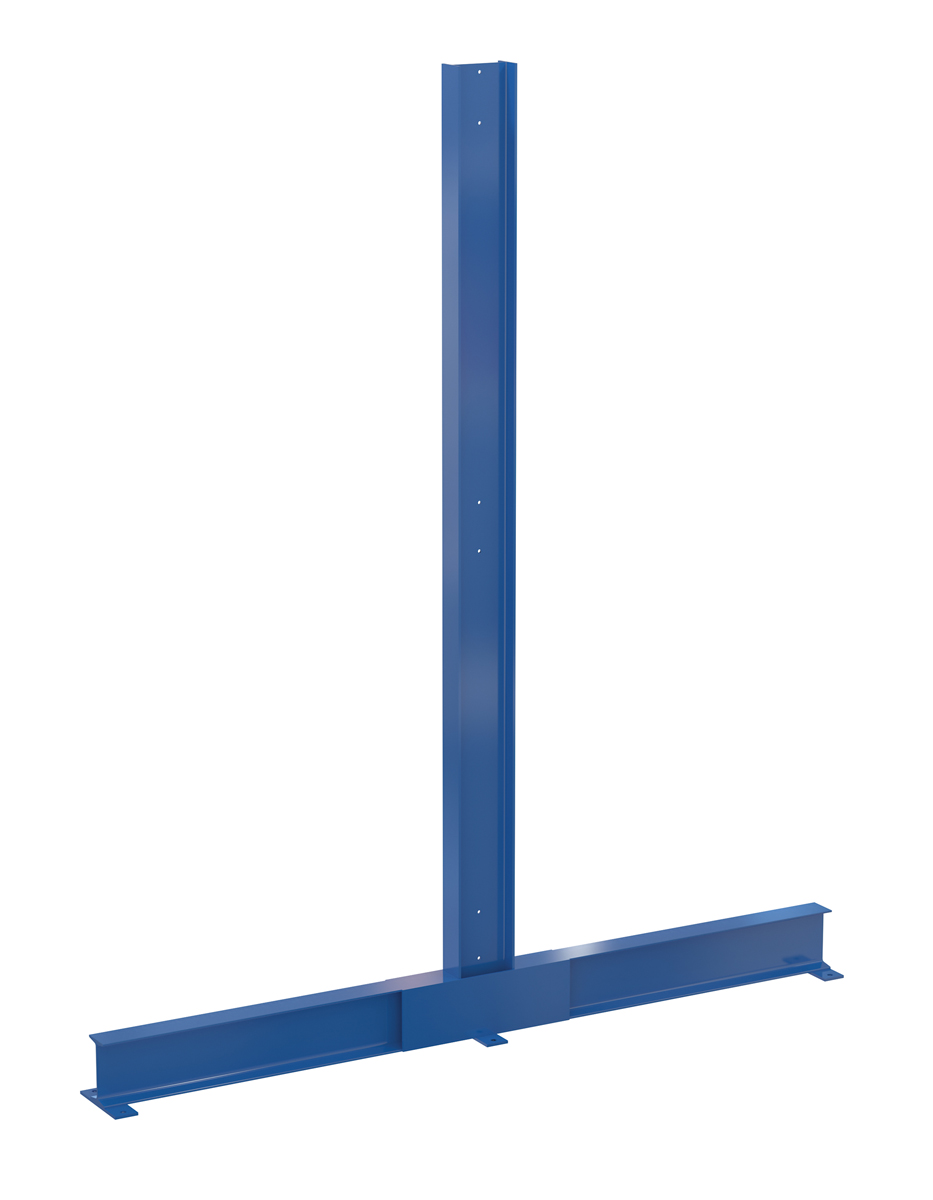

DAC-812

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 18000
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 18000
Component: Double-Sided Upright

DAC-824

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 12000
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 12000
Component: Double-Sided Upright

DAC-836

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 9200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 9200
Component: Double-Sided Upright

HBS-10123

Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 120 & 144
Component: Brace Set
Column Height (in.): 120 & 144

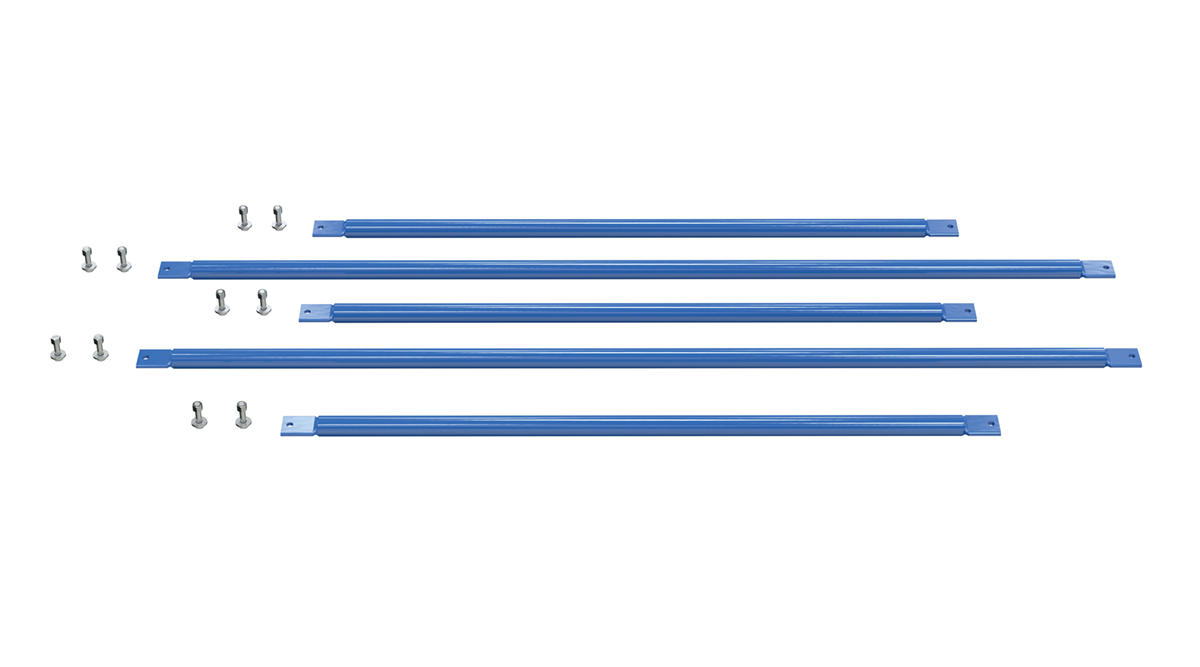

HBS-10124

Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 120 & 144
Component: Brace Set
Column Height (in.): 120 & 144

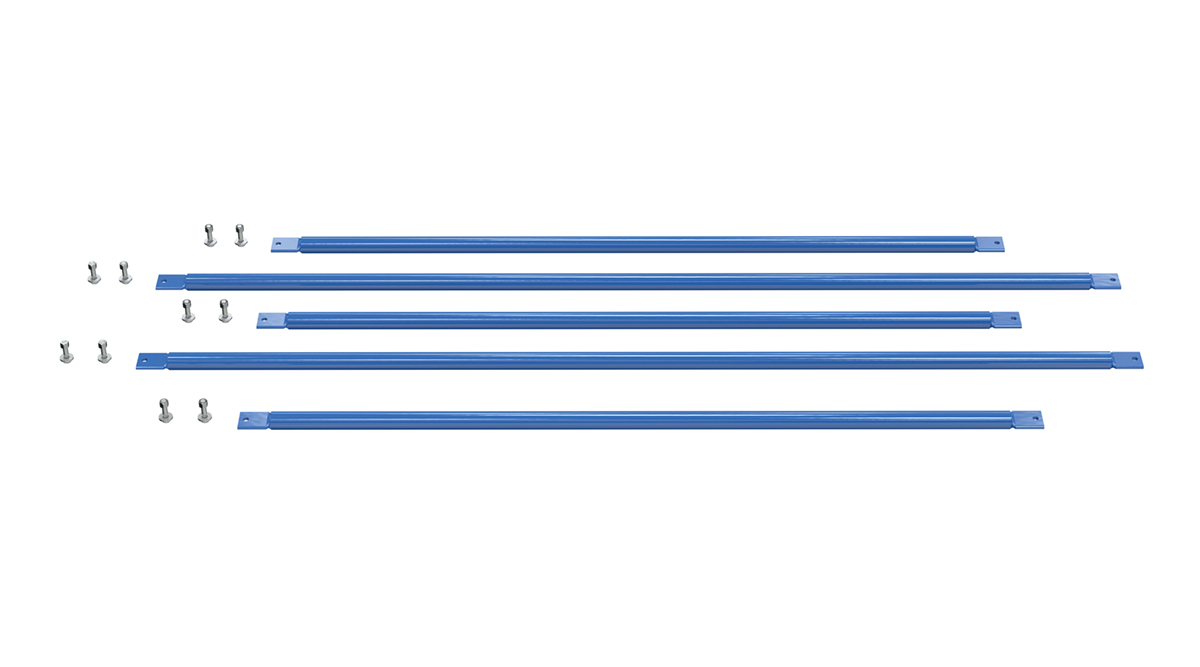

HBS-10125

Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 120 & 144
Component: Brace Set
Column Height (in.): 120 & 144

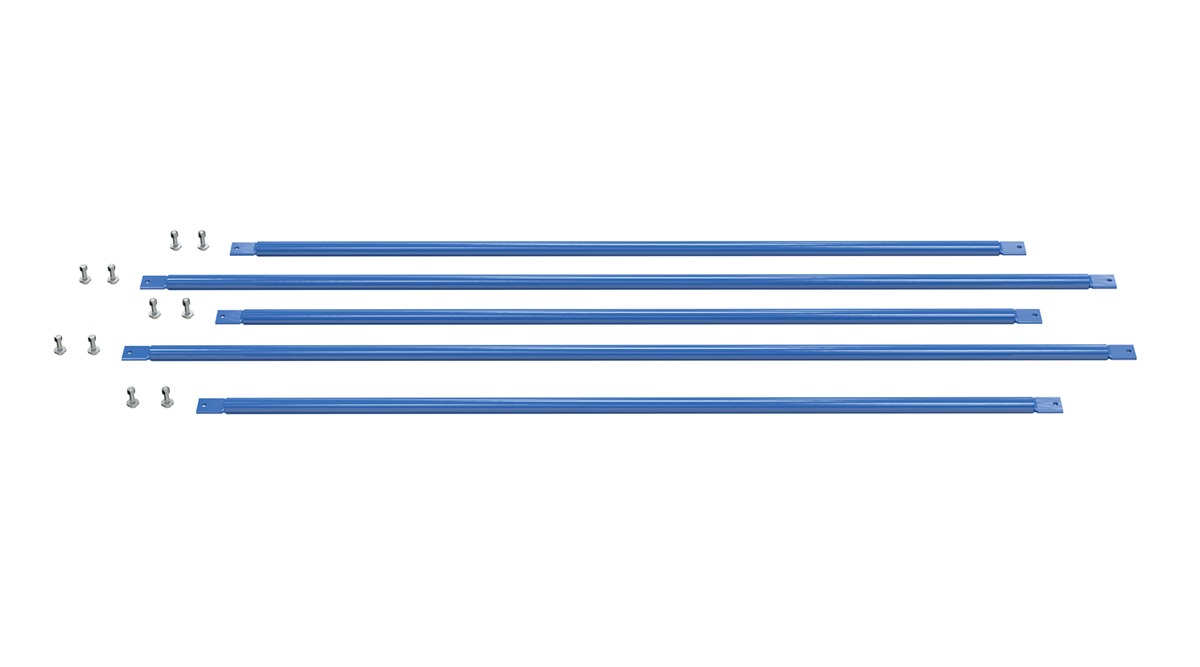

HBS-10126

Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 120 & 144
Component: Brace Set
Column Height (in.): 120 & 144

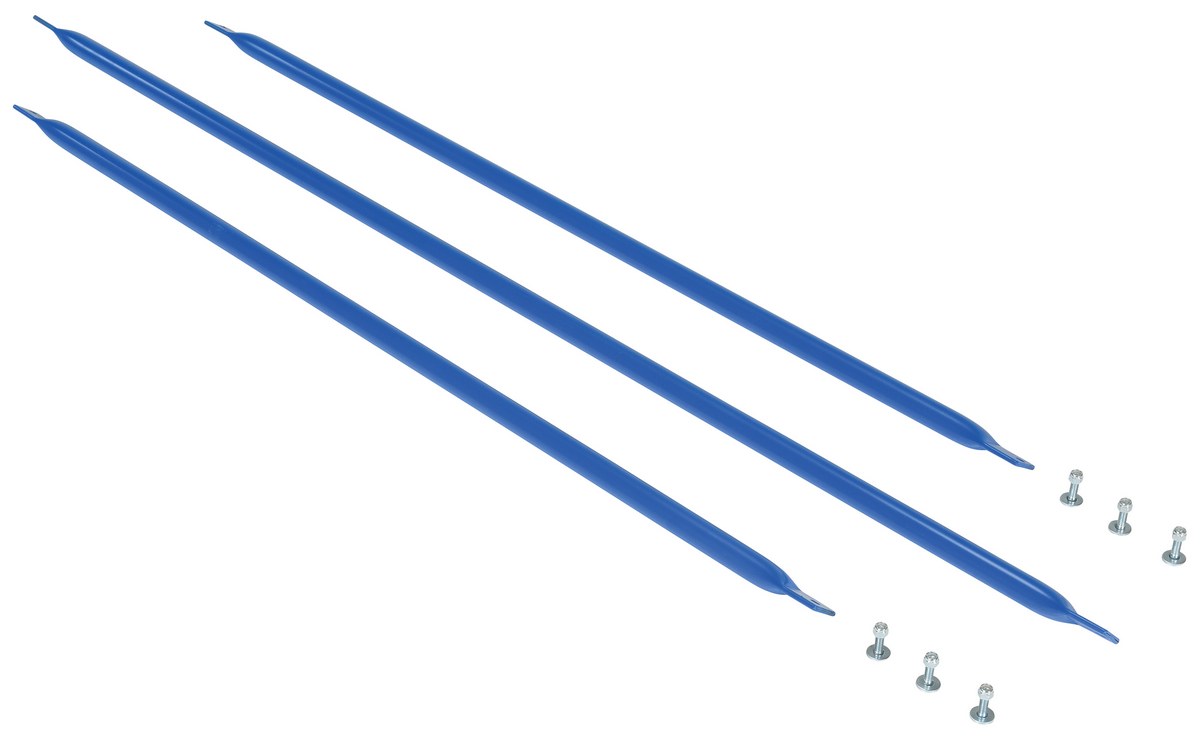

HBS-83

Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 96
Component: Brace Set
Column Height (in.): 96

HBS-84

Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 96
Component: Brace Set
Column Height (in.): 96

HBS-85

Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 96
Component: Brace Set
Column Height (in.): 96

HBS-86

Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 96
Component: Brace Set
Column Height (in.): 96

SAC-1012

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 13,250
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 13,250
Arm(s) to Use Length (in.): 12

SAC-1024

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 8,300
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 8,300
Arm(s) to Use Length (in.): 24

SAC-1036

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 6,125
Arm(s) to Use Length (in.): 36
Uniform Capacity per Upright (lb.): 6,125
Arm(s) to Use Length (in.): 36

SAC-1048

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 4,750
Arm(s) to Use Length (in.): 48
Uniform Capacity per Upright (lb.): 4,750
Arm(s) to Use Length (in.): 48

SAC-1212

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 13,300
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 13,300
Arm(s) to Use Length (in.): 12

SAC-1224

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 8,250
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 8,250
Arm(s) to Use Length (in.): 24

SAC-1236

SAC-1248

SAC-812

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 9,000
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 9,000
Arm(s) to Use Length (in.): 12

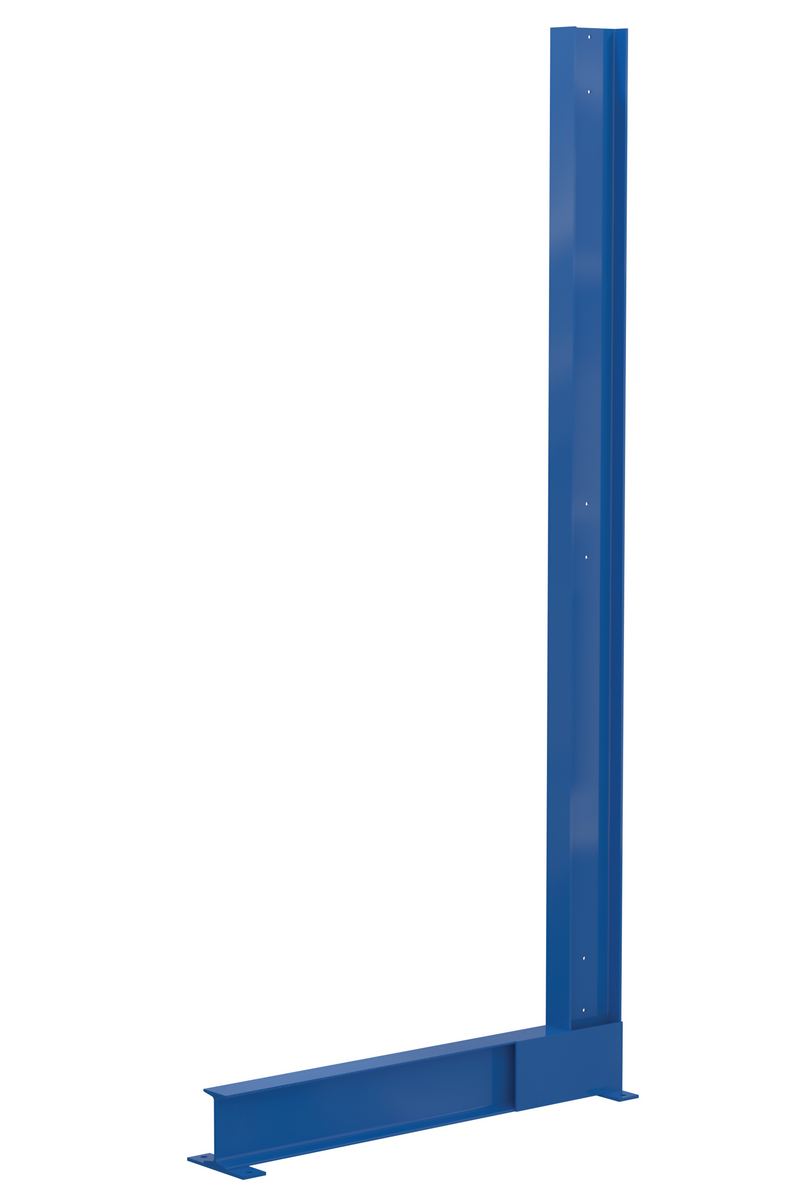

SAC-824

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 6,000
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 6,000
Arm(s) to Use Length (in.): 24

SAC-836

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 36
Uniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 36

SAC-848

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 48
Uniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 48

SSAL-12

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 3,000
Usable Length (in.): 11-5/16
Uniform Capacity Per Arm (lb.): 3,000
Usable Length (in.): 11-5/16

SSAL-12-NL

SSAL-24

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 2,000
Usable Length (in.): 23-5/16
Uniform Capacity Per Arm (lb.): 2,000
Usable Length (in.): 23-5/16

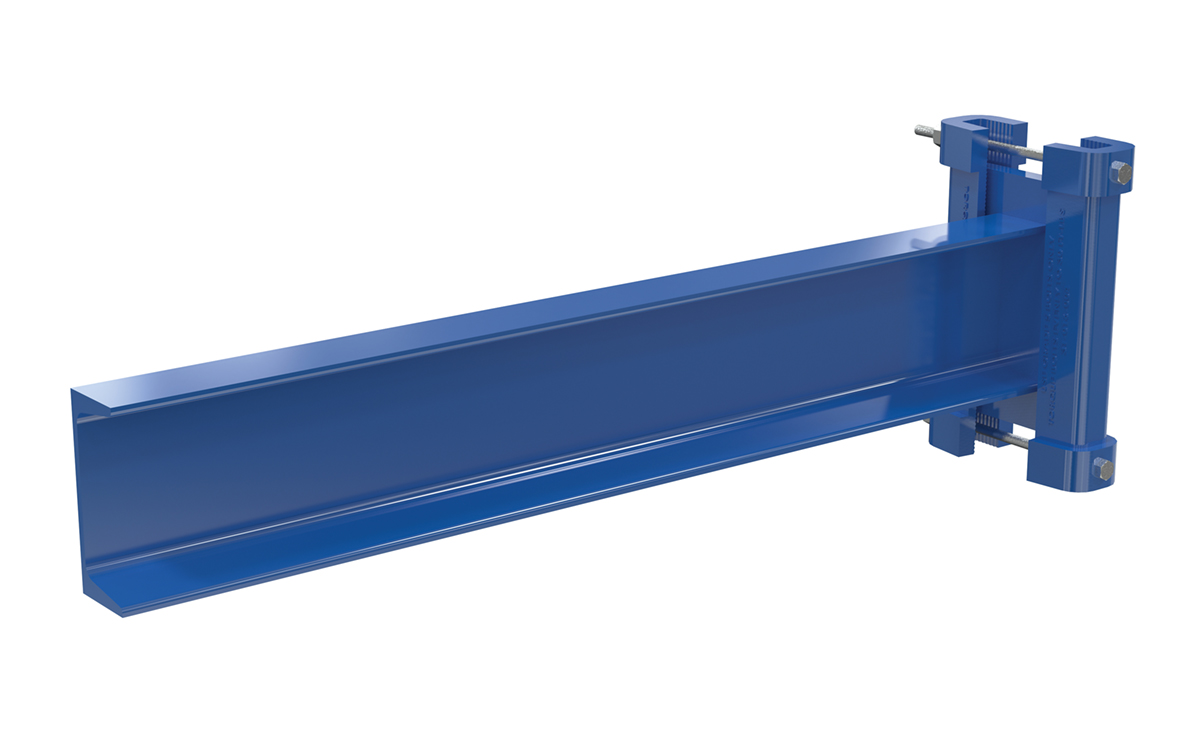

SSAL-24-NL

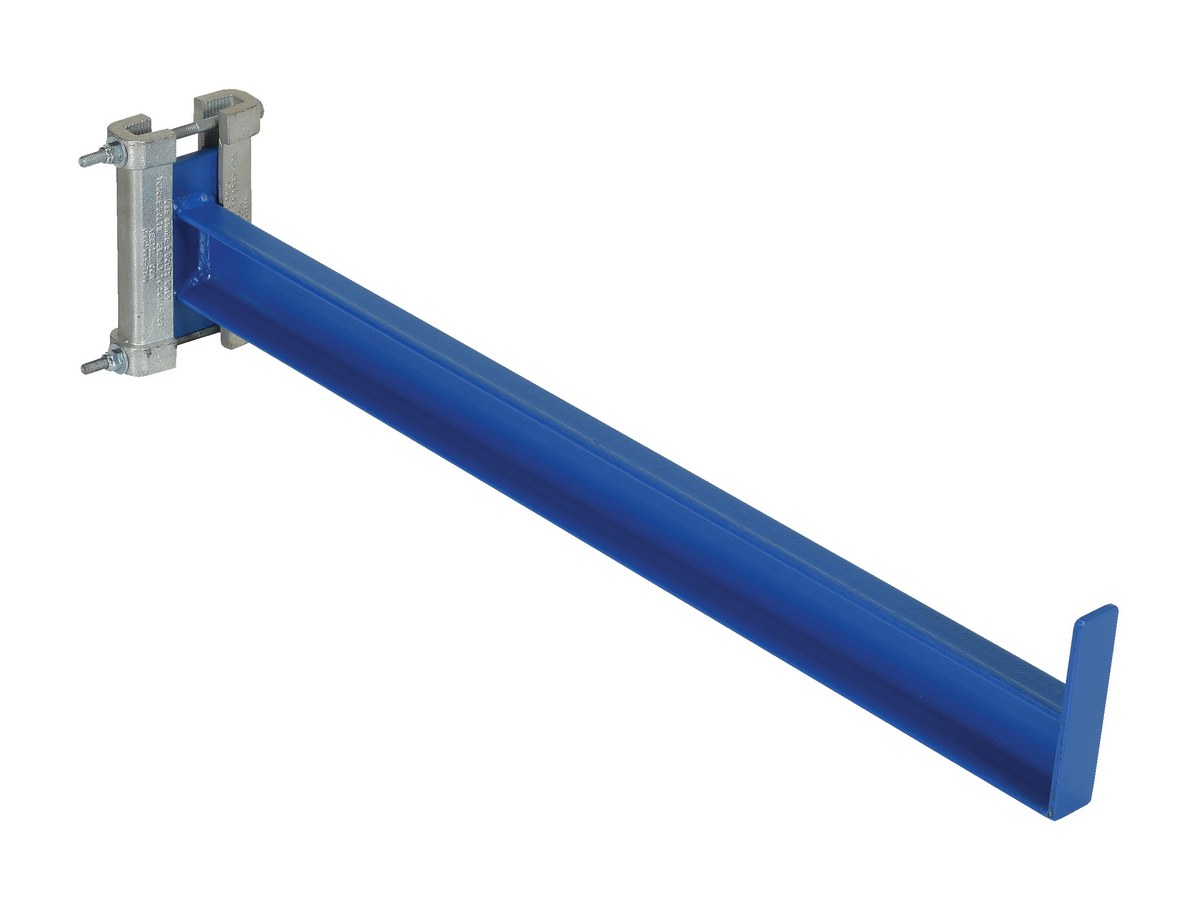

SSAL-36

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,200
Usable Length (in.): 35-5/16
Uniform Capacity Per Arm (lb.): 1,200
Usable Length (in.): 35-5/16

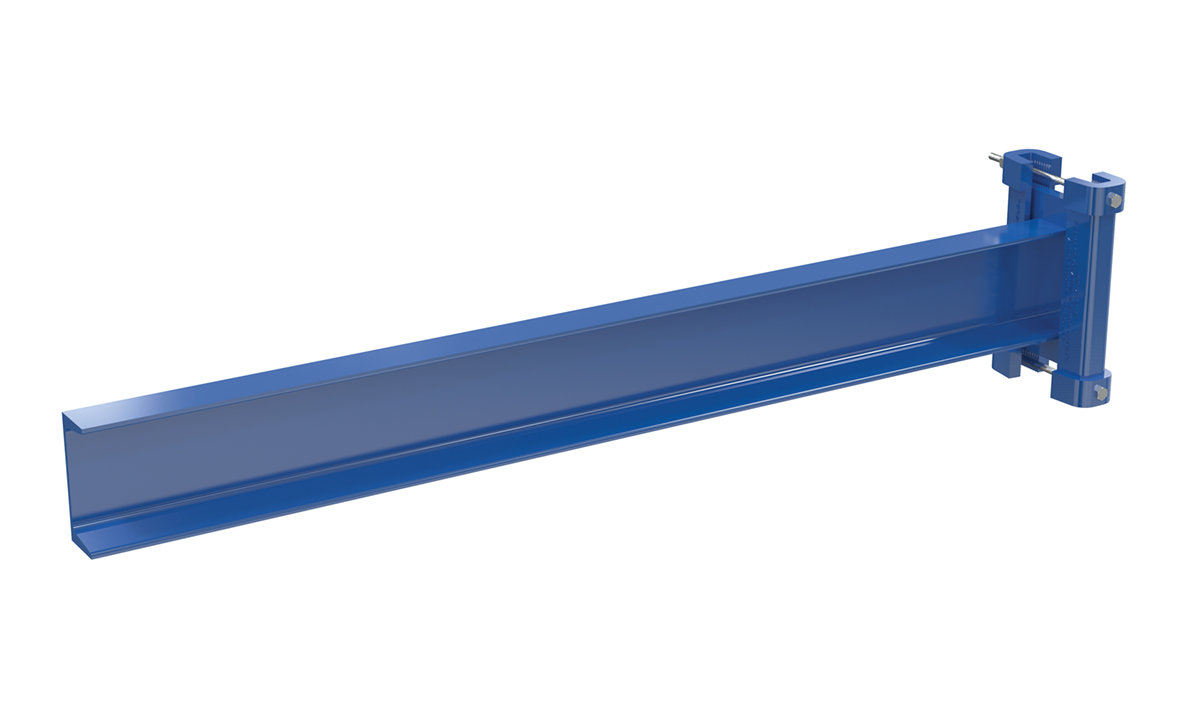

SSAL-36-NL

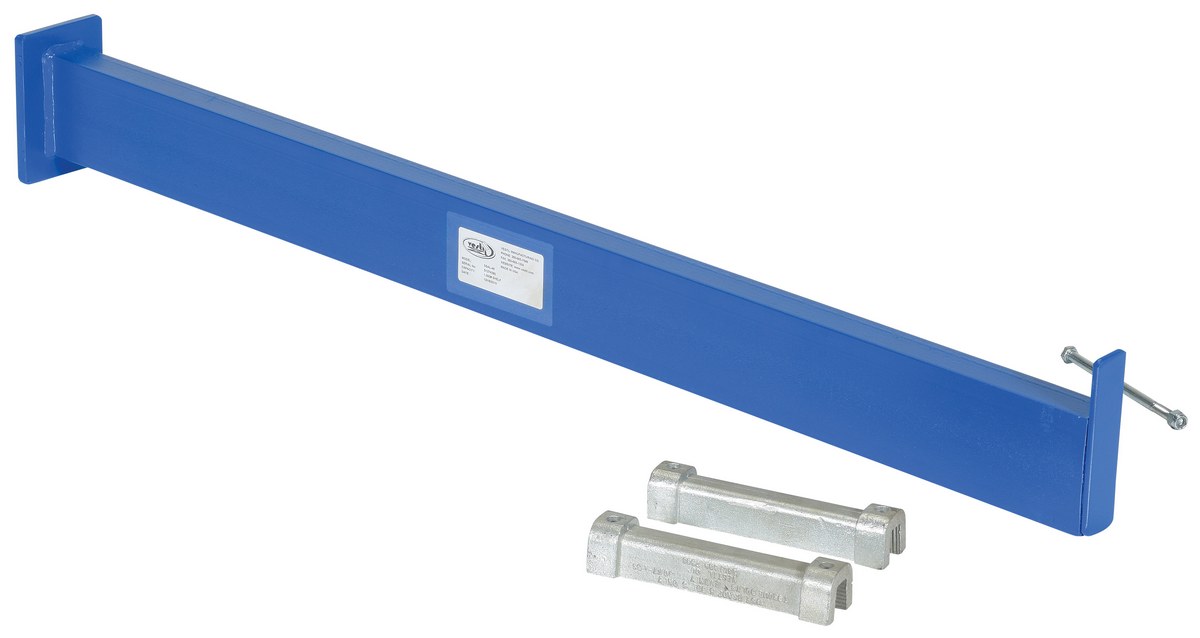

SSAL-48

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,000
Usable Length (in.): 47-5/16
Uniform Capacity Per Arm (lb.): 1,000
Usable Length (in.): 47-5/16

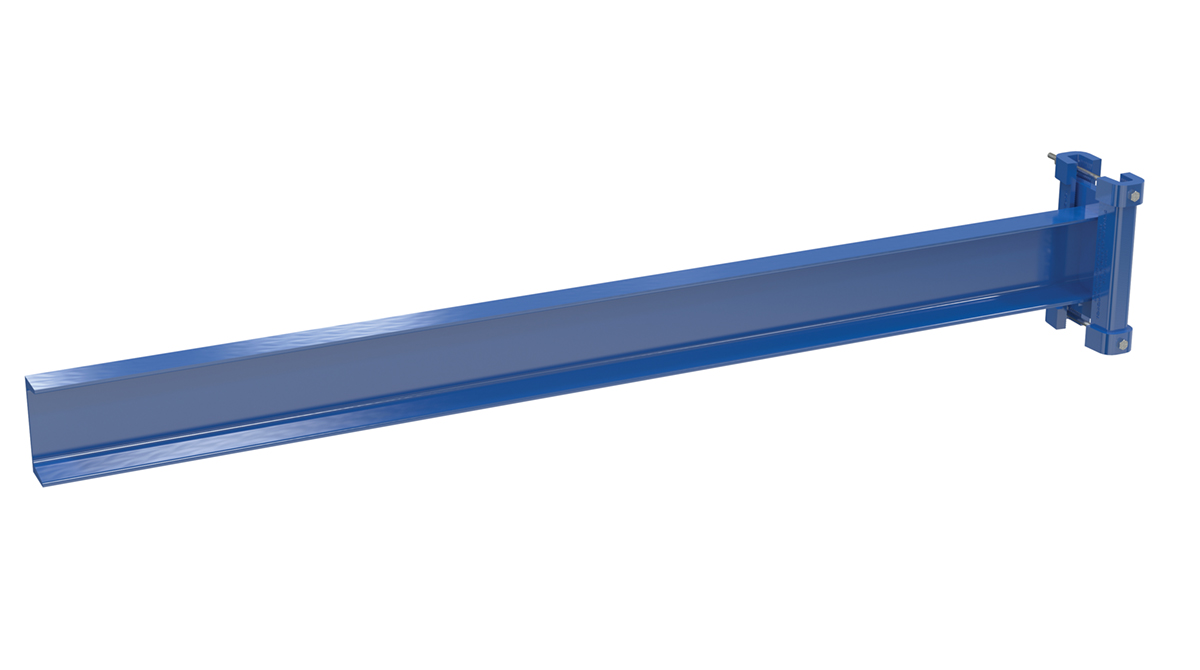

SSAL-48-NL

Structural Cantilever Racking PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

No Survey Sheets For This Product

Approval Drawings

HBS-10123

HBS-10124

HBS-10125

HBS-10126

HBS-83

HBS-84

HBS-85

HBS-86

SAC-1248

SSAL-12

SSAL-12-NL

SSAL-24

SSAL-24-NL

SSAL-36

SSAL-36-NL

SSAL-48

SSAL-48-NL

Testing Certificates

DAC-1012

DAC-1024

DAC-1036

DAC-1212

DAC-1224

DAC-1236

DAC-812

DAC-824

DAC-836

HBS-10123

HBS-10124

HBS-10125

HBS-10126

HBS-83

HBS-84

HBS-85

HBS-86

SAC-1012

SAC-1024

SAC-1036

SAC-1048

SAC-1212

SAC-1224

SAC-1236

SAC-1248

SAC-812

SAC-824

SAC-836

SAC-848

SSAL-12

SSAL-12-NL

SSAL-24

SSAL-24-NL

SSAL-36

SSAL-36-NL

SSAL-48

SSAL-48-NL

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...

Directory Links Of Available PDF's For All Products

Print Friendly

Related or Similar Products:

Product

Cantilever Rack Kits

Product

Galvanized Cantilever Rack Kits

Product

Standard-Duty Cantilever Racking

Product

Medium-Duty Cantilever Racking

Product

Heavy-Duty Cantilever Racking

Product

Cantilever Carts

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date

Structural Cantilever Racking

Model #	Description	Attributes	Net Wt. (lbs)
DAC-1012	Steel Double-Sided Cantilever Upright 12 In. Usable Arms 10 Ft. High 26500 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 26500 Component: Double-Sided Upright	316
DAC-1024	Steel Double-Sided Cantilever Upright 24 In. Usable Arms 10 Ft. High 16600 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 16600 Component: Double-Sided Upright	350
DAC-1036	Steel Double-Sided Cantilever Upright 36 In. Usable Arms 10 Ft. High 12250 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 12250 Component: Double-Sided Upright	365
DAC-1212	Steel Double-Sided Cantilever Upright 12 In. Usable Arms 12 Ft. High 26600 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 26600 Component: Double-Sided Upright	357
DAC-1224	Steel Double-Sided Cantilever Upright 24 In. Usable Arms 12 Ft. High 16500 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 16500 Component: Double-Sided Upright	386
DAC-1236	Steel Double-Sided Cantilever Upright 36 In. Usable Arms 12 Ft. High 12250 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 12250 Component: Double-Sided Upright	405
DAC-812	Steel Double-Sided Cantilever Upright 12 In. Usable Arms 8 Ft. High 18000 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 18000 Component: Double-Sided Upright	242
DAC-824	Steel Double-Sided Cantilever Upright 24 In. Usable Arms 8 Ft. High 12000 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 12000 Component: Double-Sided Upright	271
DAC-836	Steel Double-Sided Cantilever Upright 36 In. Usable Arms 8 Ft. High 9200 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 9200 Component: Double-Sided Upright	290
HBS-10123	Steel Structural Cantilever Brace Set 36 In. x 144 In. Blue	Component: Brace Set Column Height (in.): 120 & 144	84
HBS-10124	Steel Structural Cantilever Brace Set 48 In. x 144 In. Blue	Component: Brace Set Column Height (in.): 120 & 144	92
HBS-10125	Steel Structural Cantilever Brace Set 60 In. x 144 In. Blue	Component: Brace Set Column Height (in.): 120 & 144	102
HBS-10126	Steel Structural Cantilever Brace Set 72 In. x 144 In. Blue	Component: Brace Set Column Height (in.): 120 & 144	111
HBS-83	Steel Structural Cantilever Brace Set 36 In. x 96 In. Blue	Component: Brace Set Column Height (in.): 96	21
HBS-84	Steel Structural Cantilever Brace Set 48 In. x 96 In. Blue	Component: Brace Set Column Height (in.): 96	30
HBS-85	Steel Structural Cantilever Brace Set 60 In. x 96 In. Blue	Component: Brace Set Column Height (in.): 96	36
HBS-86	Steel Structural Cantilever Brace Set 72 In. x 96 In. Blue	Component: Brace Set Column Height (in.): 96	41
SAC-1012	Steel Single Sided Cantilever Upright 20 In. x 10 In. x 120 In. 13,250 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 13,250 Arm(s) to Use Length (in.): 12	285
SAC-1024	Steel Single Sided Cantilever Upright 32 In. x 20 In. x 120 In. 8,300 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 8,300 Arm(s) to Use Length (in.): 24	294
SAC-1036	Steel Single Sided Cantilever Upright 44 In. x 10 In. x 120 In. 6,125 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 6,125 Arm(s) to Use Length (in.): 36	317
SAC-1048	Steel Single Sided Cantilever Upright 56 In. x 10 In. x 120 In. 4,750 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 4,750 Arm(s) to Use Length (in.): 48	329
SAC-1212	Steel Single Sided Cantilever Upright 20 In. x 10 In. x 144 In. 13,300 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 13,300 Arm(s) to Use Length (in.): 12	325
SAC-1224	Steel Single Sided Cantilever Upright 32 In. x 10 In. x 144 In. 8,250 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 8,250 Arm(s) to Use Length (in.): 24	335
SAC-1236	Steel Single Sided Cantilever Upright 44 In. x 10 In. x 144 In. 6,125 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 6,125 Arm(s) to Use Length (in.): 36	358
SAC-1248	Steel Single Sided Cantilever Upright 56 In. x 10 In. x 144 In. 4,750 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 4,750 Arm(s) to Use Length (in.): 48	369
SAC-812	Steel Single Sided Cantilever Upright 20 In. x 10 In. x 96 In. 9,000 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 9,000 Arm(s) to Use Length (in.): 12	220
SAC-824	Steel Single Sided Cantilever Upright 32 In. x 10 In. x 96 In. 6,000 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 6,000 Arm(s) to Use Length (in.): 24	229
SAC-836	Steel Single Sided Cantilever Upright 44 In. x 10 In. x 96 In. 4,600 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 4,600 Arm(s) to Use Length (in.): 36	243
SAC-848	Steel Single Sided Cantilever Upright 56 In. x 10 In. x 96 In. 3,800 Lb. Capacity Blue	Uniform Capacity per Upright (lb.): 3,800 Arm(s) to Use Length (in.): 48	265
SSAL-12	Steel Cantilever Straight Arm with 2 In. Lip 12 In. Length 3,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 3,000 Usable Length (in.): 11-5/16	11
SSAL-12-NL	Steel Cantilever Straight Arm No Lip 12 In. Length 3,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 3,000 Usable Length (in.): 11-5/16	11
SSAL-24	Steel Cantilever Straight Arm with 2 In. Lip 24 In. Length 2,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 2,000 Usable Length (in.): 23-5/16	15
SSAL-24-NL	Steel Cantilever Straight Arm No Lip 24 In. Length 2,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 2,000 Usable Length (in.): 23-5/16	15
SSAL-36	Steel Cantilever Straight Arm with 2 In. Lip 36 In. Length 1,200 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 1,200 Usable Length (in.): 35-5/16	20
SSAL-36-NL	Steel Cantilever Straight Arm No Lip 36 In. Length 1,200 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 1,200 Usable Length (in.): 35-5/16	20
SSAL-48	Steel Cantilever Straight Arm with 2 In. Lip 48 In. Length 1,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 1,000 Usable Length (in.): 47-5/16	24
SSAL-48-NL	Steel Cantilever Straight Arm No Lip 48 In. Length 1,000 Lb. Capacity Blue	Uniform Capacity Per Arm (lb.): 1,000 Usable Length (in.): 47-5/16	24

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

Structural Cantilever Racking

Structural Cantilever Racking

Featured Storage Solutions

Product Family Overview

Other Various Racking

Additional Models In This Family view entire Image Gallery

Model Specific Details

Manuals

Survey Sheets

Approval Drawings

Testing Certificates

SDS Sheets

Other PDF's

Directory Links Of Available PDF's For All Products

Freight Quote

Parts Request

Ask An Expert

Find A Distributor

PROP 65 Warning

Related or Similar Products:

Cantilever Rack Kits

Galvanized Cantilever Rack Kits

Standard-Duty Cantilever Racking

Medium-Duty Cantilever Racking

Heavy-Duty Cantilever Racking

Cantilever Carts

Structural Cantilever Racking

Our Customer Service Associates Are Here To Assist You!Call Vestil At 260-665-7586 Or info@vestil.com

Additional Models In This Family
view entire Image Gallery

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
