Product Family Overview


Electric Hydraulic Trash Can Dumpers
SERIES: TCD-M

Trash Can Dumpers are designed so one person can easily dump contents of trash cans. Available in DC, or AC powered operation with hand control. DC powered units include one (1) 12V battery and an on-board battery charger, battery charge indicator gauge are standard. Heavy-duty steel construction with 8" x 2" glass filled casters. Two rigid and two swivel casters for portability. Two adjustable floor locks are also included. Maximum dump angle is 135 degrees. Works with models # TH-32/64/95 (without foot lid lifter features) trash cans or approved equal.

  • Simple design easily dumps contents out of trash can
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last

TH-95-BLU
Check Out Our TH series Trash Cans

Trash Can Dumpers are designed so one person can easily dump contents of trash cans. Available in DC, or AC powered operation with hand control. DC powered units include one (1) 12V battery and an on-board battery charger, battery charge indicator gauge are standard. Heavy-duty steel construction with 8" x 2" glass filled casters. Two rigid and two swivel casters for portability. Two adjustable floor locks are also included. Maximum dump angle is 135 degrees. Works with models # TH-32/64/95 (without foot lid lifter features) trash cans or approved equal.

  • Simple design easily dumps contents out of trash can
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last

TH-95-BLU
Check Out Our TH series Trash Cans

Additional Models In This Family

TCD-M-60-AC

model TCD-M-60-AC

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

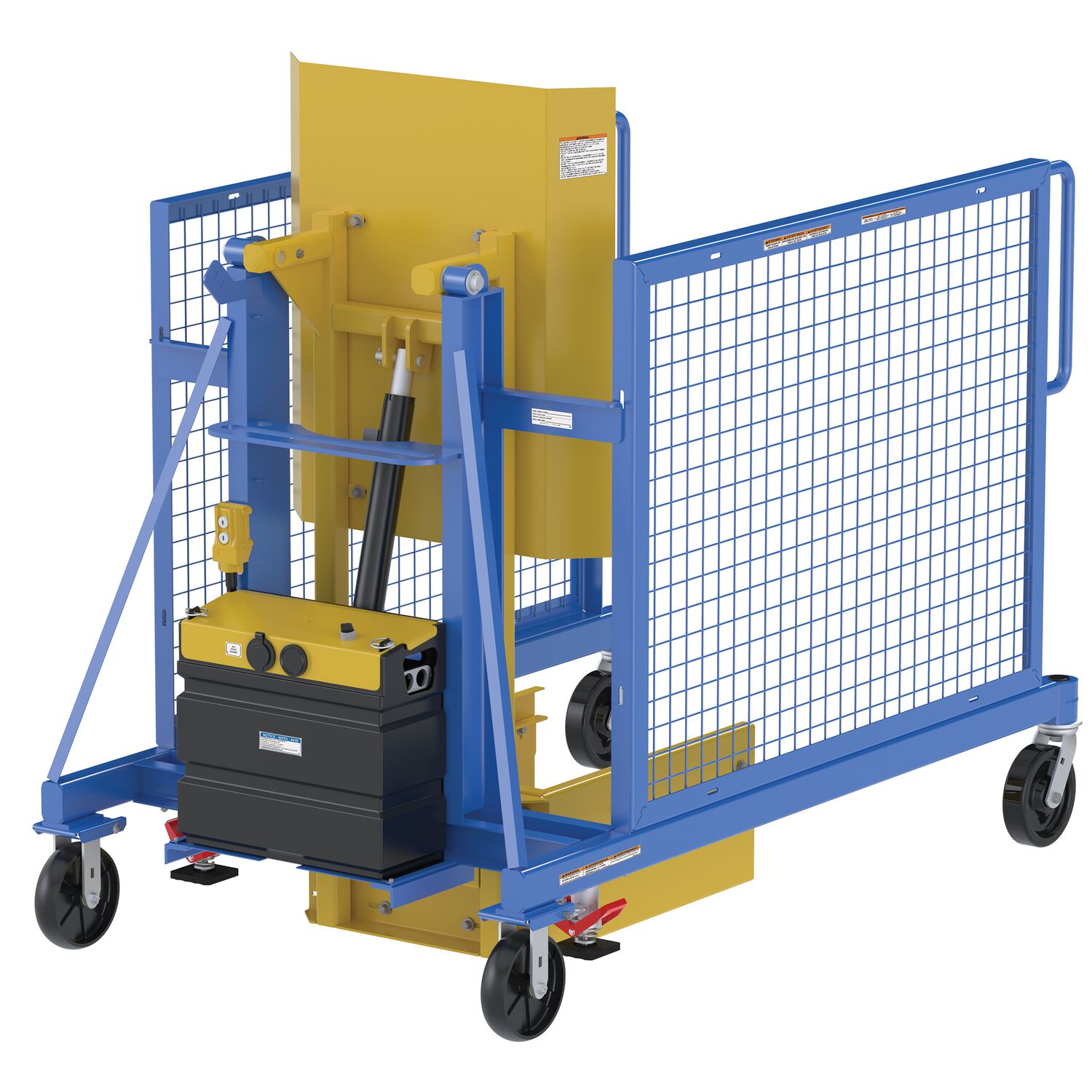

TCD-M-48-AC
TCD-M-48-AC1 Year Limited WarrantySteel AC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-3/4
703
TCD-M-48-DC TCD-M-48-DC1 Year Limited WarrantySteel DC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-3/4
763

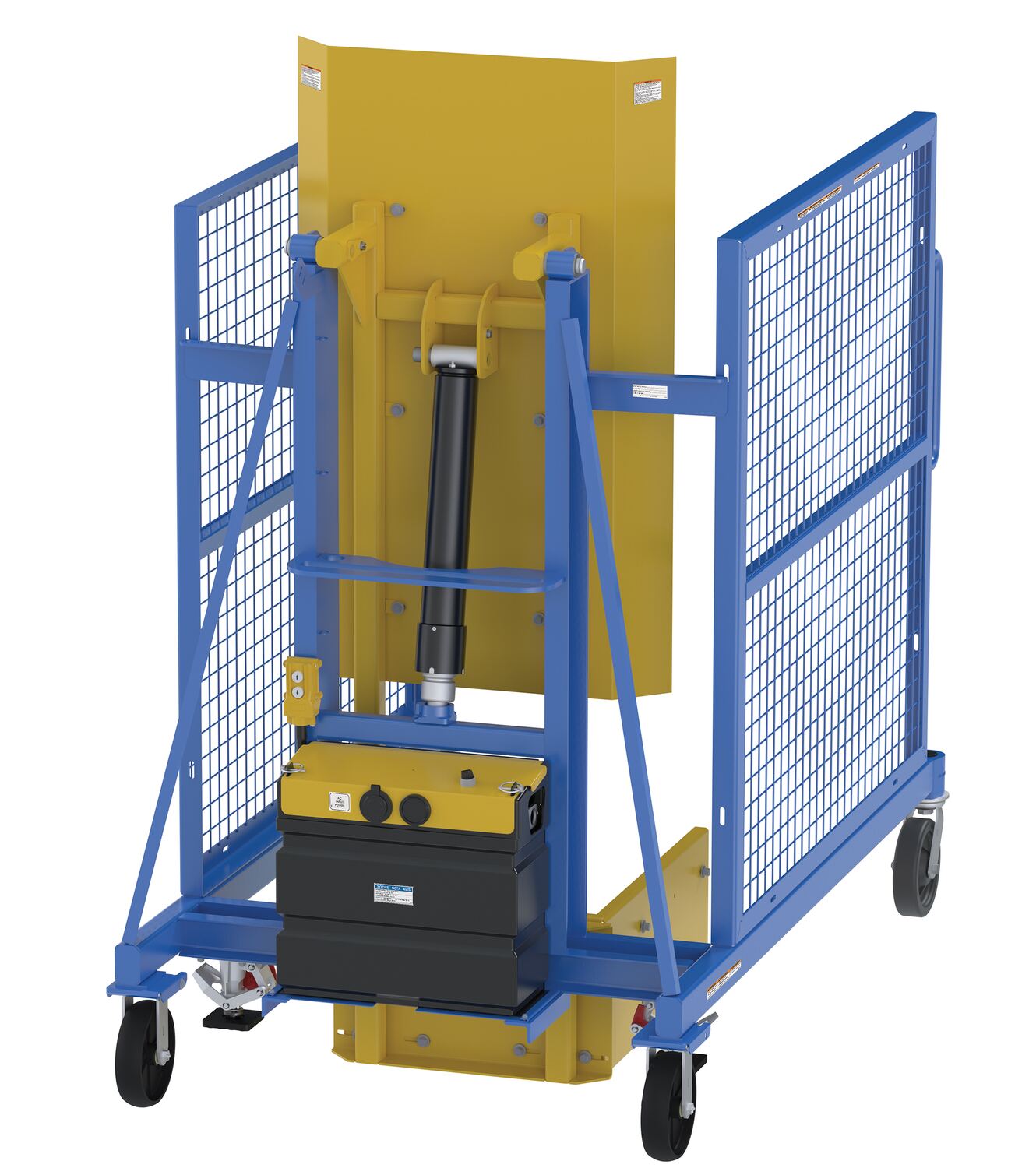

TCD-M-60-AC
TCD-M-60-AC1 Year Limited WarrantySteel AC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 60-3/8
755

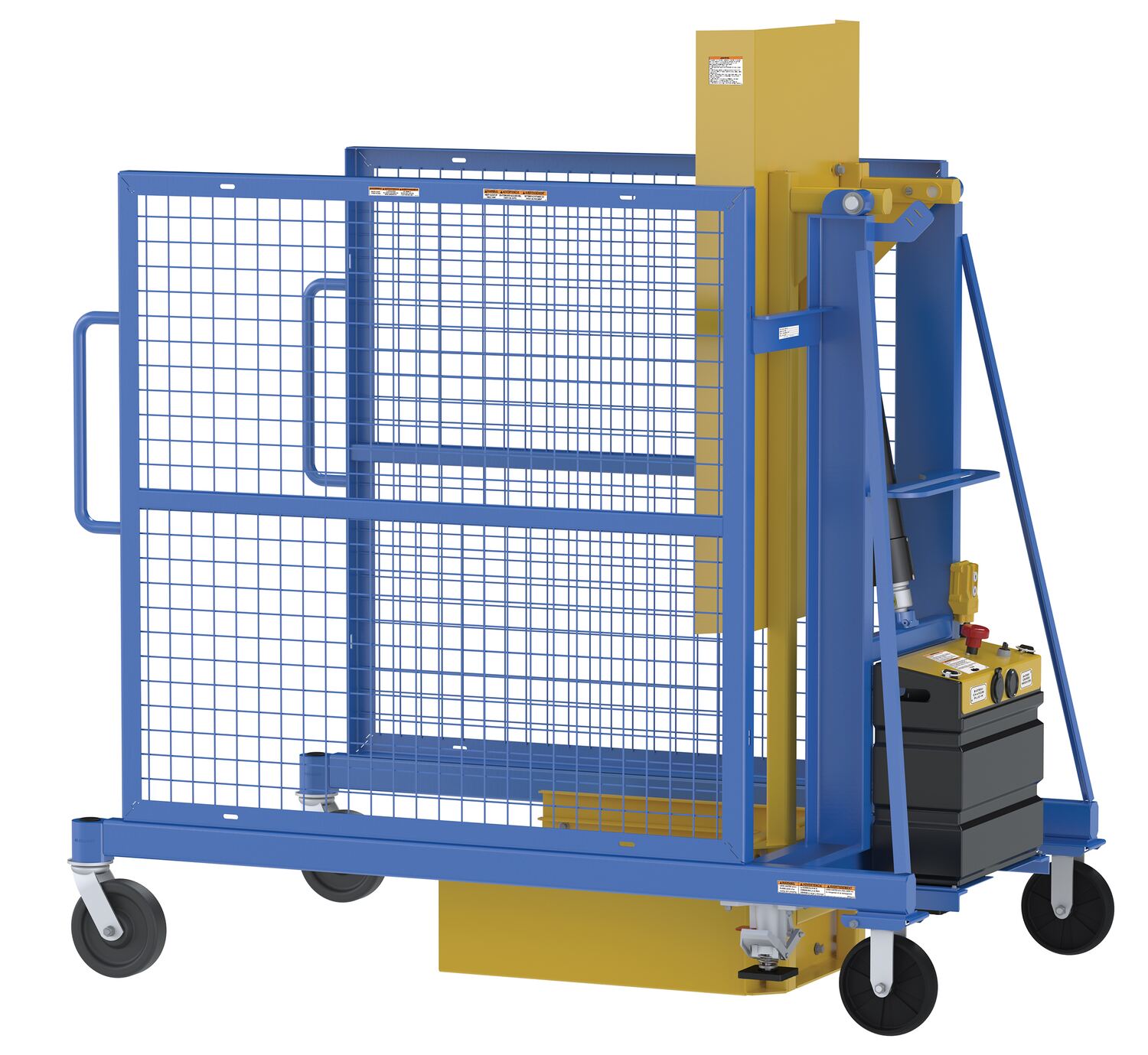

TCD-M-60-DC TCD-M-60-DC1 Year Limited WarrantySteel DC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 60-3/8
773

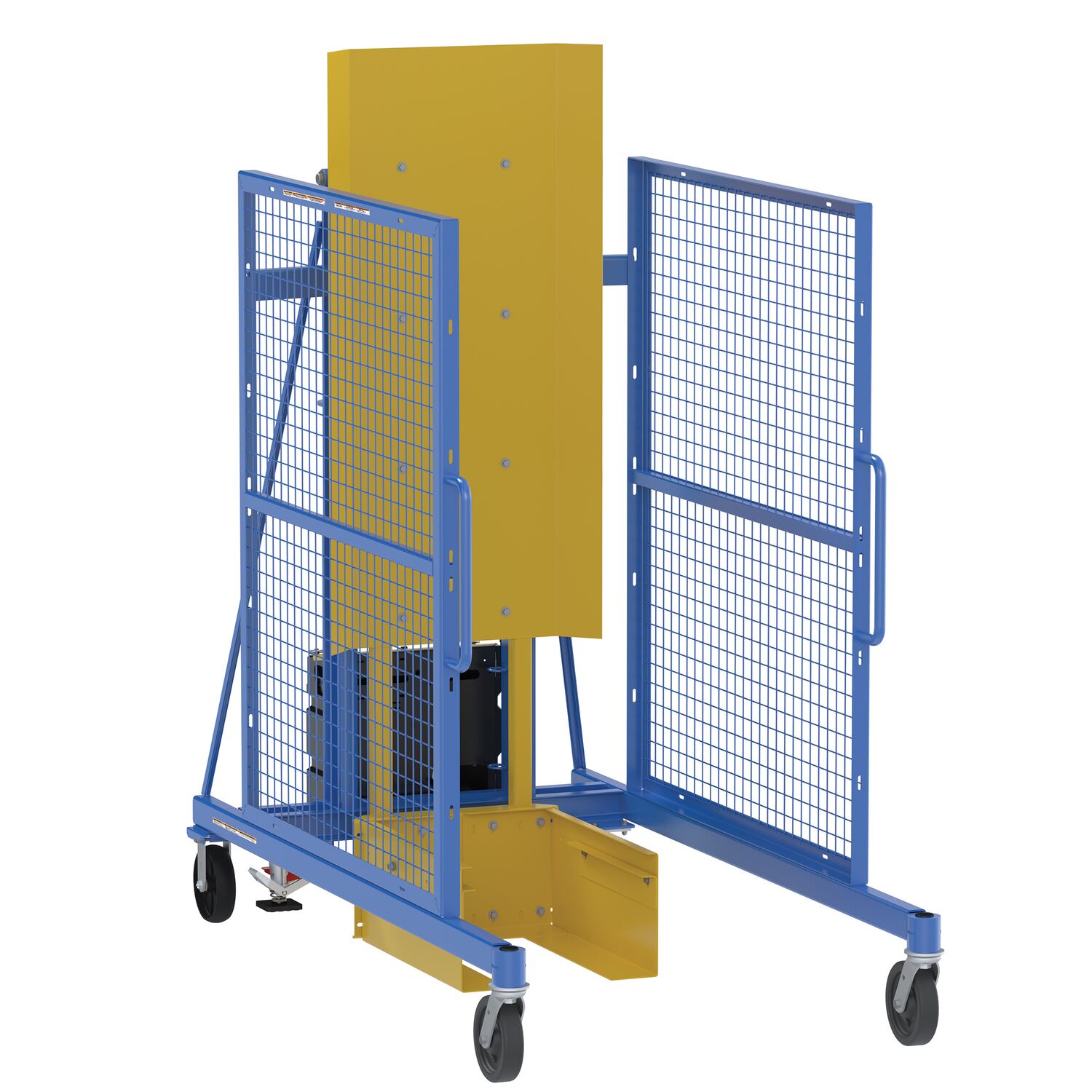

TCD-M-72-AC
TCD-M-72-AC1 Year Limited WarrantySteel AC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 72-3/8
766

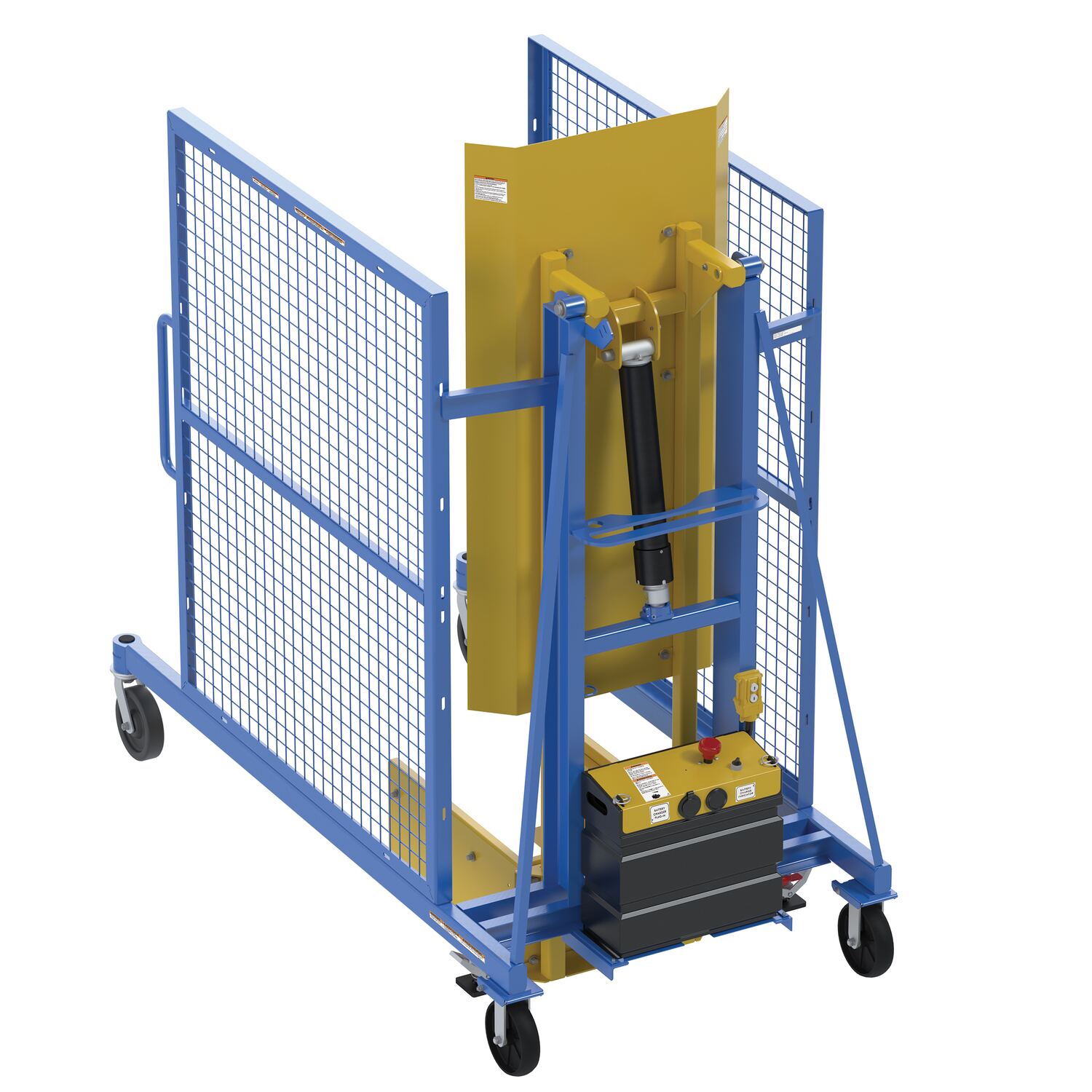

TCD-M-72-DC TCD-M-72-DC1 Year Limited WarrantySteel DC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 72-3/8
880

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

TCD-M-48-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-3/4
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-3/4

TCD-M-48-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-3/4
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-3/4

TCD-M-60-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 60-3/8
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 60-3/8

TCD-M-60-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 60-3/8
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 60-3/8

TCD-M-72-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 72-3/8
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 72-3/8

TCD-M-72-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 72-3/8
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 72-3/8
For More Details of the Option Click the Red Model Button
HCP-2642 HCP-2642 Optional Hand Control Pedestal
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Electric Hydraulic Trash Can Dumpers PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


TCD-M-48-AC

TCD-M-48-DC

TCD-M-60-AC

TCD-M-60-DC

TCD-M-72-AC

TCD-M-72-DC

SDS Sheets

Hydraulic Oil SDS Sheet for: TCD-M-48-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-M-48-DC
Hydraulic Oil SDS Sheet for: TCD-M-48-DC
Hydraulic Oil SDS Sheet for: TCD-M-60-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-M-60-DC
Hydraulic Oil SDS Sheet for: TCD-M-60-DC
Hydraulic Oil SDS Sheet for: TCD-M-72-AC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-M-72-DC
Hydraulic Oil SDS Sheet for: TCD-M-72-DC

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Electric Hydraulic Trash Can D...




Trash Can Dumpers are designed so one person can easily dump contents of trash cans. Available in DC, or AC powered operation with hand control. DC powered units include one (1) 12V battery and an on-board battery charger, battery charge indicator gauge are standard. Heavy-duty steel construction with 8" x 2" glass filled casters. Two rigid and two swivel casters for portability. Two adjustable floor locks are also included. Maximum dump angle is 135 degrees. Works with models # TH-32/64/95 (without foot lid lifter features) trash cans or approved equal.

  • Simple design easily dumps contents out of trash can
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last

TH-95-BLU
Check Out Our TH series Trash Cans



Model # Description Attributes Net Wt.
(lbs)
TCD-M-48-AC TCD-M-48-ACSteel AC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-3/4
703
TCD-M-48-DC TCD-M-48-DCSteel DC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-3/4
763
TCD-M-60-AC TCD-M-60-ACSteel AC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 60-3/8
755
TCD-M-60-DC TCD-M-60-DCSteel DC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 60-3/8
773
TCD-M-72-AC TCD-M-72-ACSteel AC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 72-3/8
766
TCD-M-72-DC TCD-M-72-DCSteel DC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 72-3/8
880

Options


HCP-2642 HCP-2642 Optional Hand Control Pedestal
