Long Deck Carts

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

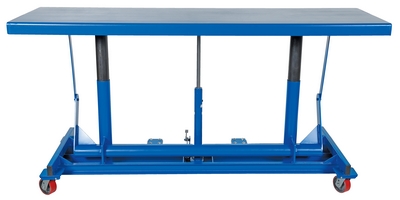

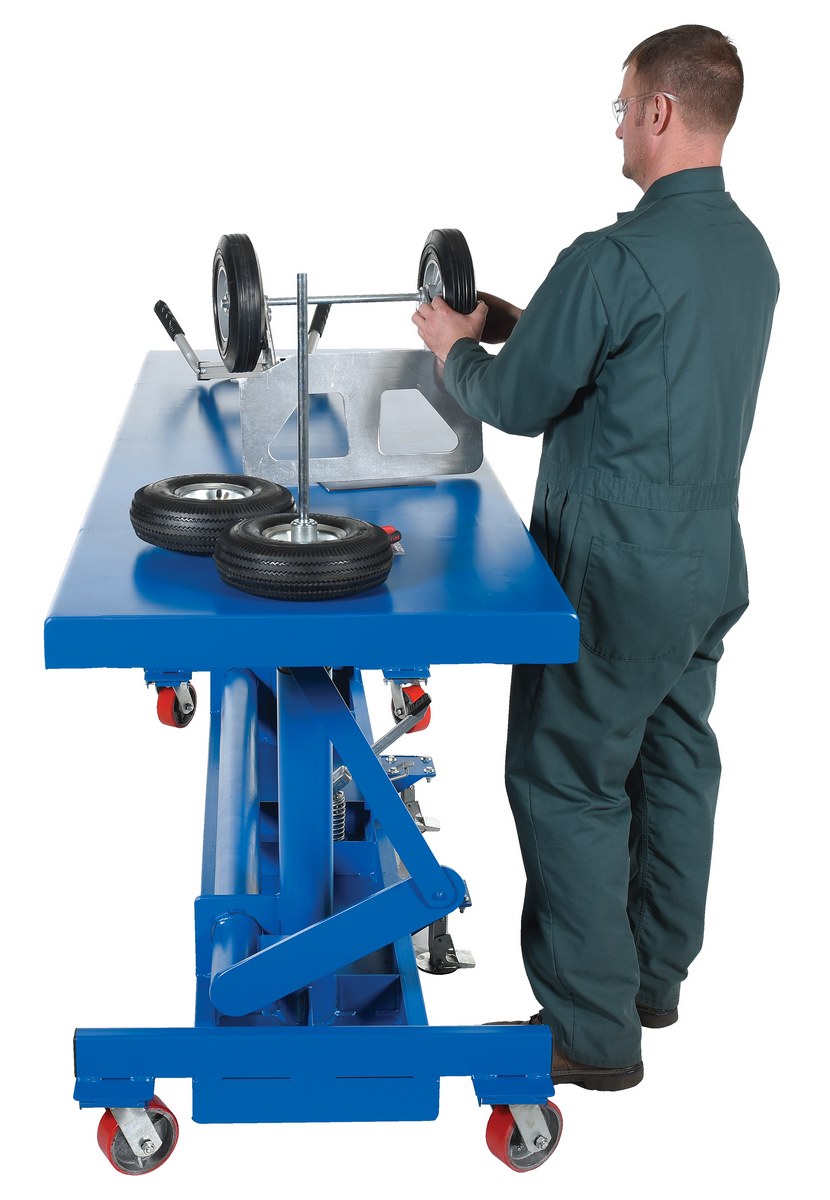

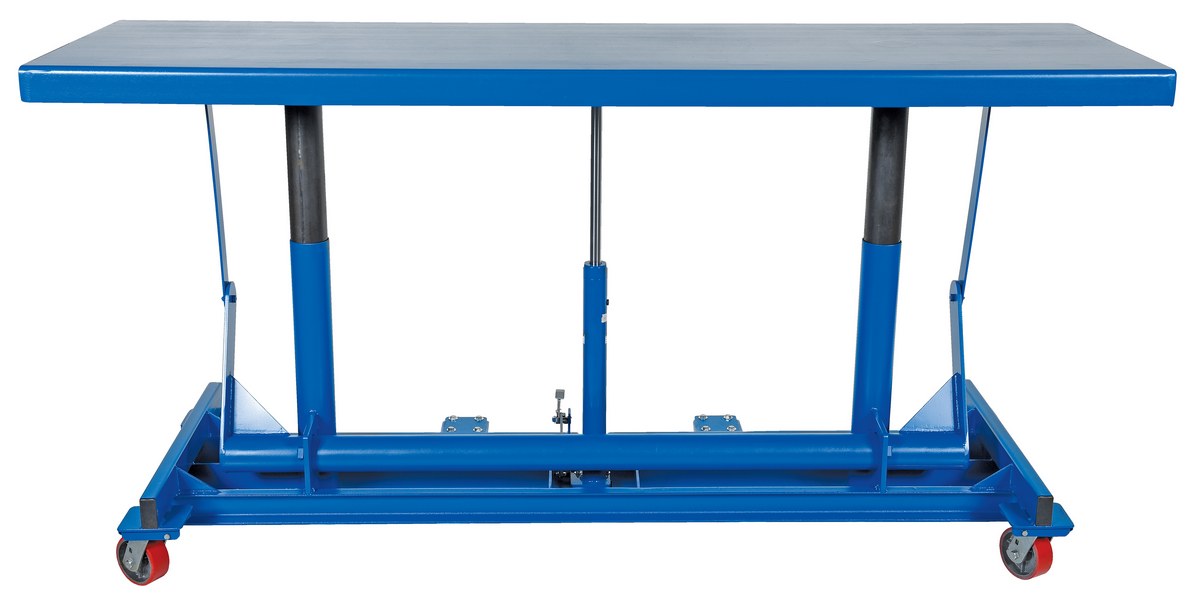

LDLT-3096_E.jpg LDLT-3096_F.jpg LDLT-3096_A.jpg LDLT-3096_B.jpg

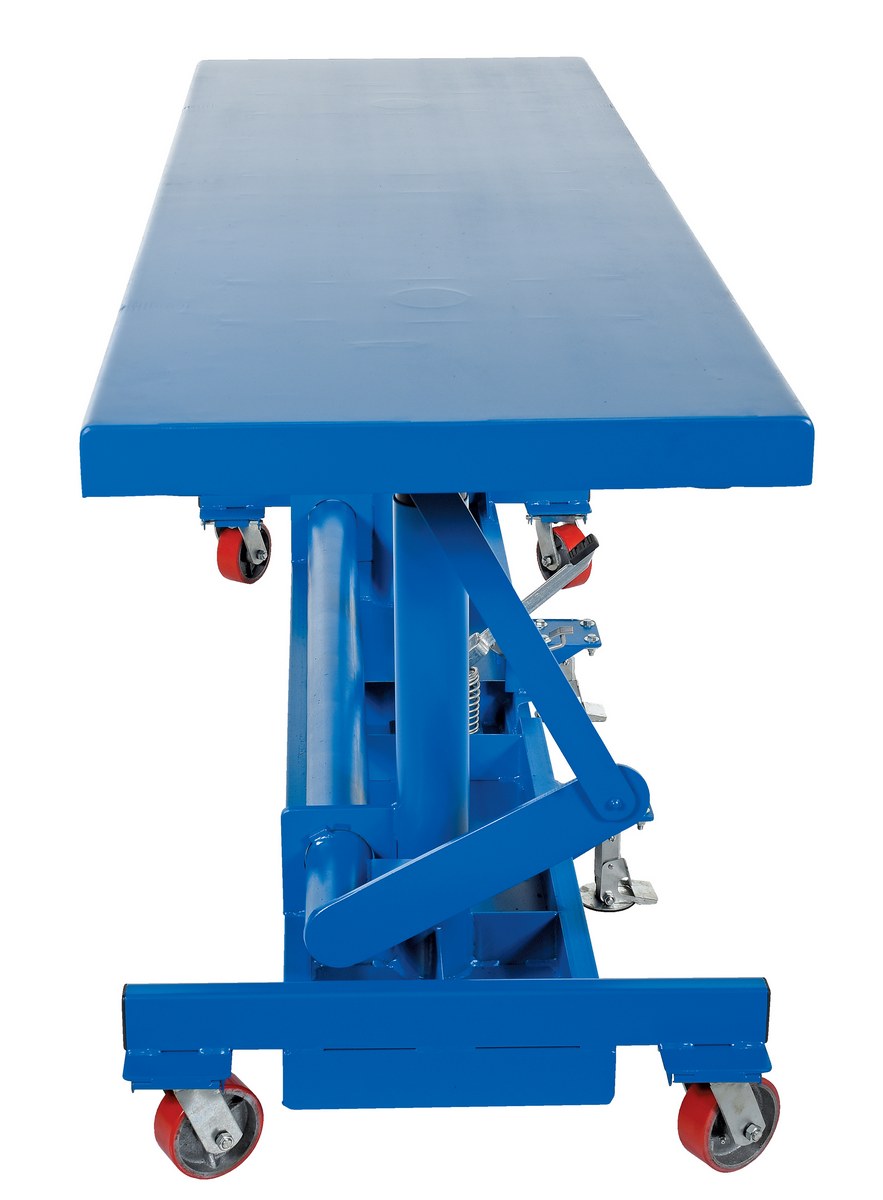

LDLT-3096_C.jpg LDLT-3096_D.jpg

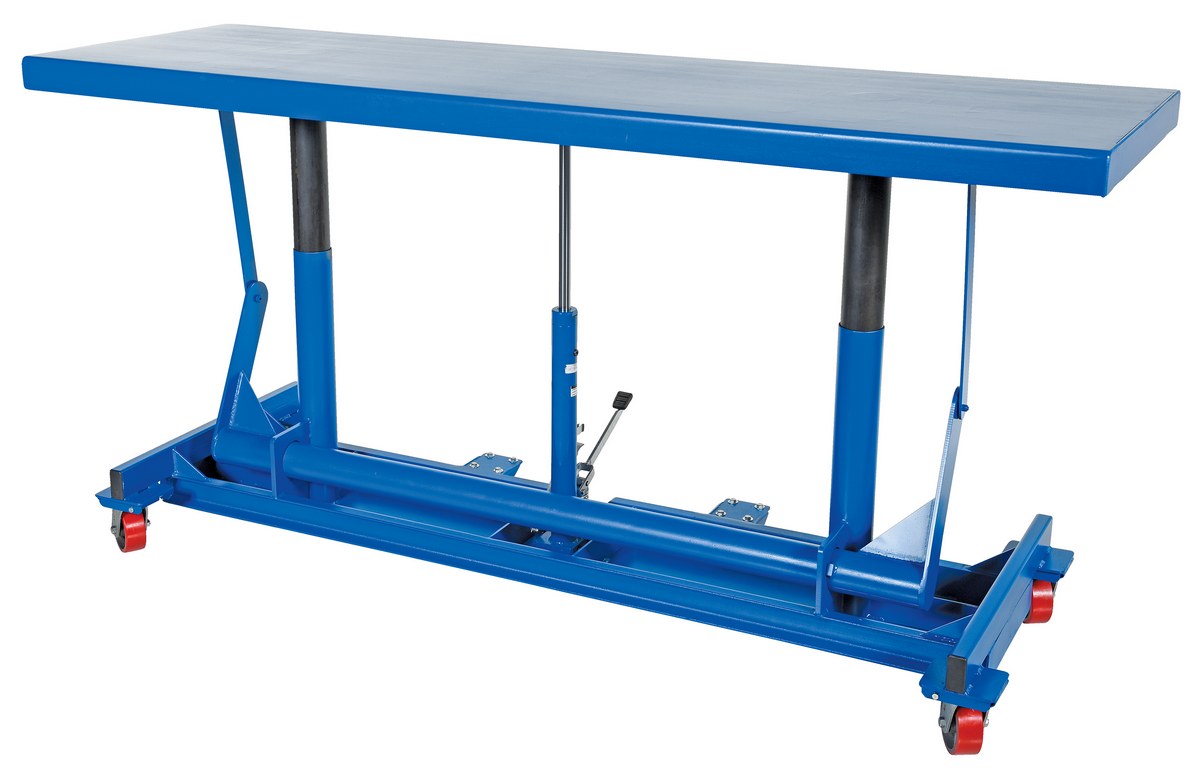

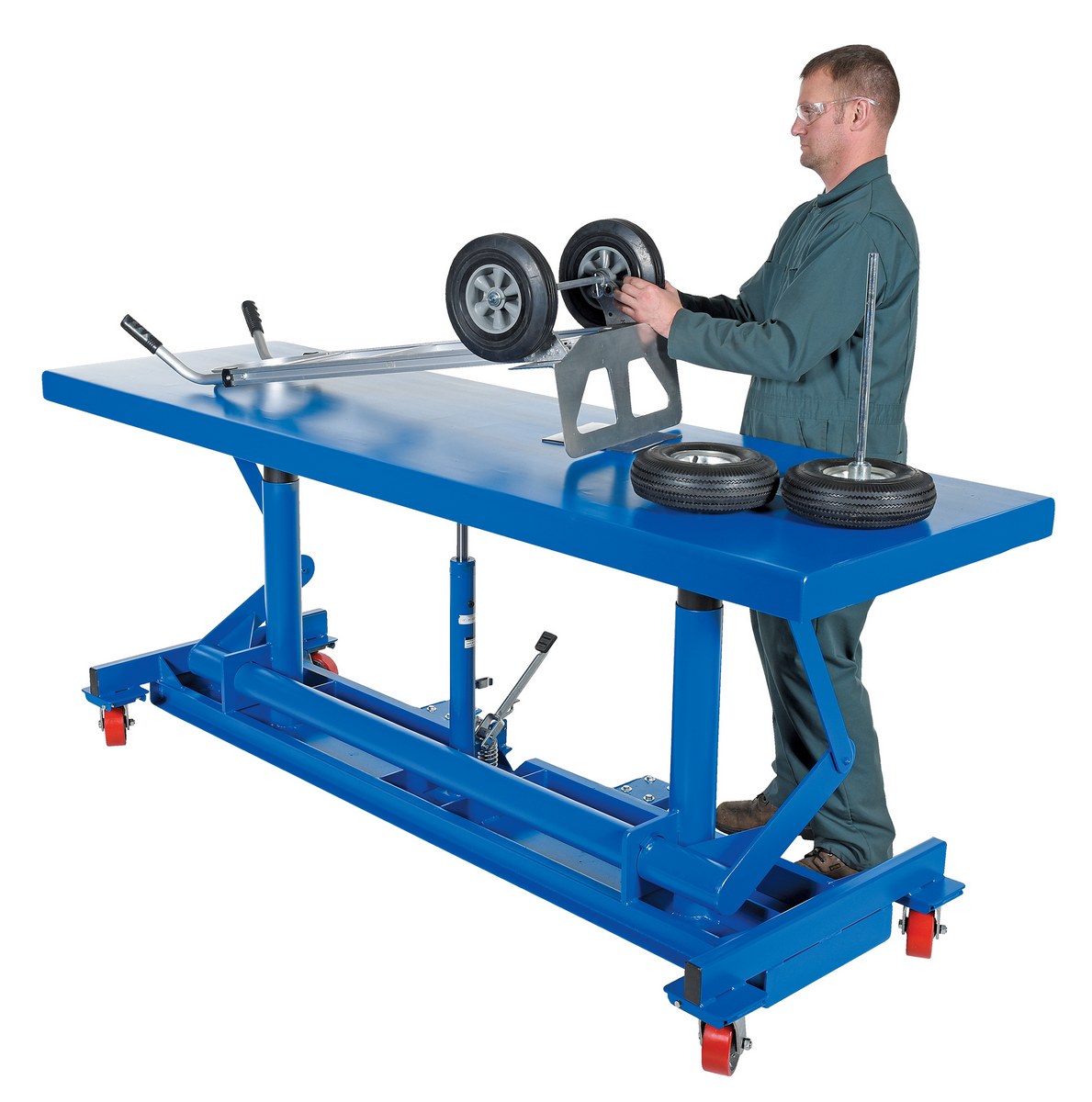

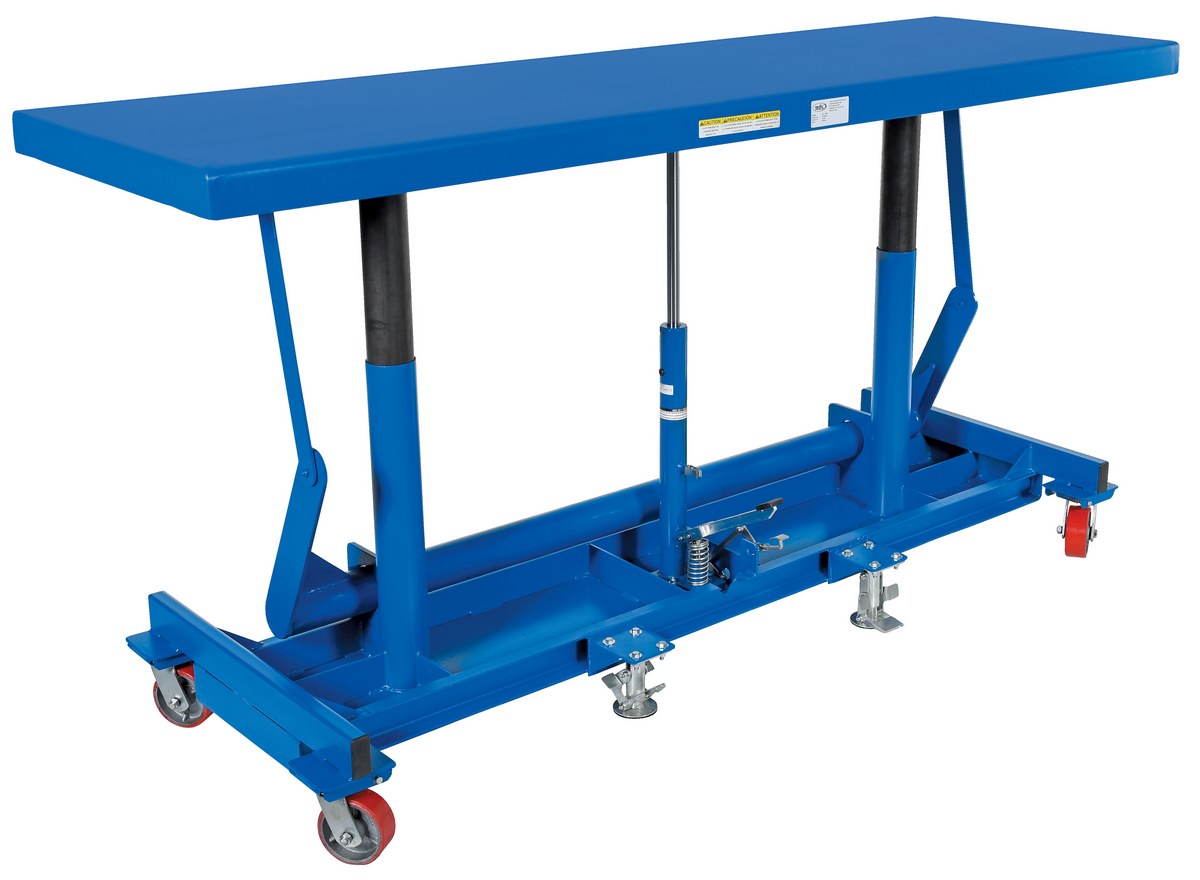

Long Deck Carts

model: LDLT-3096



Featured Ergonomic Solutions


Pallet Master Single Fork
Hydraulic Motorcycle Lift
Battery Transfer Platforms
Adjustable Height Work Stand
Pallet Trucks (Pallet Jacks)
Ergonomic Lumbar Support Stand
Super Low Profile Pallet Trucks
Linear Actuated Mobile Tilting Work Table
Air Hydraulic Carts
model chart

Product Family Overview

Print Friendly
Long Deck Carts
SERIES: LDLT

The Long Deck Cart is perfect for sheet and strip handling, ergonomic load positioning, and handling long awkward material loads. Platform height is adjusted with manual hydraulic foot pump. Structural steel base helps to distribute the load evenly. Unit comes standard with (4) swivel 5" x 2" poly-on-steel casters and dual floor locks. (1/4" thick deck)

All Models are available with Power Options:

  • AC Power:115, 208-230, 460V -- 1 or 3 phase, MODEL LDLT-AC
  • DC Power: one (1) 12V battery, a battery charger and indicator, Model LDLT-DC
  • Reciprocating Air/Oil Power with Foot Treadle Control, Model LDLT-RECIPR
  • Rotary Air/Oil Power with Muffler and Hand Control, Model LDLT-AIR

The Long Deck Cart is perfect for sheet and strip handling, ergonomic load positioning, and handling long awkward material loads. Platform height is adjusted with manual hydraulic foot pump. Structural steel base helps to distribute the load evenly. Unit comes standard with (4) swivel 5" x 2" poly-on-steel casters and dual floor locks. (1/4" thick deck)

All Models are available with Power Options:

  • AC Power:115, 208-230, 460V -- 1 or 3 phase, MODEL LDLT-AC
  • DC Power: one (1) 12V battery, a battery charger and indicator, Model LDLT-DC
  • Reciprocating Air/Oil Power with Foot Treadle Control, Model LDLT-RECIPR
  • Rotary Air/Oil Power with Muffler and Hand Control, Model LDLT-AIR

Other Post Tables

 Die Tables Hydraulic Post Tables w/ Rounded Tops Battery Transfer Platforms Long Deck Carts

Additional Models In This Family
view entire Image Gallery

LDLT-3072

model LDLT-3072

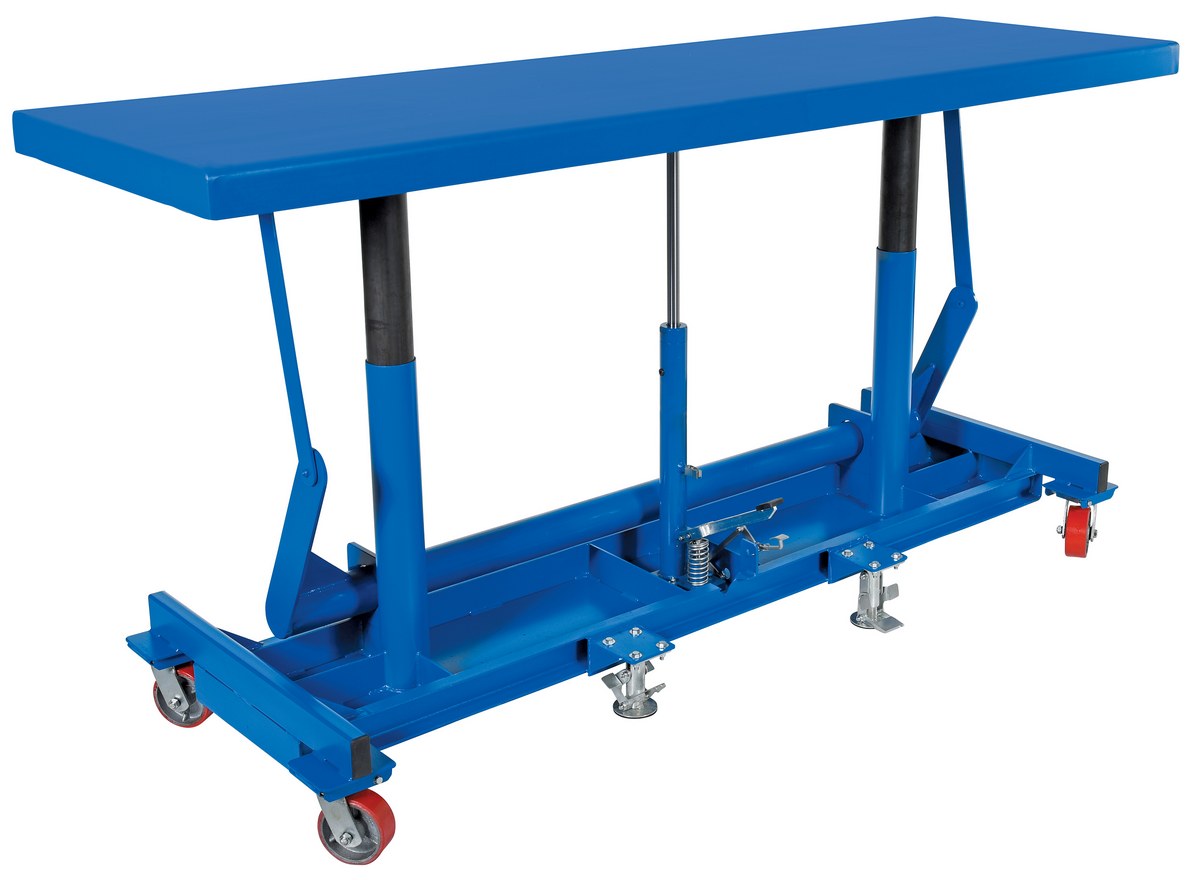

LDLT-3096-4

model LDLT-3096-4

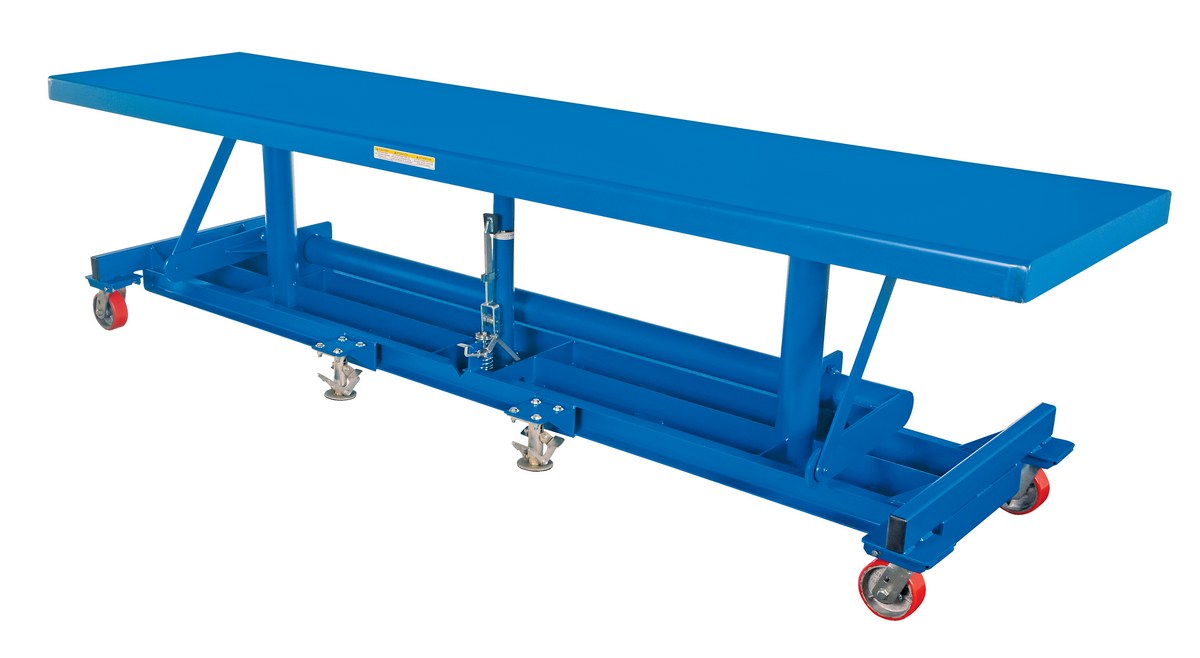

LDLT-30120

model LDLT-30120

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

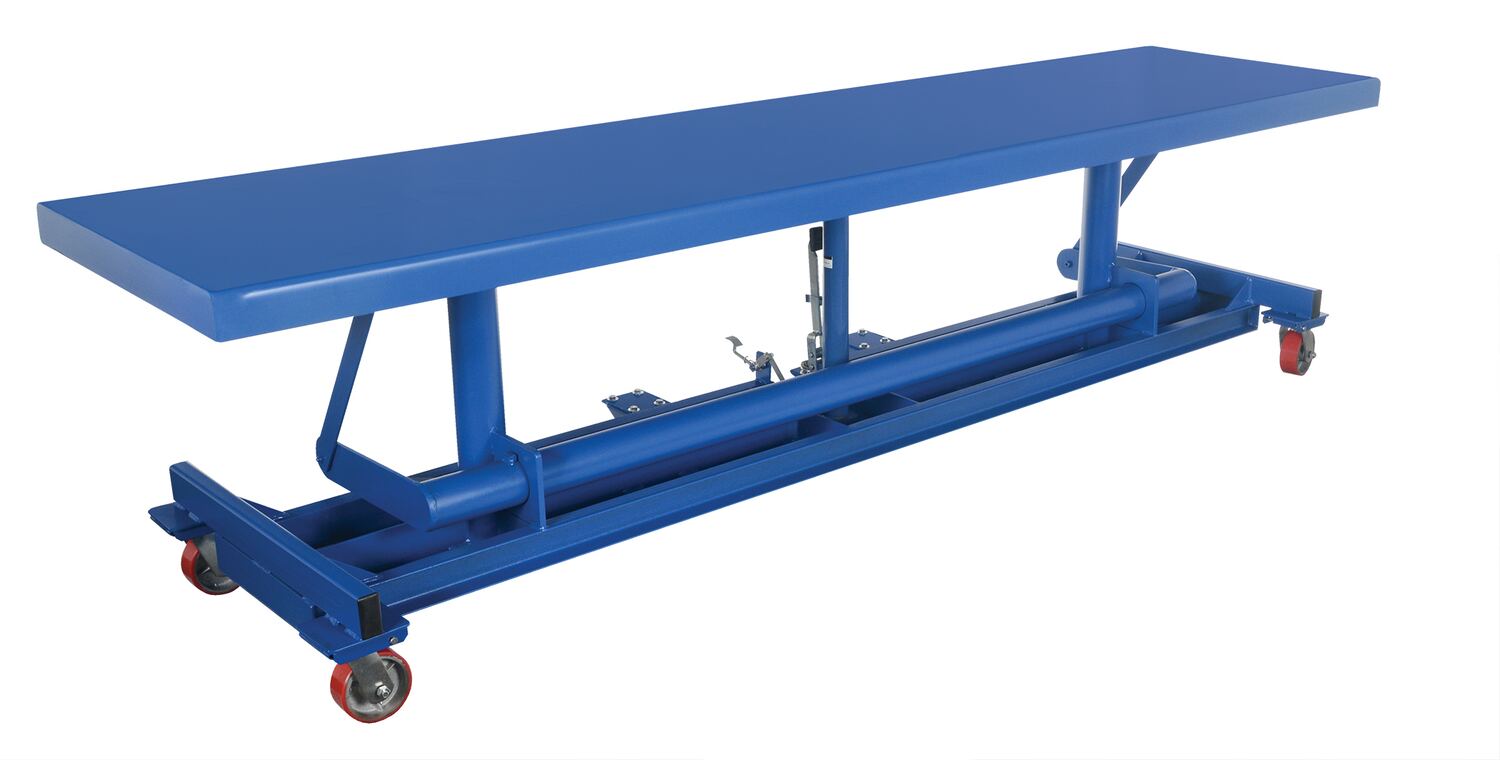

LDLT-20120 NEW LDLT-201201 Year Limited WarrantySteel Ergonomic Long Deck Cart 120 In. x 20 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20		846
LDLT-2060 NEW LDLT-20601 Year Limited WarrantySteel Ergonomic Long Deck Cart 60 In. x 20 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20		435
LDLT-2060-4 NEW LDLT-2060-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 60 In. x 20 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 20		459
LDLT-2072 NEW LDLT-20721 Year Limited WarrantySteel Ergonomic Long Deck Cart 20 In. x 72-1/4 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20		489
LDLT-2072-4 NEW LDLT-2072-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 20 In. x 72-1/4 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 20		511

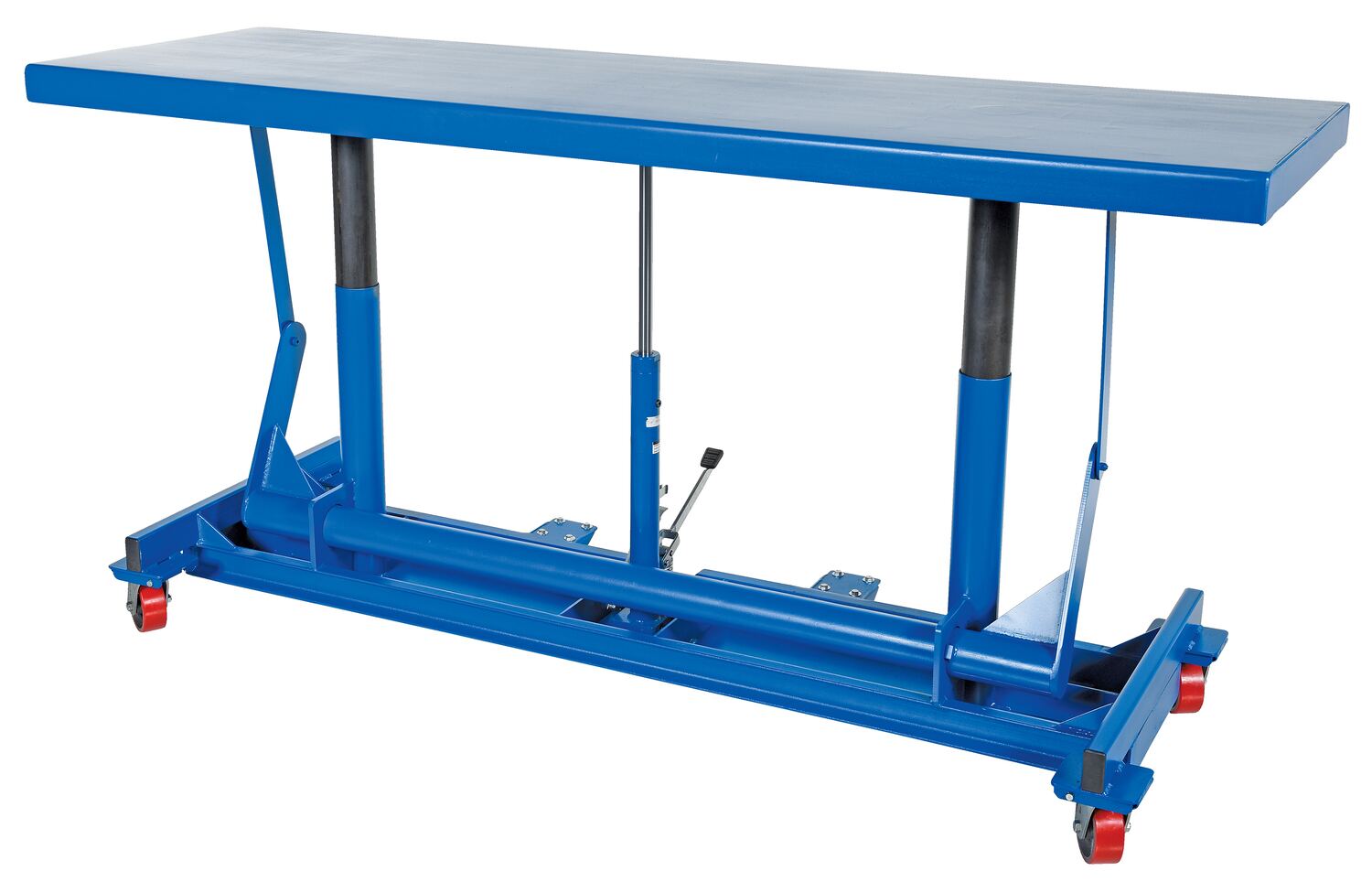

LDLT-2096 NEW LDLT-20961 Year Limited WarrantySteel Ergonomic Long Deck Cart 20 In. x 96-1/4 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20		698
LDLT-2096-4 NEW LDLT-2096-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 96 In. x 20 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 20		720
LDLT-30120 LDLT-301201 Year Limited WarrantySteel Ergonomic Long Deck Cart 120 In. x 30-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		961
LDLT-3060 POPULAR LDLT-30601 Year Limited WarrantySteel Ergonomic Long Deck Cart 60 In. x 30-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		568
LDLT-3060-4 LDLT-3060-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 60 In. x 30-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30		613
LDLT-3072 LDLT-30721 Year Limited WarrantySteel Ergonomic Long Deck Cart 30 In. x 72-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		586
LDLT-3072-4 LDLT-3072-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 30 In. x 72-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30		633
LDLT-3096 LDLT-30961 Year Limited WarrantySteel Ergonomic Long Deck Cart 30 In. x 96-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		848
LDLT-3096-4 LDLT-3096-41 Year Limited WarrantySteel Ergonomic Long Deck Cart 96 In. x 30-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30		829

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

LDLT-20120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20
Uniform Capacity (lb.): 2000
Platform Width (in.): 20

LDLT-2060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20
Uniform Capacity (lb.): 2000
Platform Width (in.): 20

LDLT-2060-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 20
Uniform Capacity (lb.): 4000
Platform Width (in.): 20

LDLT-2072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20
Uniform Capacity (lb.): 2000
Platform Width (in.): 20

LDLT-2072-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 20
Uniform Capacity (lb.): 4000
Platform Width (in.): 20

LDLT-2096
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20
Uniform Capacity (lb.): 2000
Platform Width (in.): 20

LDLT-2096-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 20
Uniform Capacity (lb.): 4000
Platform Width (in.): 20

LDLT-30120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

LDLT-3060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

LDLT-3060-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 30
Uniform Capacity (lb.): 4000
Platform Width (in.): 30

LDLT-3072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

LDLT-3072-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 30
Uniform Capacity (lb.): 4000
Platform Width (in.): 30

LDLT-3096
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 30
Uniform Capacity (lb.): 2000
Platform Width (in.): 30

LDLT-3096-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 30
Uniform Capacity (lb.): 4000
Platform Width (in.): 30
For More Details of the Option Click the Red Model Button
LDLT-AC LDLT-AC1 Year Limited WarrantyFactory Installed AC 115, 208-230, 460 Volt And A 1 or 3 Phase Power Unit For Long Deck CartBrand / Model Compatibility: LDLT-3060, LDLT-3060-4, LDLT-3072, LDLT-3072-4, LDLT-3096, LDLT-3096-4, LDLT-30120
Additional Contents: Factory Installed Power Unit		40

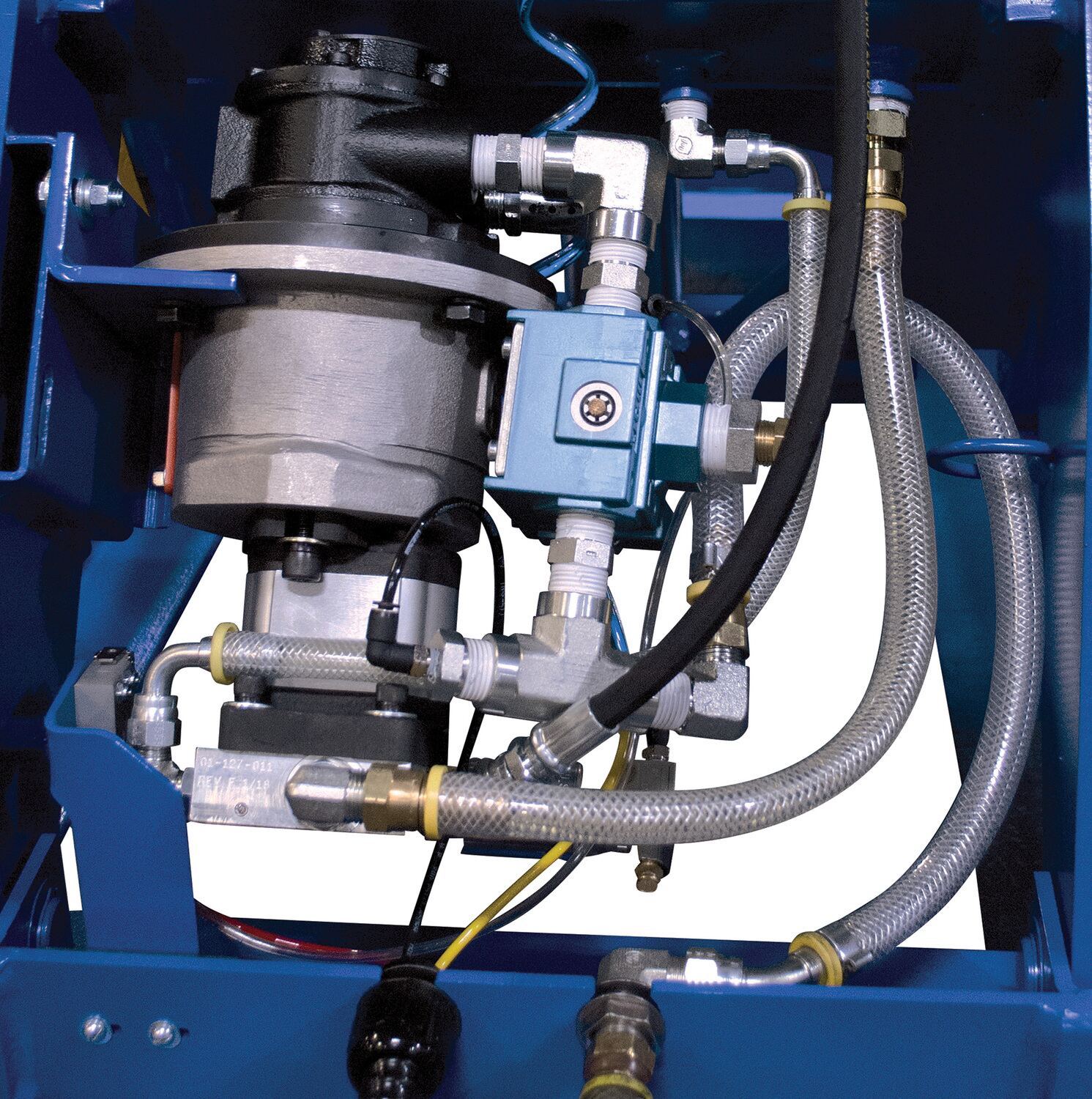

LDLT-AIR LDLT-AIR1 Year Limited WarrantyFactory Installed Rotary Air/Oil Power Unit With Muffler & Hand Control For Long Deck CartBrand / Model Compatibility: LDLT-3060, LDLT-3060-4, LDLT-3072, LDLT-3072-4, LDLT-3096, LDLT-3096-4, LDLT-30120
Additional Contents: Factory Installed Power Unit		10

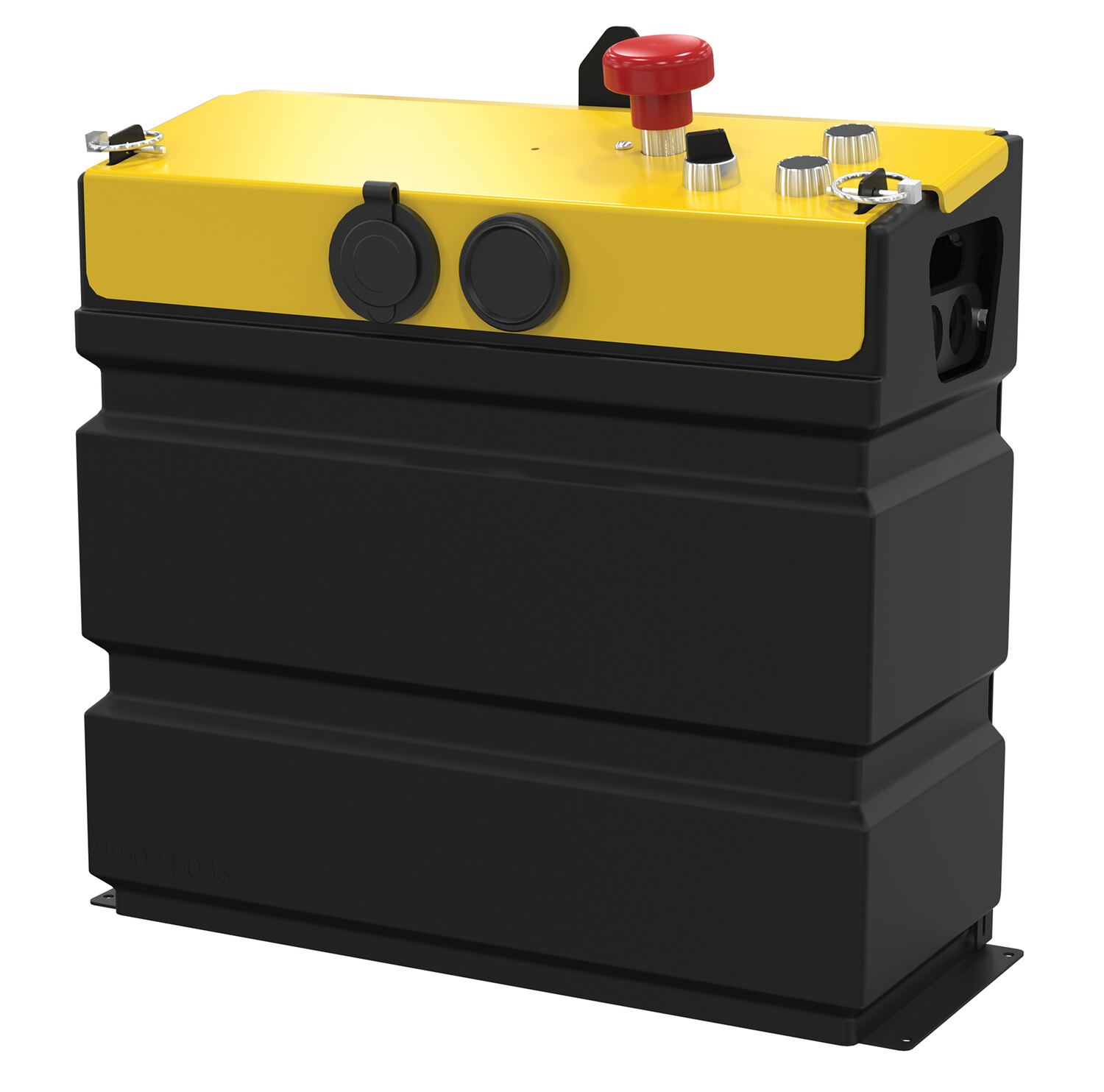

LDLT-DC LDLT-DC1 Year Limited WarrantyFactory Installed 12 Volt DC Power Unit With Charger For Long Deck CartBrand / Model Compatibility: LDLT-3060, LDLT-3060-4, LDLT-3072, LDLT-3072-4, LDLT-3096, LDLT-3096-4, LDLT-30120
Additional Contents: Factory Installed Power Unit		68
LDLT-RECIPR 1 Year Limited WarrantyFactory Installed Reciprocating Air/Oil Power Unit With Foot Control For Long Deck CartBrand / Model Compatibility: LDLT-3060, LDLT-3060-4, LDLT-3072, LDLT-3072-4, LDLT-3096, LDLT-3096-4, LDLT-30120
Additional Contents: Factory Installed Power Unit		5

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Long Deck Carts PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


LDLT-20120

LDLT-2060

LDLT-2060-4

LDLT-2072

LDLT-2072-4

LDLT-2096

LDLT-2096-4

LDLT-30120

LDLT-3060

LDLT-3060-4

LDLT-3072

LDLT-3072-4

LDLT-3096

LDLT-3096-4

Testing Certificates


LDLT-20120

LDLT-2060

LDLT-2060-4

LDLT-2072

LDLT-2072-4

LDLT-2096

LDLT-2096-4

LDLT-30120

LDLT-3060

LDLT-3060-4

LDLT-3072

LDLT-3072-4

LDLT-3096

LDLT-3096-4

LDLT-AC

LDLT-AIR

LDLT-DC

LDLT-RECIPR

SDS Sheets

Hydraulic Oil SDS Sheet for: LDLT-30120
Hydraulic Oil SDS Sheet for: LDLT-3060
Hydraulic Oil SDS Sheet for: LDLT-3060-4
Hydraulic Oil SDS Sheet for: LDLT-3072
Hydraulic Oil SDS Sheet for: LDLT-3072-4
Hydraulic Oil SDS Sheet for: LDLT-3096
Hydraulic Oil SDS Sheet for: LDLT-3096-4
Hydraulic Oil SDS Sheet for: LDLT-AC
Hydraulic Oil SDS Sheet for: LDLT-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: LDLT-DC
Hydraulic Oil SDS Sheet for: LDLT-DC
Hydraulic Oil SDS Sheet for: LDLT-RECIPR
Hydraulic Oil SDS Sheet for: LDLT-20120
Hydraulic Oil SDS Sheet for: LDLT-2060
Hydraulic Oil SDS Sheet for: LDLT-2060-4
Hydraulic Oil SDS Sheet for: LDLT-2072
Hydraulic Oil SDS Sheet for: LDLT-2072-4
Hydraulic Oil SDS Sheet for: LDLT-2096
Hydraulic Oil SDS Sheet for: LDLT-2096-4

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: How many strokes of the foot pump must be done to have maximum lifted height ?

A: The table will raise approximately 0.43" per (foot) pump.

Q: What the thickness of the top deck is on LDLT-3096?

A: The top deck of the LDLT-3096 is 1/4".




Related or Similar Products:

Mechanical Post Tables
Product

Mechanical Post Tables

Linear Actuated Post Table
Product

Linear Actuated Post Table

Air Hydraulic Post Tables
Product

Air Hydraulic Post Tables

Hydraulic Post Tables
Product

Hydraulic Post Tables

Mechanical Scissor Carts
Product

Mechanical Scissor Carts

Scissor Carts with Built-In Scale
Product

Scissor Carts with Built-In Scale

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Long Deck Carts




The Long Deck Cart is perfect for sheet and strip handling, ergonomic load positioning, and handling long awkward material loads. Platform height is adjusted with manual hydraulic foot pump. Structural steel base helps to distribute the load evenly. Unit comes standard with (4) swivel 5" x 2" poly-on-steel casters and dual floor locks. (1/4" thick deck)

All Models are available with Power Options:

  • AC Power:115, 208-230, 460V -- 1 or 3 phase, MODEL LDLT-AC
  • DC Power: one (1) 12V battery, a battery charger and indicator, Model LDLT-DC
  • Reciprocating Air/Oil Power with Foot Treadle Control, Model LDLT-RECIPR
  • Rotary Air/Oil Power with Muffler and Hand Control, Model LDLT-AIR

Model # Description Attributes Net Wt.
(lbs)
LDLT-20120 LDLT-20120Steel Ergonomic Long Deck Cart 120 In. x 20 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20		846
LDLT-2060 LDLT-2060Steel Ergonomic Long Deck Cart 60 In. x 20 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20		435
LDLT-2060-4 LDLT-2060-4Steel Ergonomic Long Deck Cart 60 In. x 20 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 20		459
LDLT-2072 LDLT-2072Steel Ergonomic Long Deck Cart 20 In. x 72-1/4 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20		489
LDLT-2072-4 LDLT-2072-4Steel Ergonomic Long Deck Cart 20 In. x 72-1/4 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 20		511
LDLT-2096 LDLT-2096Steel Ergonomic Long Deck Cart 20 In. x 96-1/4 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20		698
LDLT-2096-4 LDLT-2096-4Steel Ergonomic Long Deck Cart 96 In. x 20 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 20		720
LDLT-30120 LDLT-30120Steel Ergonomic Long Deck Cart 120 In. x 30-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		961
LDLT-3060 LDLT-3060Steel Ergonomic Long Deck Cart 60 In. x 30-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		568
LDLT-3060-4 LDLT-3060-4Steel Ergonomic Long Deck Cart 60 In. x 30-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30		613
LDLT-3072 LDLT-3072Steel Ergonomic Long Deck Cart 30 In. x 72-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		586
LDLT-3072-4 LDLT-3072-4Steel Ergonomic Long Deck Cart 30 In. x 72-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30		633
LDLT-3096 LDLT-3096Steel Ergonomic Long Deck Cart 30 In. x 96-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 30		848
LDLT-3096-4 LDLT-3096-4Steel Ergonomic Long Deck Cart 96 In. x 30-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 30		829

Options


.

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
