Product Family Overview

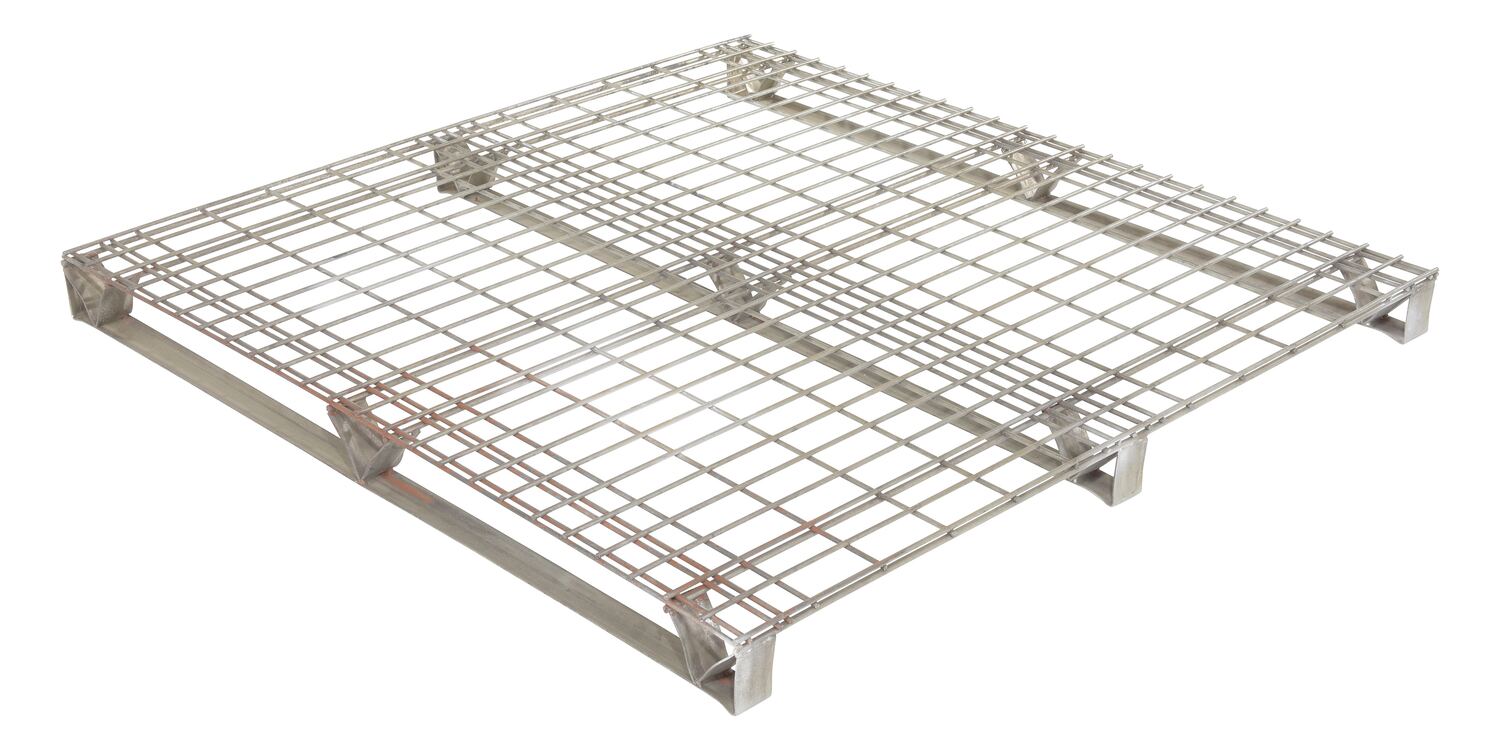

Galvanized Welded Wire Pallets
SERIES: WMP

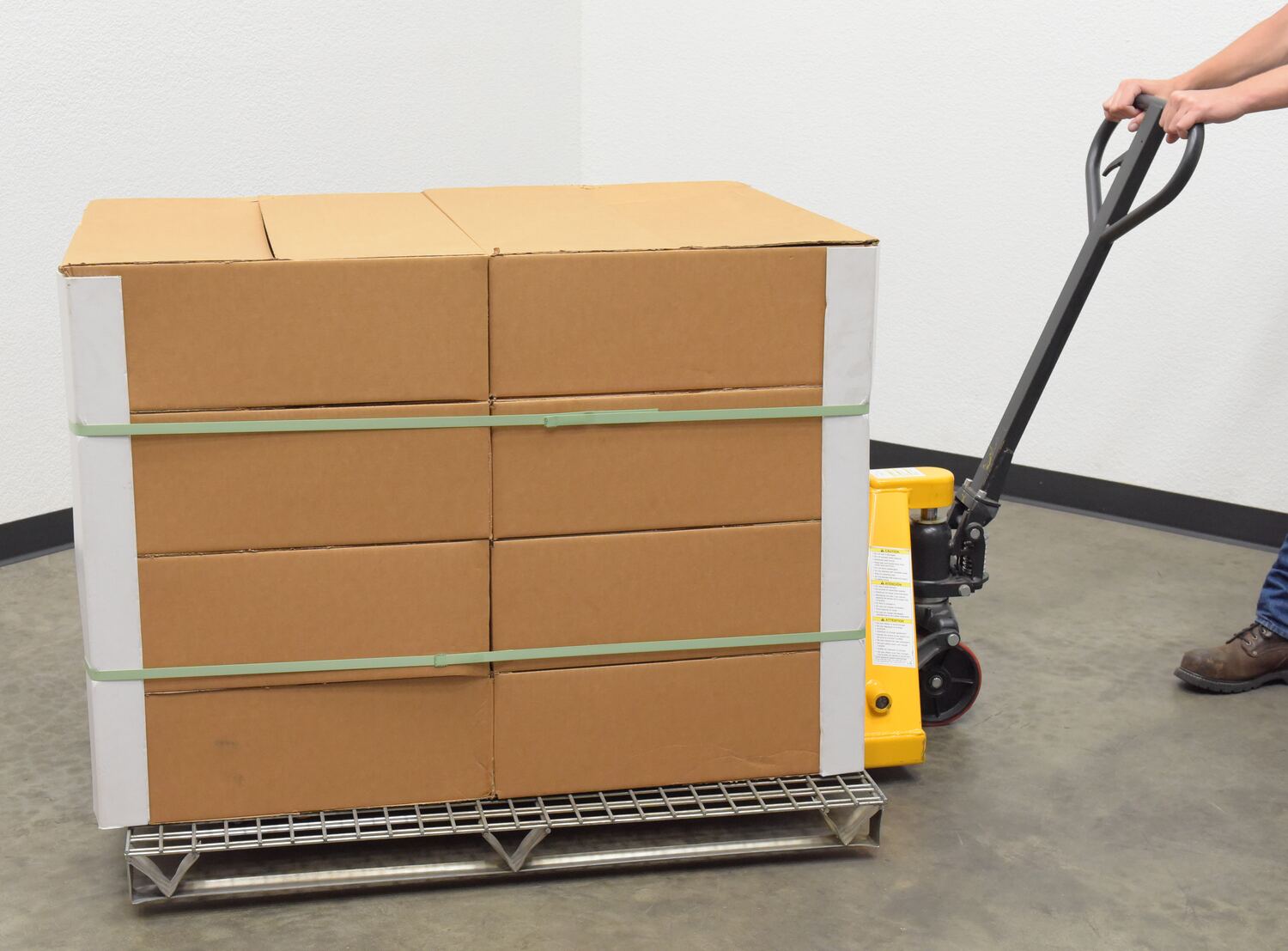

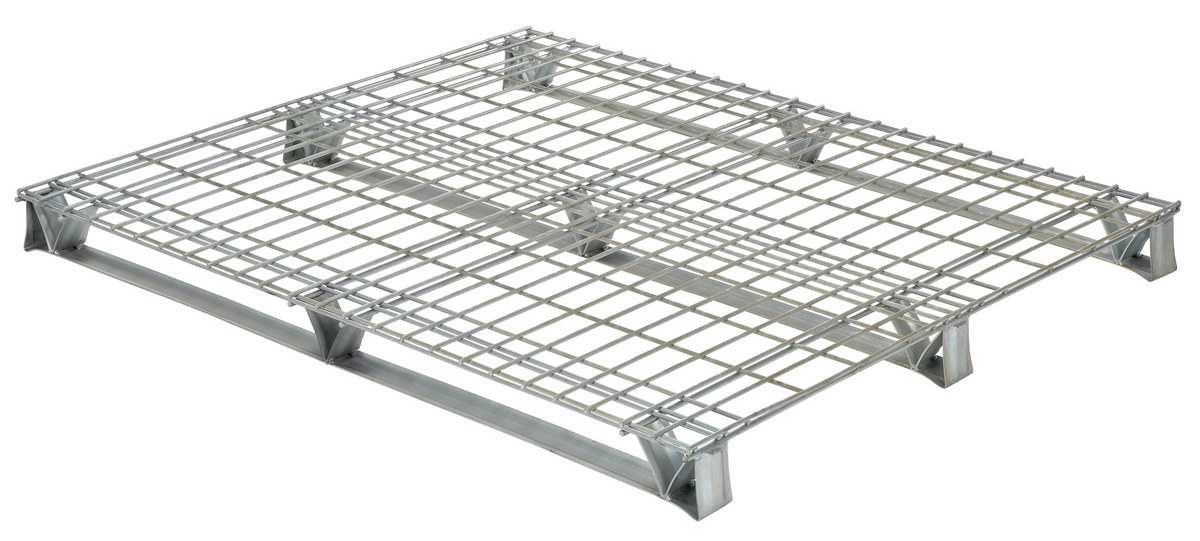

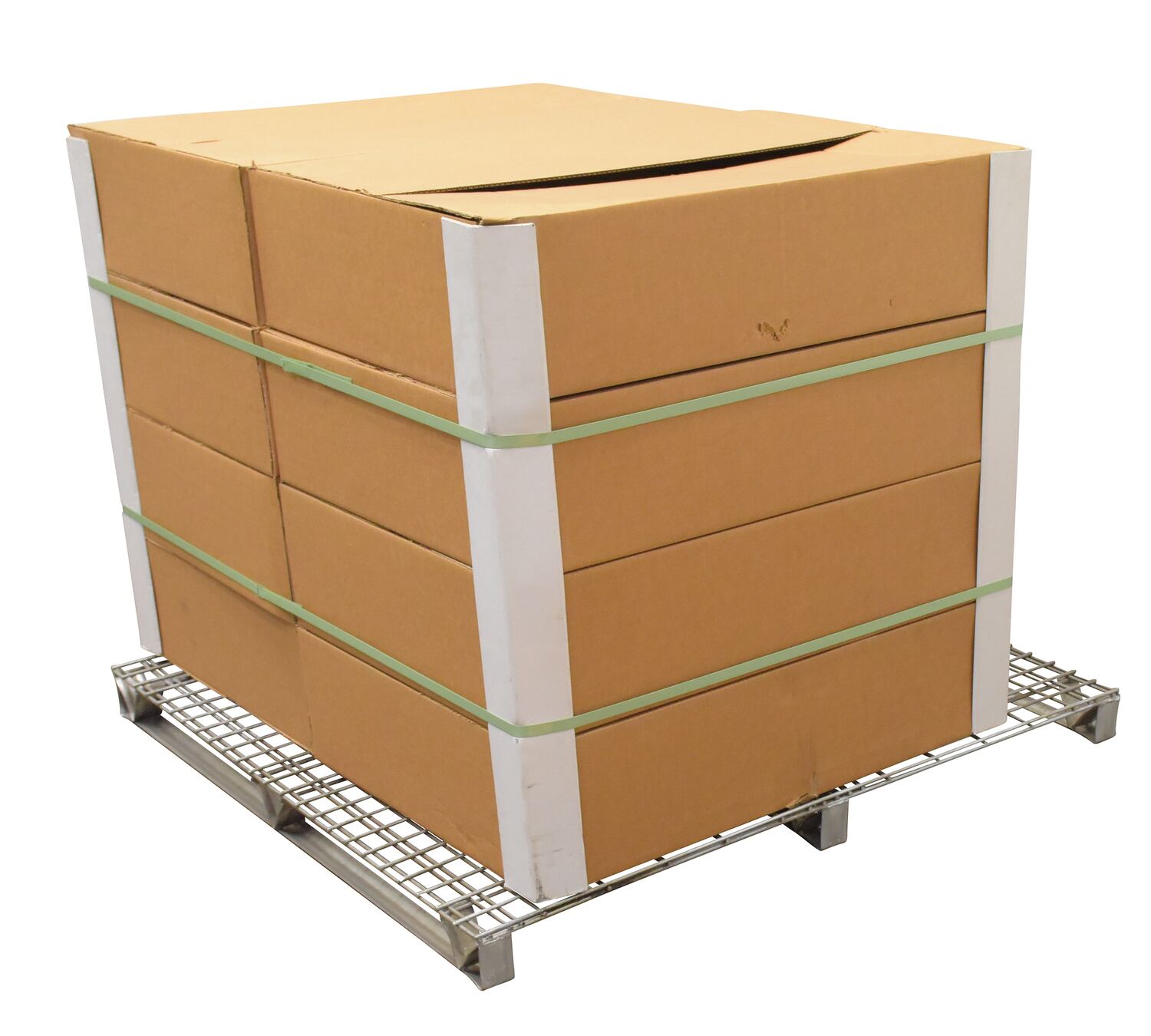

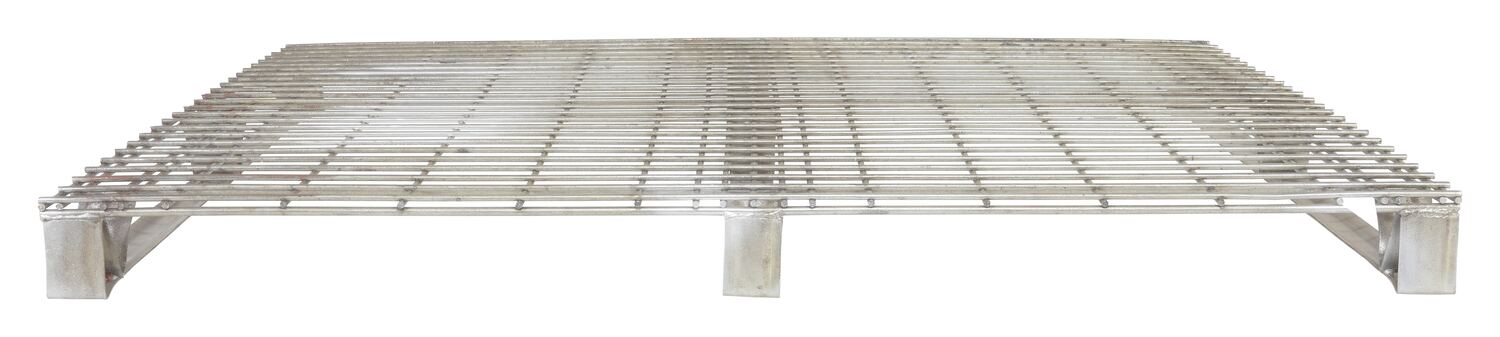

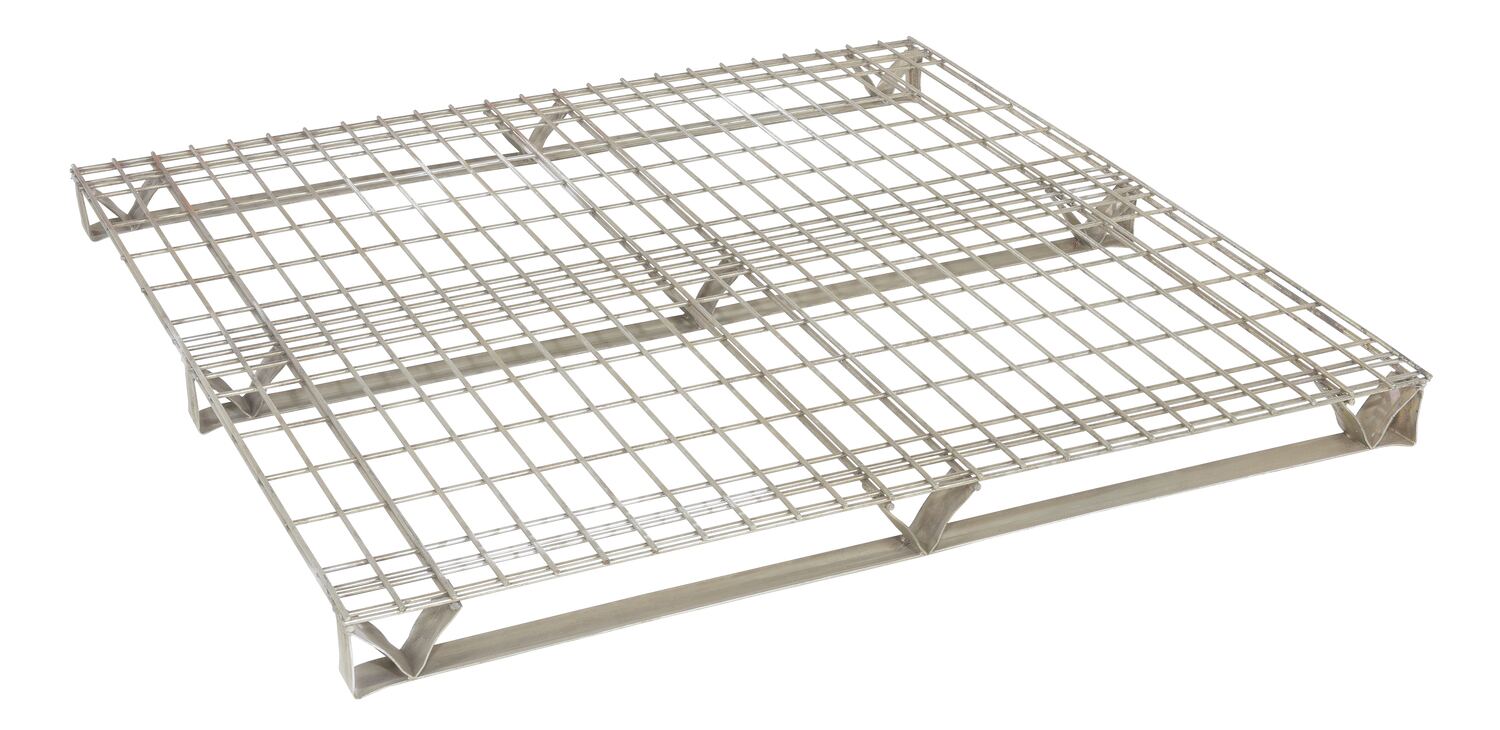

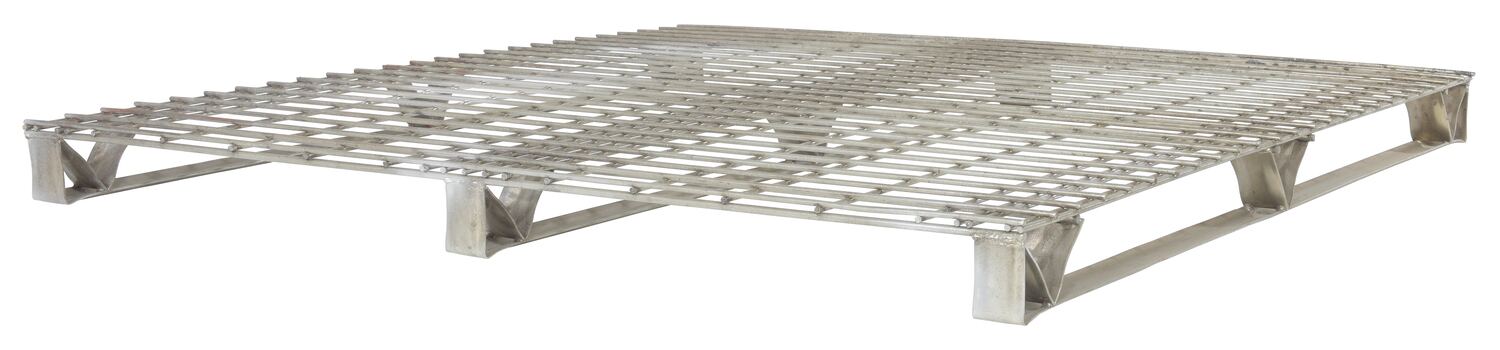

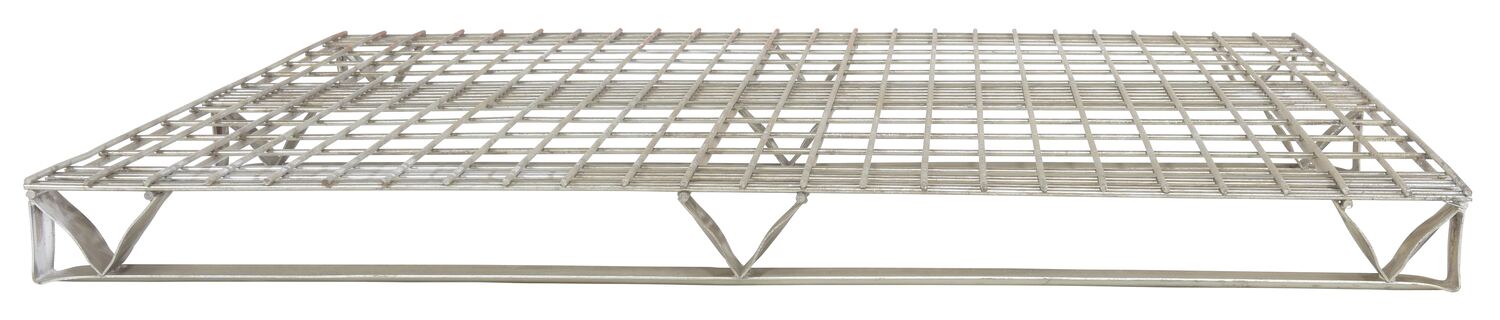

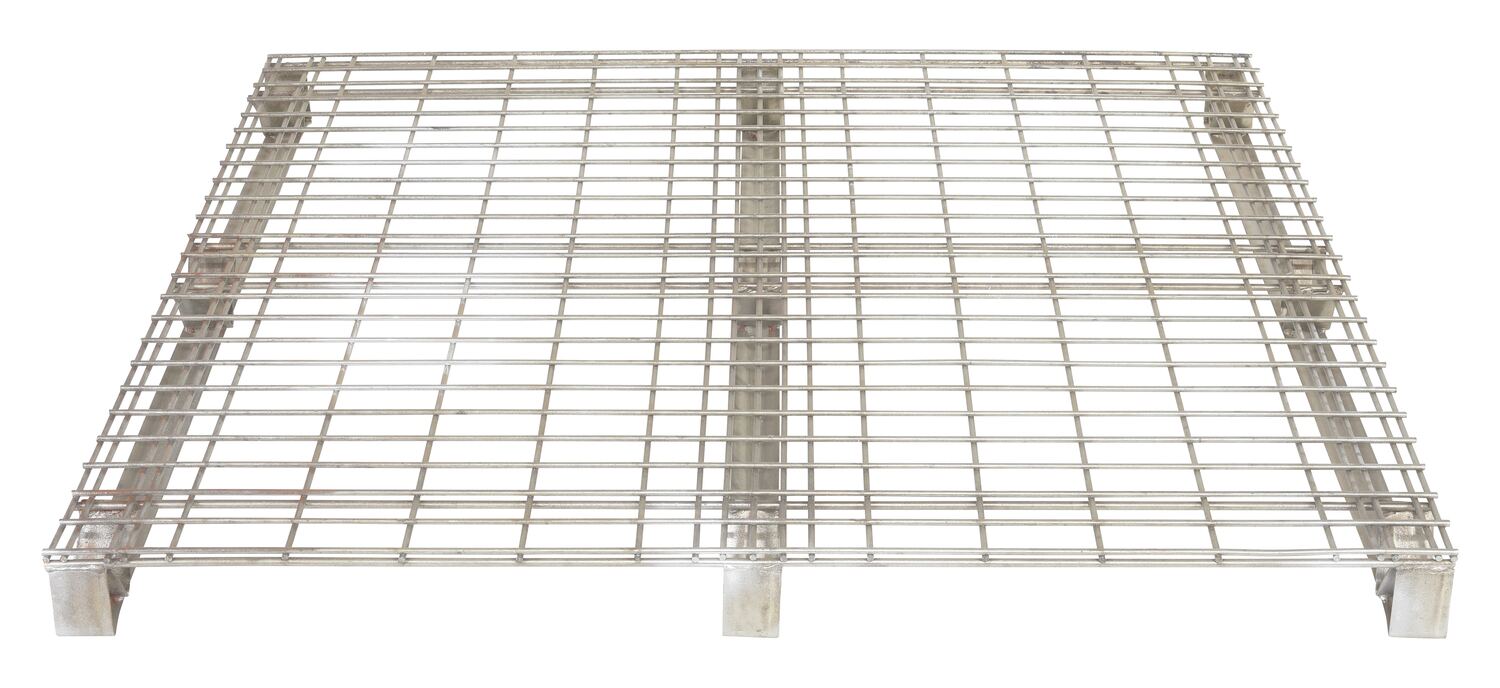

Galvanized Welded Wire Pallets will stand up to heavy-duty use. Design allows for stacking. Four-way access with pallet truck and fork trucks. Open decking features 2" x 4" grid pattern. Usable height on open end is 3". Usable eight on stringer end is 2-3/4". Understructure supports are made from 12 gauge steel. Decking is made from welded steel wire. Welded steel construction with galvanized finish.

  • Welded steel wire pallet is for ideal operation
  • Galvanized finish is rust resistant for maximum efficiency
  • Unit has a four-way entry allowing fork truck access only
  • Heavy-duty, non reversible welded steel for durability and long life

Galvanized Welded Wire Pallets will stand up to heavy-duty use. Design allows for stacking. Four-way access with pallet truck and fork trucks. Open decking features 2" x 4" grid pattern. Usable height on open end is 3". Usable eight on stringer end is 2-3/4". Understructure supports are made from 12 gauge steel. Decking is made from welded steel wire. Welded steel construction with galvanized finish.

  • Welded steel wire pallet is for ideal operation
  • Galvanized finish is rust resistant for maximum efficiency
  • Unit has a four-way entry allowing fork truck access only
  • Heavy-duty, non reversible welded steel for durability and long life

Additional Models In This Family

WMP-4048

model WMP-4048

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
WMP-4048 WMP-404830 Days Limited WarrantyGalvanized Steel Welded Wire Pallet 40 In. x 48 In. 4,000 Lb. Capacity GrayUniform Floor (static) Capacity (lb.): 4,000
Uniform Fork (dynamic) Capacity (lb.): 2,500
84
WMP-4848 WMP-484830 Days Limited WarrantyGalvanized Steel Welded Wire Pallet 48 In. x 48 In. 4,000 Lb. Capacity GrayUniform Floor (static) Capacity (lb.): 4,000
Uniform Fork (dynamic) Capacity (lb.): 2,500
98

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

WMP-4048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 4,000
Uniform Fork (dynamic) Capacity (lb.): 2,500
Uniform Floor (static) Capacity (lb.): 4,000
Uniform Fork (dynamic) Capacity (lb.): 2,500

WMP-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Floor (static) Capacity (lb.): 4,000
Uniform Fork (dynamic) Capacity (lb.): 2,500
Uniform Floor (static) Capacity (lb.): 4,000
Uniform Fork (dynamic) Capacity (lb.): 2,500

Galvanized Welded Wire Pallets PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


WMP-4048

WMP-4848

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Galvanized Welded Wire Pallets




Galvanized Welded Wire Pallets will stand up to heavy-duty use. Design allows for stacking. Four-way access with pallet truck and fork trucks. Open decking features 2" x 4" grid pattern. Usable height on open end is 3". Usable eight on stringer end is 2-3/4". Understructure supports are made from 12 gauge steel. Decking is made from welded steel wire. Welded steel construction with galvanized finish.

  • Welded steel wire pallet is for ideal operation
  • Galvanized finish is rust resistant for maximum efficiency
  • Unit has a four-way entry allowing fork truck access only
  • Heavy-duty, non reversible welded steel for durability and long life


Model # Description Attributes Net Wt.
(lbs)
WMP-4048 WMP-4048Galvanized Steel Welded Wire Pallet 40 In. x 48 In. 4,000 Lb. Capacity GrayUniform Floor (static) Capacity (lb.): 4,000
Uniform Fork (dynamic) Capacity (lb.): 2,500
84
WMP-4848 WMP-4848Galvanized Steel Welded Wire Pallet 48 In. x 48 In. 4,000 Lb. Capacity GrayUniform Floor (static) Capacity (lb.): 4,000
Uniform Fork (dynamic) Capacity (lb.): 2,500
98
