Product Family Overview


Molded Rubber Hose & Cable Crossovers
SERIES: MRBR, RHCB

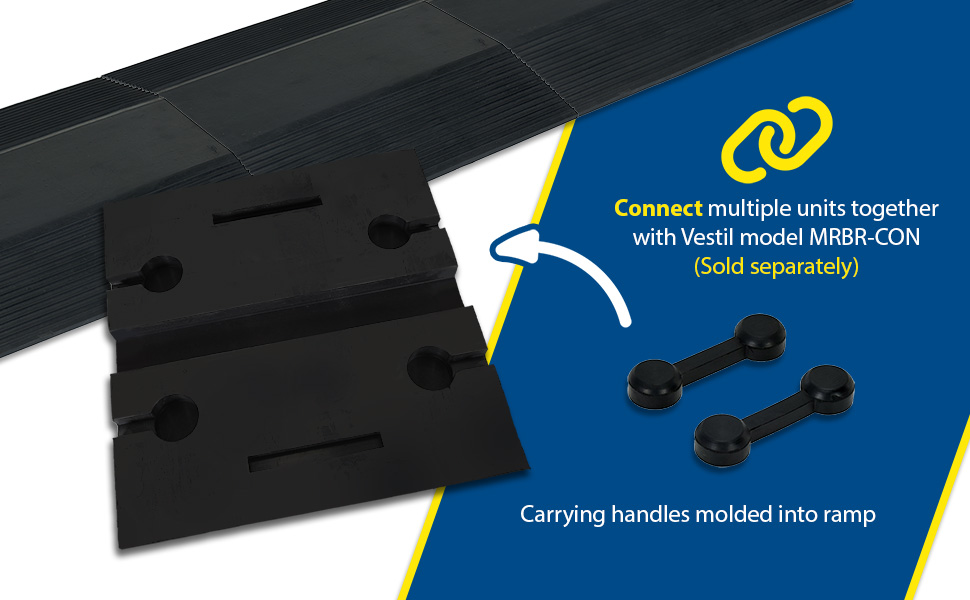

Designed to protect cables and hoses from pedestrian and rolling traffic. The top surface of each crossover includes serrations for extra traction. Optional connectors may be used to interlock individual units together to form wider crossovers. Simply lock together as many units as required.

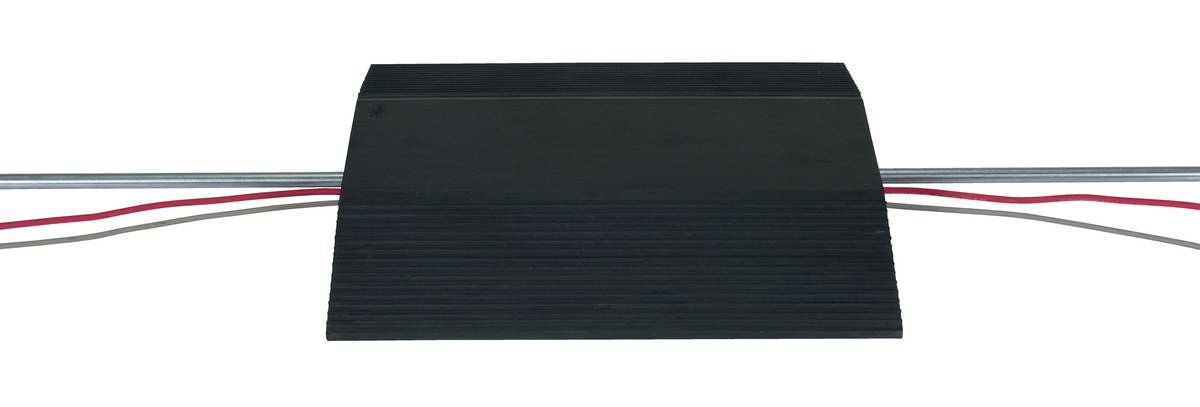

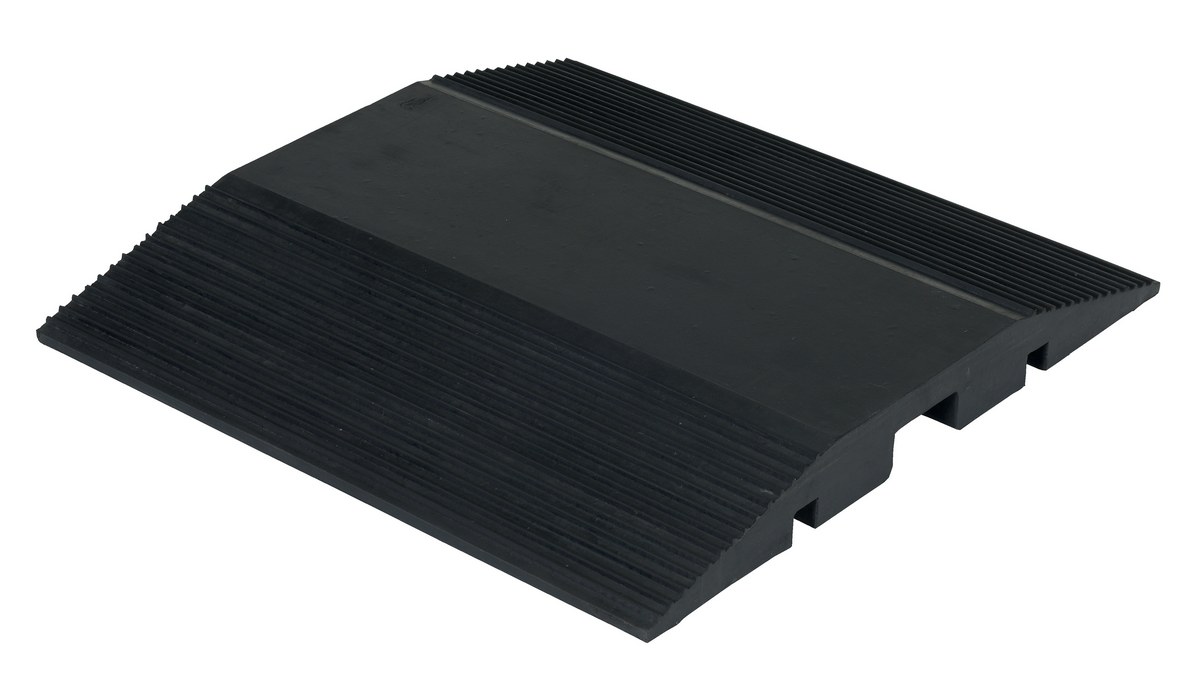

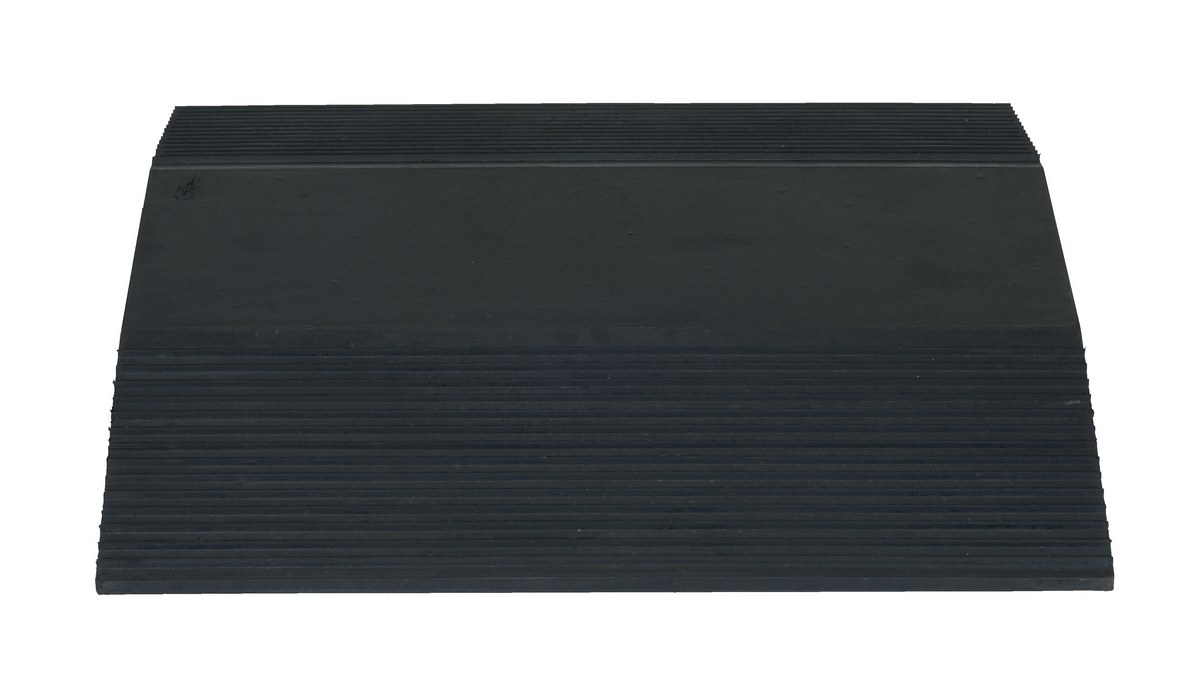

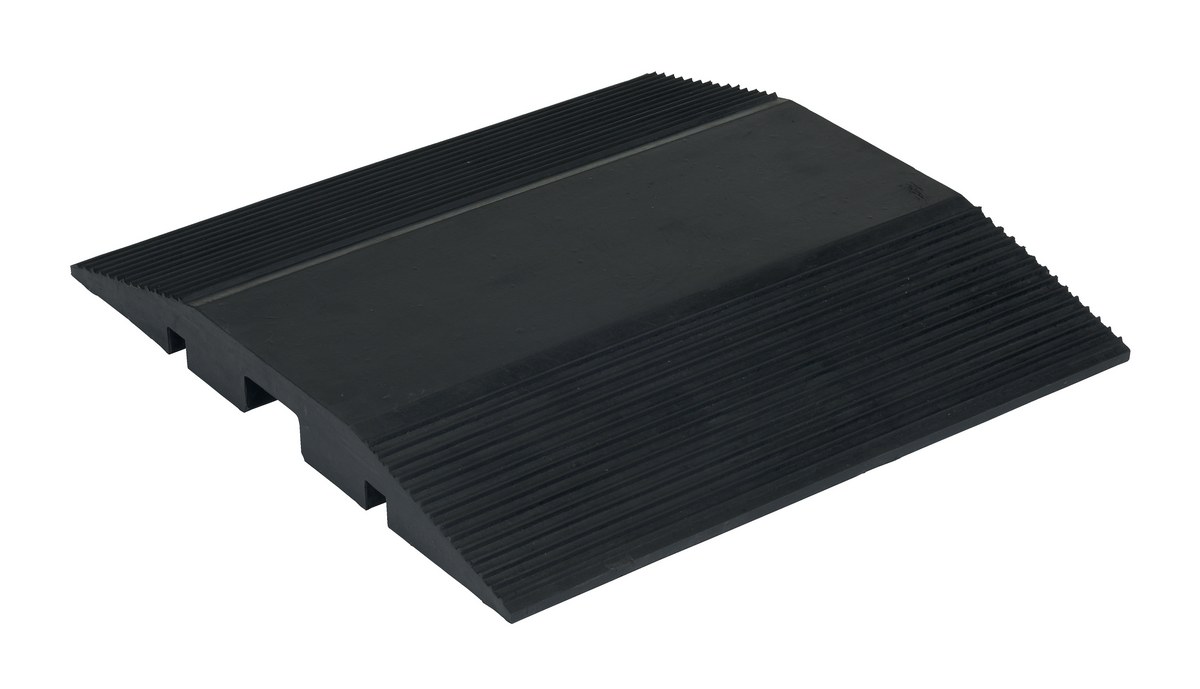

Model MRBR-24 has carry handles molded into the ramp. Fits over cables to protect hoses from punctures and kinks.

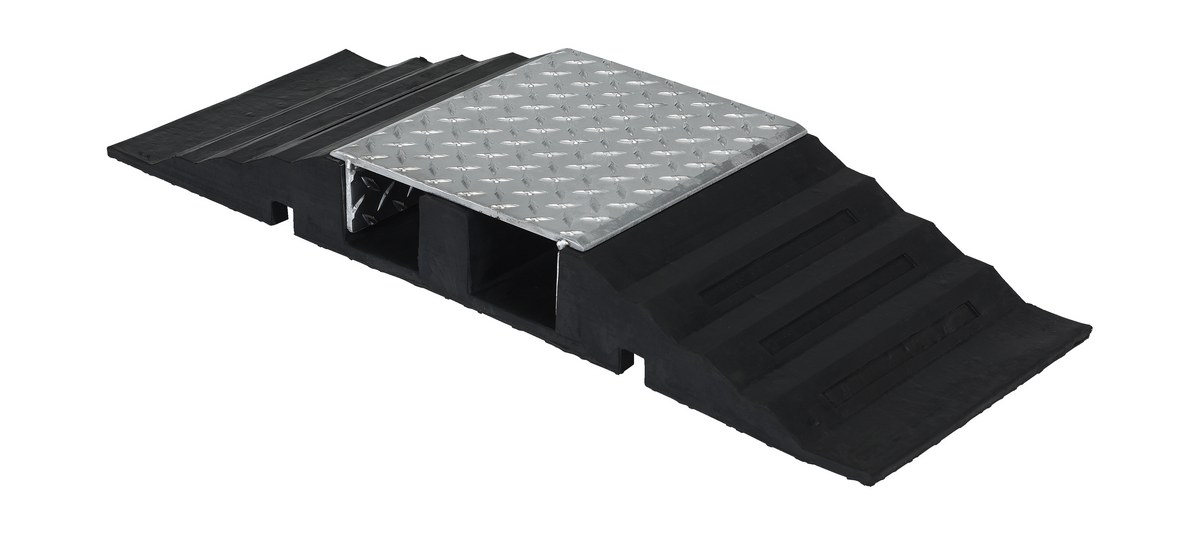

Series RHCB is a ideal for people who are always switching out cables but do not want to move the ramp. The model RHCB-A features an aluminum treadplate insert to protect hoses and cables (for light traffic and slow applications only).

Designed to protect cables and hoses from pedestrian and rolling traffic. The top surface of each crossover includes serrations for extra traction. Optional connectors may be used to interlock individual units together to form wider crossovers. Simply lock together as many units as required.

Model MRBR-24 has carry handles molded into the ramp. Fits over cables to protect hoses from punctures and kinks.

Series RHCB is a ideal for people who are always switching out cables but do not want to move the ramp. The model RHCB-A features an aluminum treadplate insert to protect hoses and cables (for light traffic and slow applications only).

Additional Models In This Family

MRBR-CON

model MRBR-CON

RHCB-12

model RHCB-12

RHCB-12A

model RHCB-12A

RHCB-CON

model RHCB-CON

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

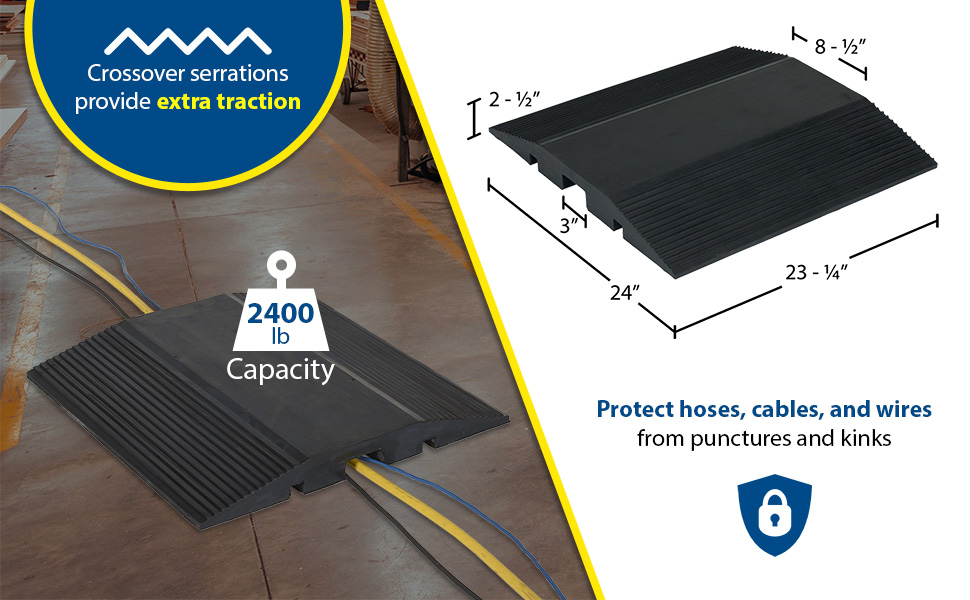

MRBR-24 MRBR-2430 Days Limited WarrantyMolded Rubber Cable Crossover 23-1/4 In. x 24 In. x 2-1/2 In. 2400 Lb. Capacity BlackUniform Capacity (lb.): 2,400
Usable Span Width (in.): 3
48

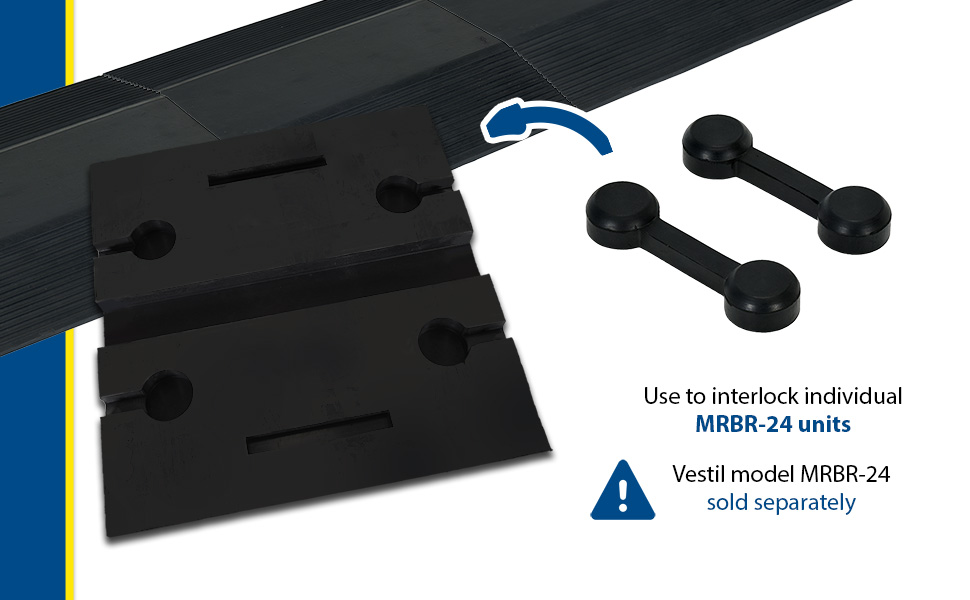

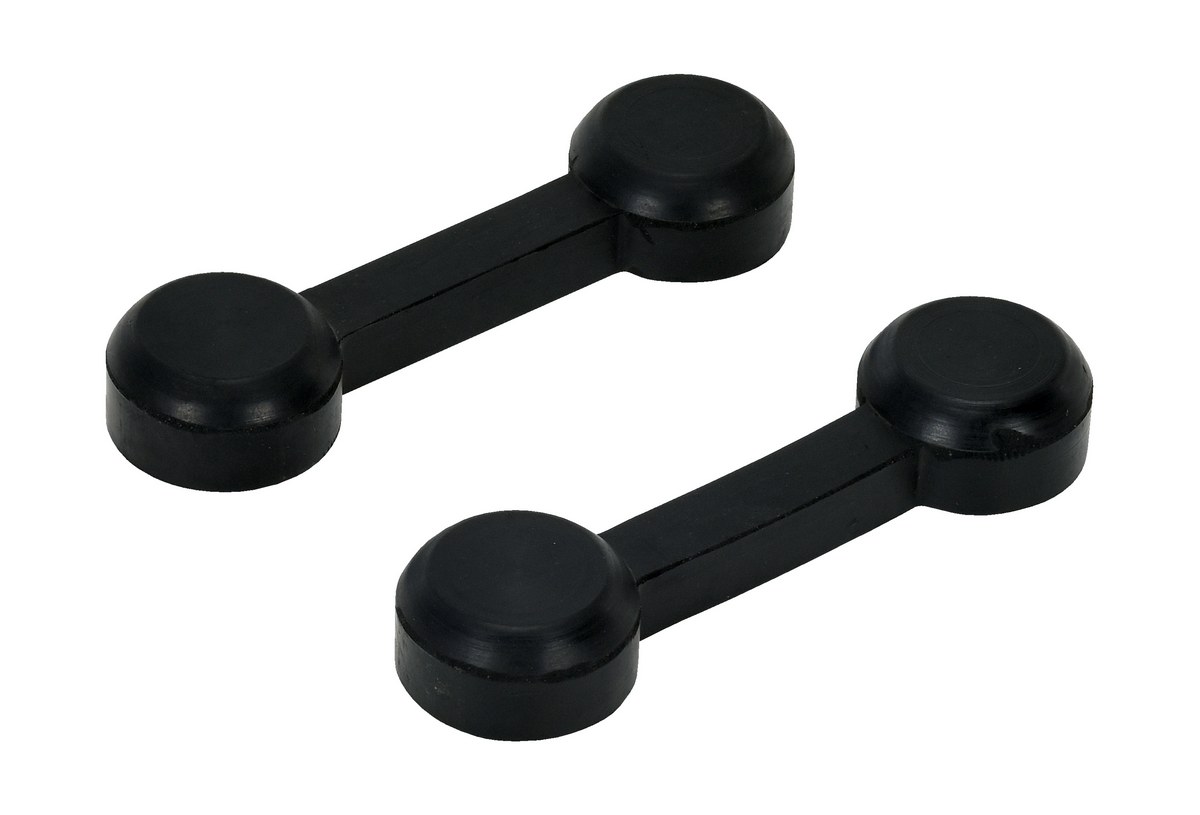

MRBR-CON MRBR-CON30 Days Limited WarrantyMolded Rubber Crossover Connectors 10-3/8 In. x 2-7/8 In. x 1-7/16 In. Black-
3
RHCB-12 RHCB-1230 Days Limited WarrantyMolded Rubber Hose/Cable Crossover Bridge 32-5/8 In. x 12 In. x 3-1/2 In. 2400 Lb. Capacity BlackUniform Capacity (lb.): 2,400
Usable Span Width (in.): 3-1/2
33
RHCB-12A RHCB-12A30 Days Limited WarrantyAluminum Rubber Hose/Cable Crossover Bridge 32-5/8 In. x 12 In. x 3-13/16 In. 2400 Lb. Capacity BlackUniform Capacity (lb.): 2,400
Usable Span Width (in.): 3
38
RHCB-CON RHCB-CON30 Days Limited WarrantyMolded Rubber Crossover Connectors Black For RHCB ModelsApplication: For use with RHCB-12 and RHCB-12A
2

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

MRBR-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,400
Usable Span Width (in.): 3
Uniform Capacity (lb.): 2,400
Usable Span Width (in.): 3

MRBR-CON
Unit:
Size: W x L x H
Weight:
Limited Warranty
-

-

RHCB-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,400
Usable Span Width (in.): 3-1/2
Uniform Capacity (lb.): 2,400
Usable Span Width (in.): 3-1/2

RHCB-12A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,400
Usable Span Width (in.): 3
Uniform Capacity (lb.): 2,400
Usable Span Width (in.): 3

RHCB-CON
Unit:
Size: W x L x H
Weight:
Limited Warranty
Application: For use with RHCB-12 and RHCB-12A

Application: For use with RHCB-12 and RHCB-12A


Molded Rubber Hose & Cable Crossovers PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


MRBR-24

MRBR-CON

RHCB-12

RHCB-12A

RHCB-CON

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Is MRBR-24 ADA compliant?

A: MRBR-24 complies with all applicable U.S. Federal OSHA regulations and U.S. national standards which are incorporated into U.S. national laws and/or regulations.
