Aluminum Hand Truck Dockboards

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
AHTD-3036_A.jpg AHTD-3036_B.jpg AHTD-3036_C.jpg AHTD-3036_D.jpg
AHTD-3036_1.jpg AHTD-3036_2.jpg
Aluminum Hand Truck Dockboards

model: AHTD-3036



Featured Loading Dock Equipment


Molded Rubber Hose & Cable Crossovers
Aluminum Wheel Chocks
Wheel Risers
Fabricated Aluminum Hose & Cable Crossovers
Cargo Restraints
Trailer Crane Bumpers
Yard Ramps
Dock Barricades
Flexible Gooseneck Dock Lights
model chart

Product Family Overview

Print Friendly

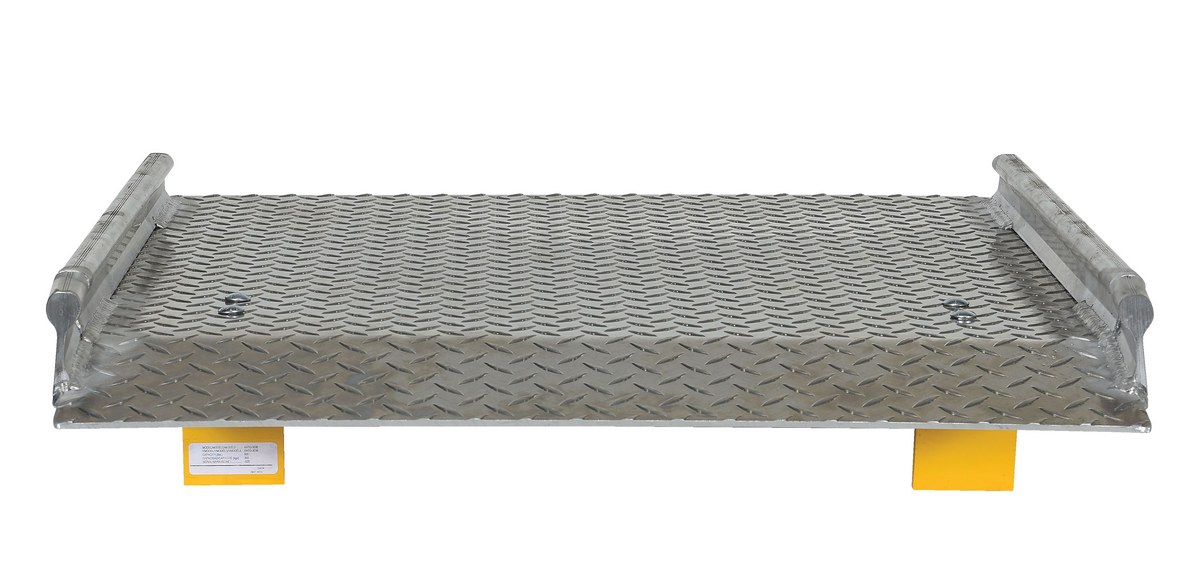

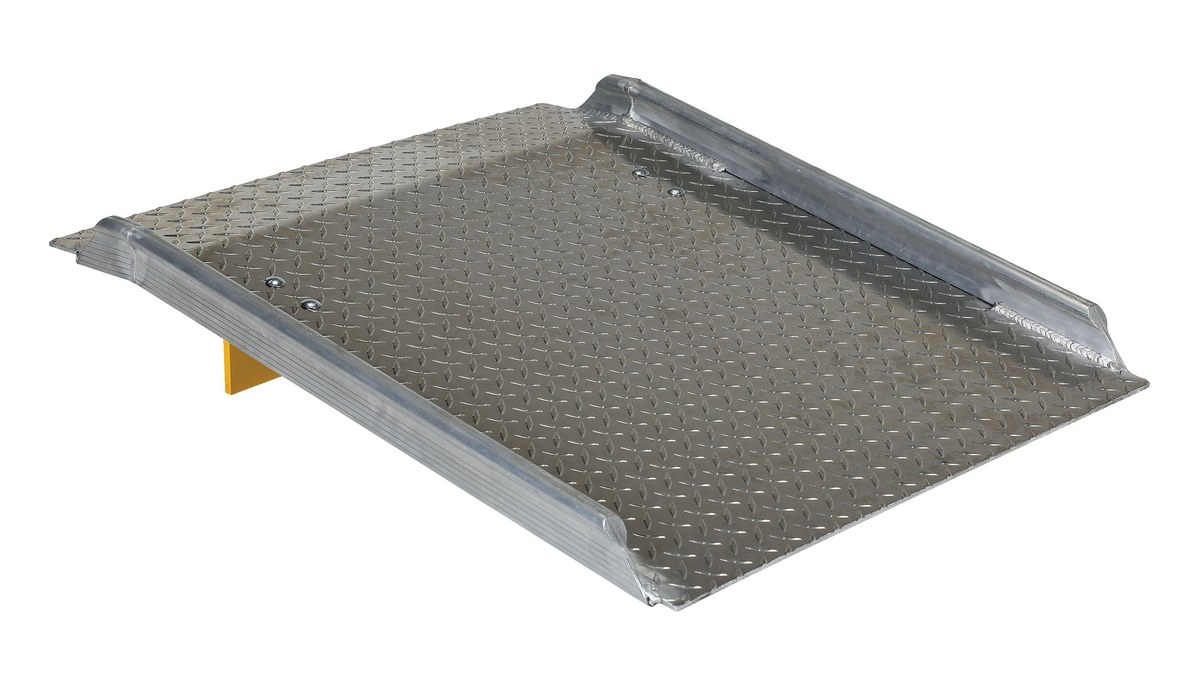

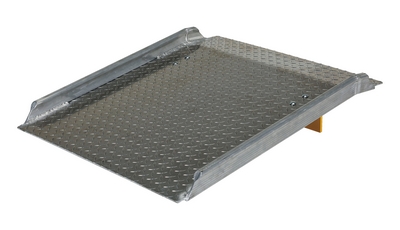

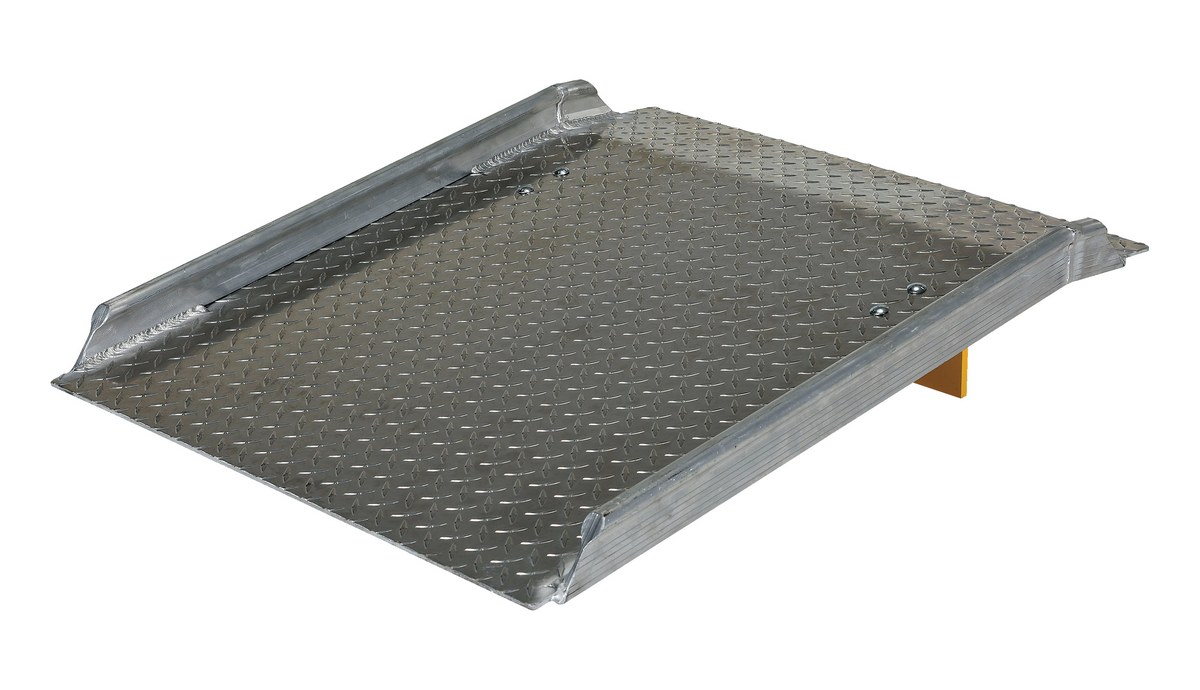

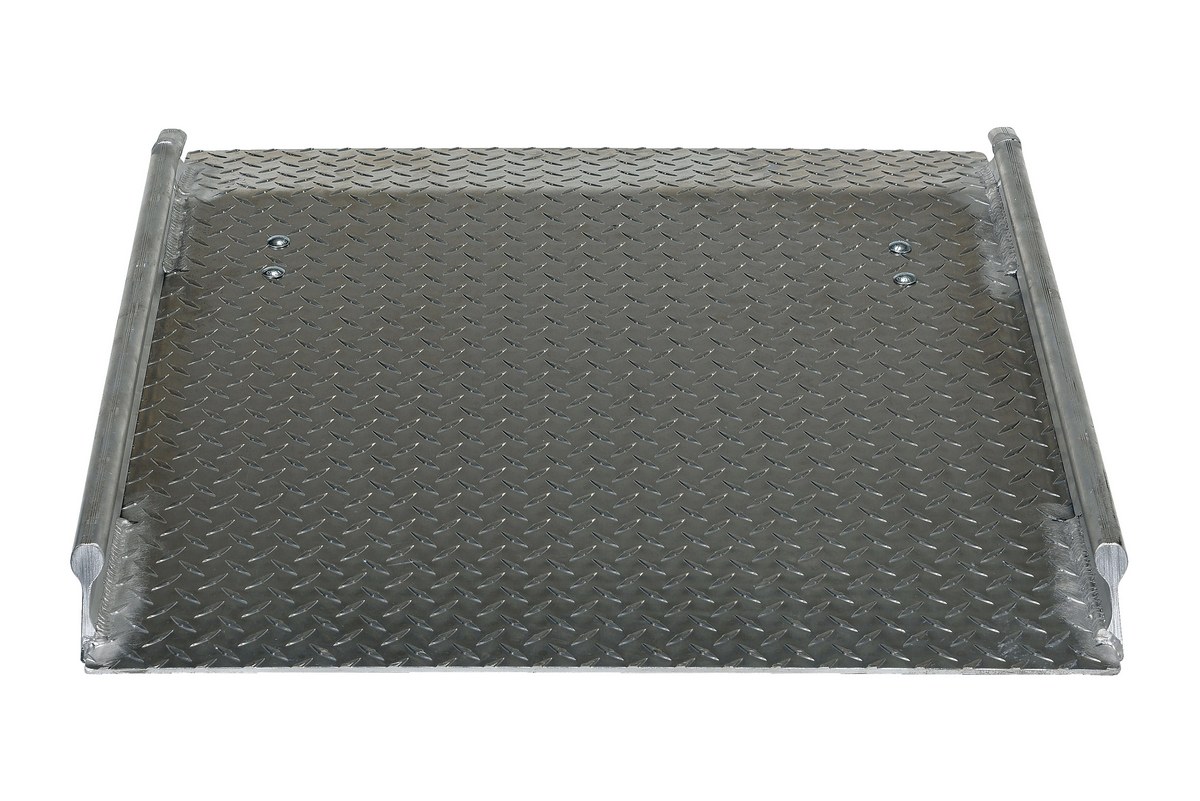

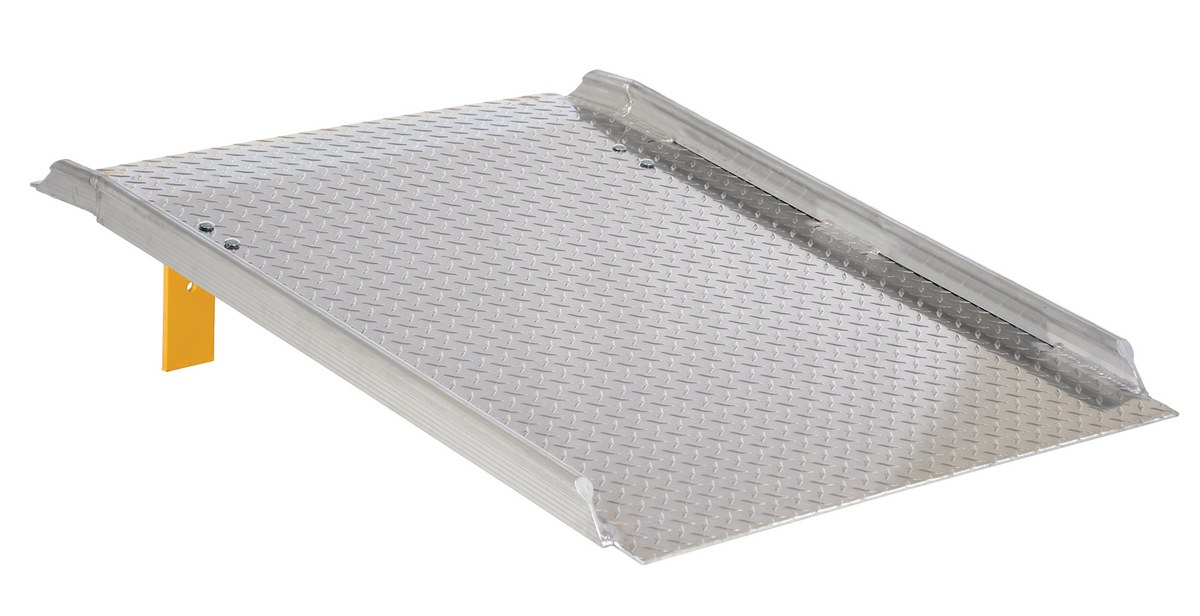

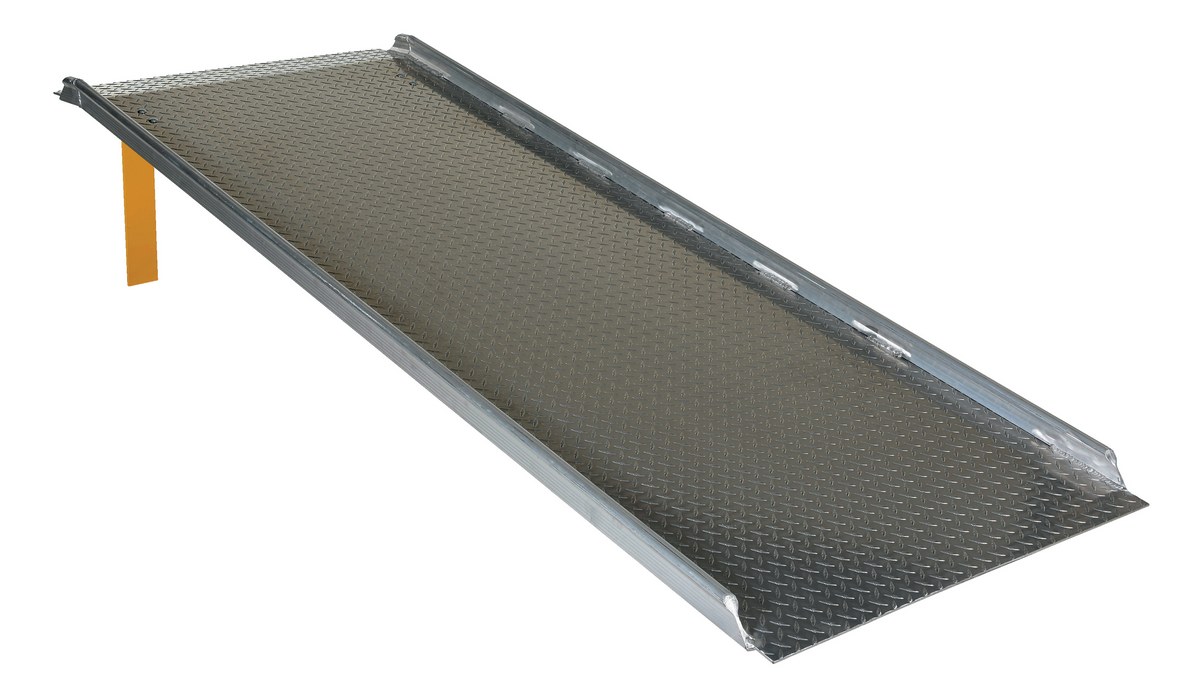

Aluminum Hand Truck Dockboards
SERIES: AHTD

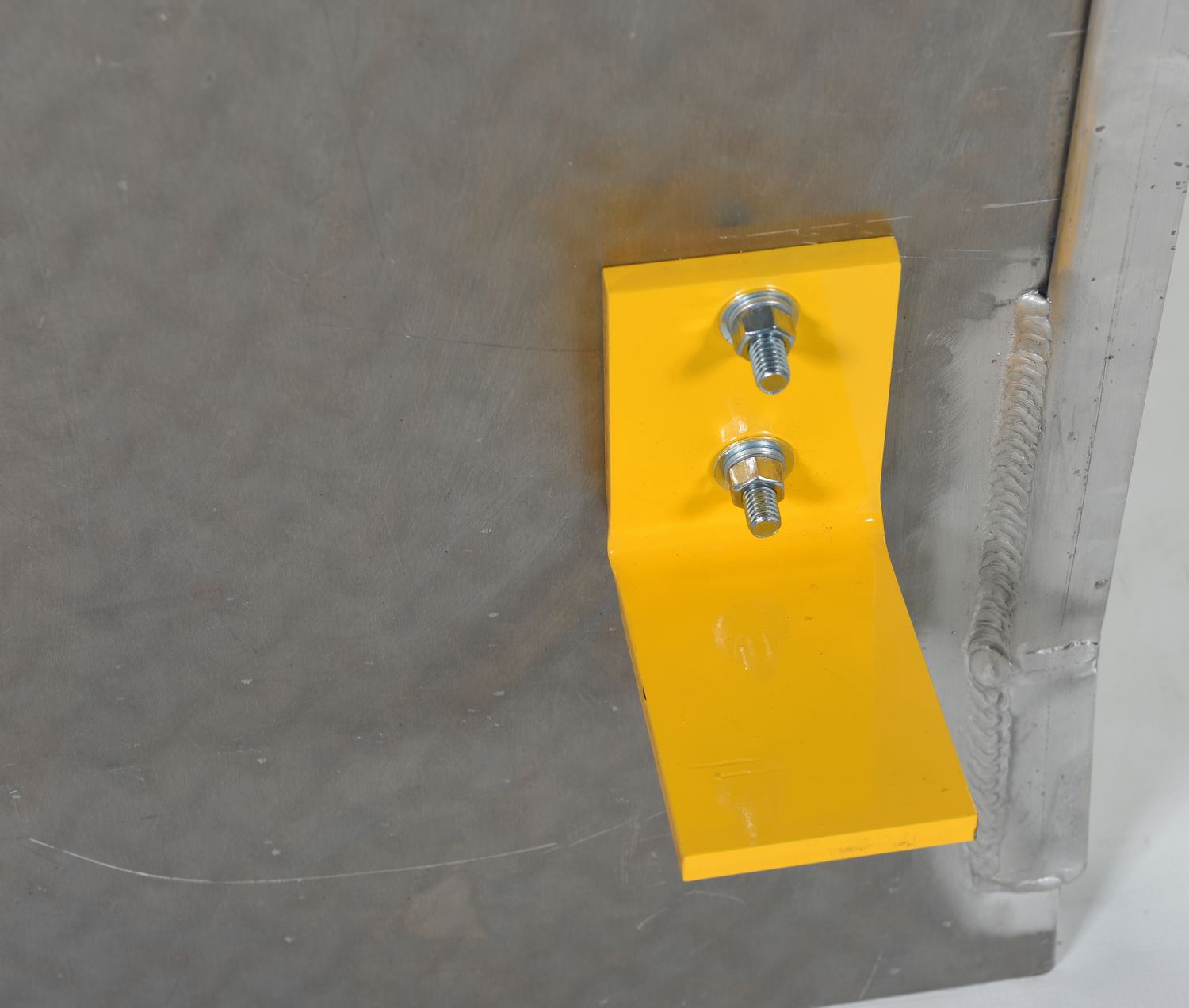

The Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12 degree bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. 800 lb. uniform capacity. Designed for use with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Bolt-on locking legs and lifting handles for OSHA compliance

The Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12 degree bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. 800 lb. uniform capacity. Designed for use with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Bolt-on locking legs and lifting handles for OSHA compliance

Other Dockplates & Dockboards

 Aluminum Mini Dockplates Aluminum Truck Dockboards (Welded Aluminum Curbs) Aluminum Hand Truck Dockboards Aluminum Hand Truck Dockplates

Additional Models In This Family
view entire Image Gallery

AHTD-3648

model AHTD-3648

AHTD-3696

model AHTD-3696

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
AHTD-3036 AHTD-303690 Days Limited WarrantyAluminum Hand Truck Dock Board 35-7/8 In. x 31-1/4 In. x 7-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		235
AHTD-3048 AHTD-304890 Days Limited WarrantyAluminum Hand Truck Dock Board 47-7/8 In. x 31-1/4 In. x 10-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		246
AHTD-3648 AHTD-364890 Days Limited WarrantyAluminum Hand Truck Dock Board 47-7/8 In. x 37-1/4 In. x 10-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		251
AHTD-3660 AHTD-366090 Days Limited WarrantyAluminum Hand Truck Dock Board 59-7/8 In. x 37-1/4 In. x 13-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		265
AHTD-3672 AHTD-367290 Days Limited WarrantyAluminum Hand Truck Dock Board 71-7/8 In. x 37-1/4 In. x 16-1/8 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		95
AHTD-3696 AHTD-369690 Days Limited WarrantyAluminum Hand Truck Dock Board 95-7/8 In. x 37-1/4 In. x 19-1/8 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		107

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

AHTD-3036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12

AHTD-3048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12

AHTD-3648
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12

AHTD-3660
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12

AHTD-3672
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12

AHTD-3696
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
Uniform Capacity (lb.): 800
Bend or Crown (degrees): 12
For More Details of the Option Click the Red Model Button
Aluminum Hand Truck Dockboard-Options
Model PDFs Description
DPR-2616 - Steel Dock Plate Storage Rack 26 In. x 6 In. Yellow
1HDL Compliance Certificate One Handle
SDP Compliance Certificate Smooth Deck Plate (Diamond side down with grip tape)
S2B Compliance Certificate Special 2nd Bend Location
SBL Compliance Certificate Special Bend Location
SLL Compliance Certificate Special Location of Legs
ATC-12 Compliance Certificate Anti-Theft Chain (144")
LHDL Compliance Certificate Extra Pair of Legs with Handles & Hardware
TRADE Compliance Certificate Trade in Allowance (F.O.B. IN)
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Aluminum Hand Truck Dockboards PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets


Dock Board Survey
Survey Sheet

Approval Drawings


AHTD-3036

AHTD-3048

AHTD-3648

AHTD-3660

AHTD-3672

AHTD-3696

Testing Certificates


AHTD-3036

AHTD-3048

AHTD-3648

AHTD-3660

AHTD-3672

AHTD-3696

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Aluminum Mini Dockplates
Product

Aluminum Mini Dockplates

Aluminum Truck Dockboards with Steel Safety Curbs
Product

Aluminum Truck Dockboards with Steel Safety Curbs

Steel Dock Plate Storage Rack
Product

Steel Dock Plate Storage Rack

Aluminum Economizer Dockplates
Product

Aluminum Economizer Dockplates

Aluminum Hand Truck Dockplates
Product

Aluminum Hand Truck Dockplates

Aluminum Truck Dockboards (Welded Aluminum Curbs)
Product

Aluminum Truck Dockboards (Welded Aluminum Curbs)

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Aluminum Hand Truck Dockboards




The Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12 degree bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. 800 lb. uniform capacity. Designed for use with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Bolt-on locking legs and lifting handles for OSHA compliance

Model # Description Attributes Net Wt.
(lbs)
AHTD-3036 AHTD-3036Aluminum Hand Truck Dock Board 35-7/8 In. x 31-1/4 In. x 7-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		29
AHTD-3048 AHTD-3048Aluminum Hand Truck Dock Board 47-7/8 In. x 31-1/4 In. x 10-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		38
AHTD-3648 AHTD-3648Aluminum Hand Truck Dock Board 47-7/8 In. x 37-1/4 In. x 10-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		41
AHTD-3660 AHTD-3660Aluminum Hand Truck Dock Board 59-7/8 In. x 37-1/4 In. x 13-3/16 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		55
AHTD-3672 AHTD-3672Aluminum Hand Truck Dock Board 71-7/8 In. x 37-1/4 In. x 16-1/8 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		95
AHTD-3696 AHTD-3696Aluminum Hand Truck Dock Board 95-7/8 In. x 37-1/4 In. x 19-1/8 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Bend or Crown (degrees): 12		107

Options


Aluminum Hand Truck Dockboard-Options
Model PDFs Description
DPR-2616 - Steel Dock Plate Storage Rack 26 In. x 6 In. Yellow
1HDL Compliance Certificate One Handle
SDP Compliance Certificate Smooth Deck Plate (Diamond side down with grip tape)
S2B Compliance Certificate Special 2nd Bend Location
SBL Compliance Certificate Special Bend Location
SLL Compliance Certificate Special Location of Legs
ATC-12 Compliance Certificate Anti-Theft Chain (144")
LHDL Compliance Certificate Extra Pair of Legs with Handles & Hardware
TRADE Compliance Certificate Trade in Allowance (F.O.B. IN)
