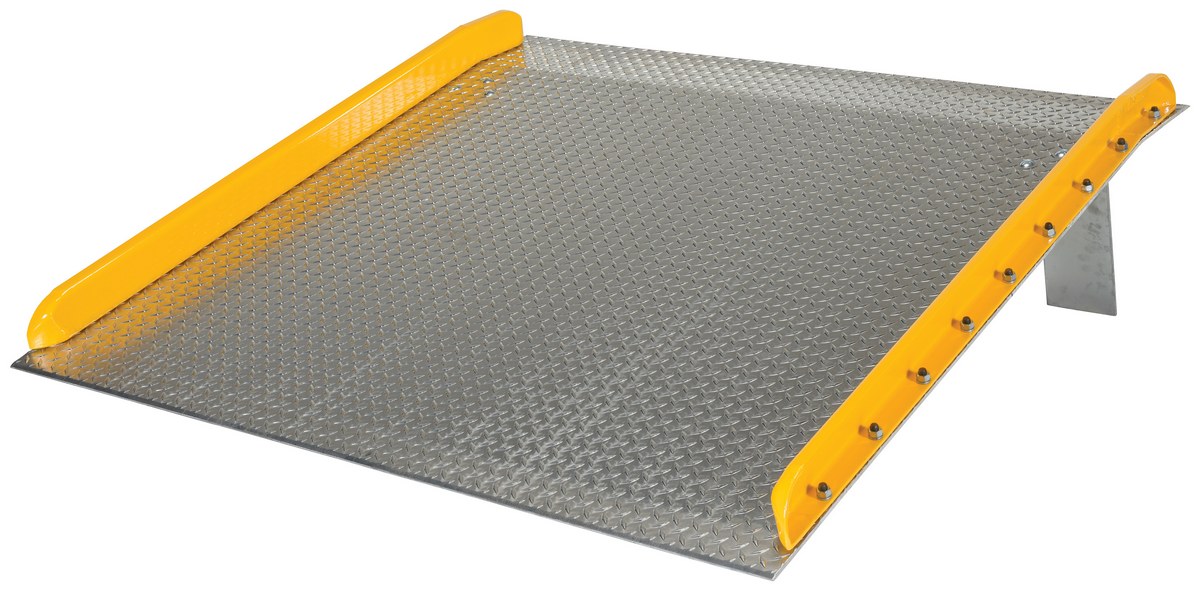

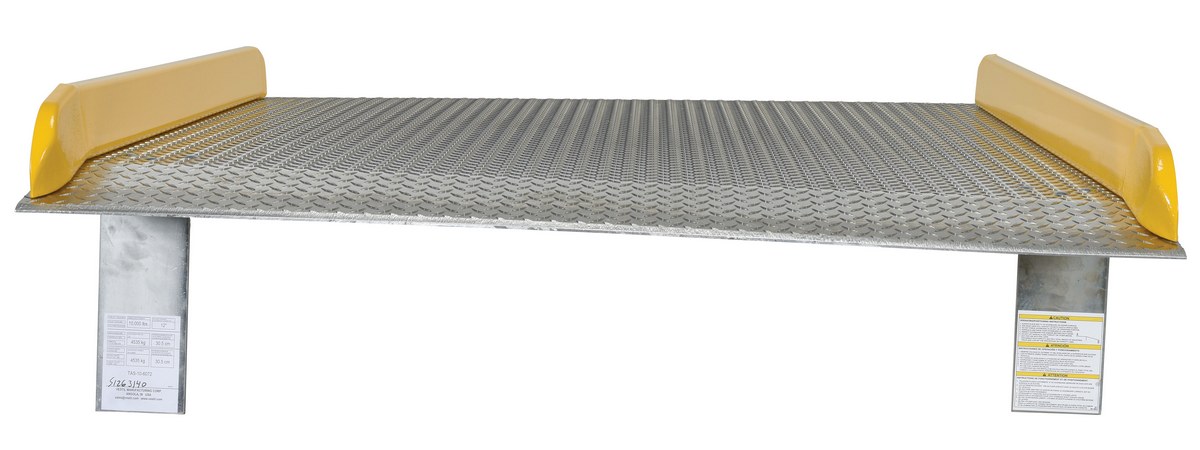

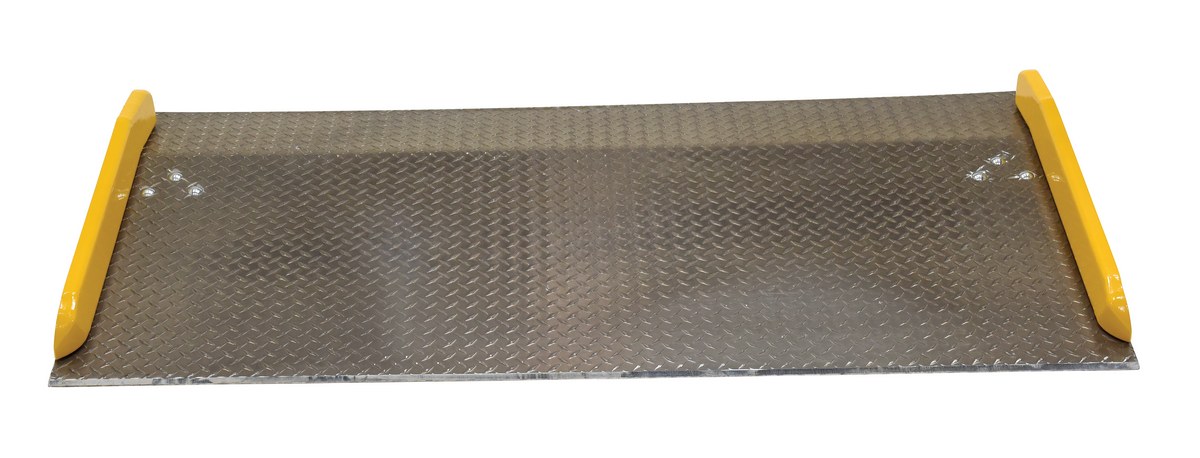

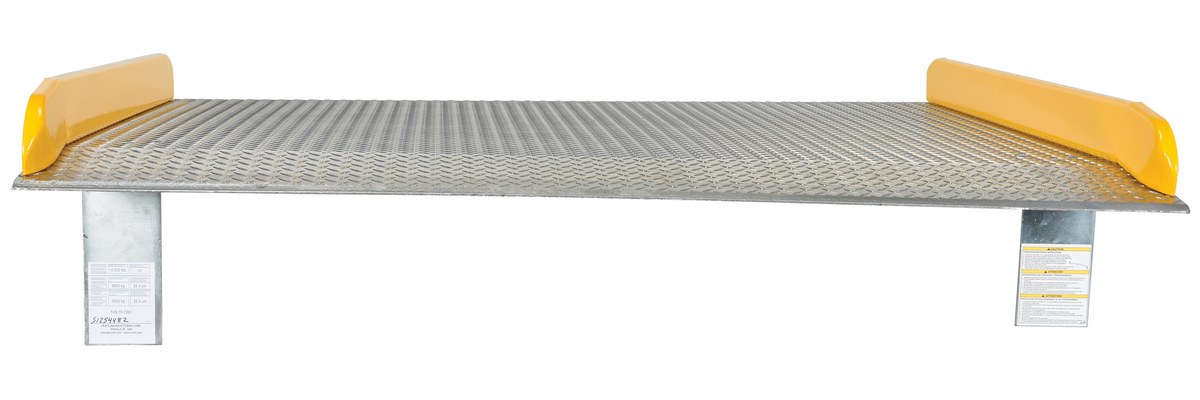

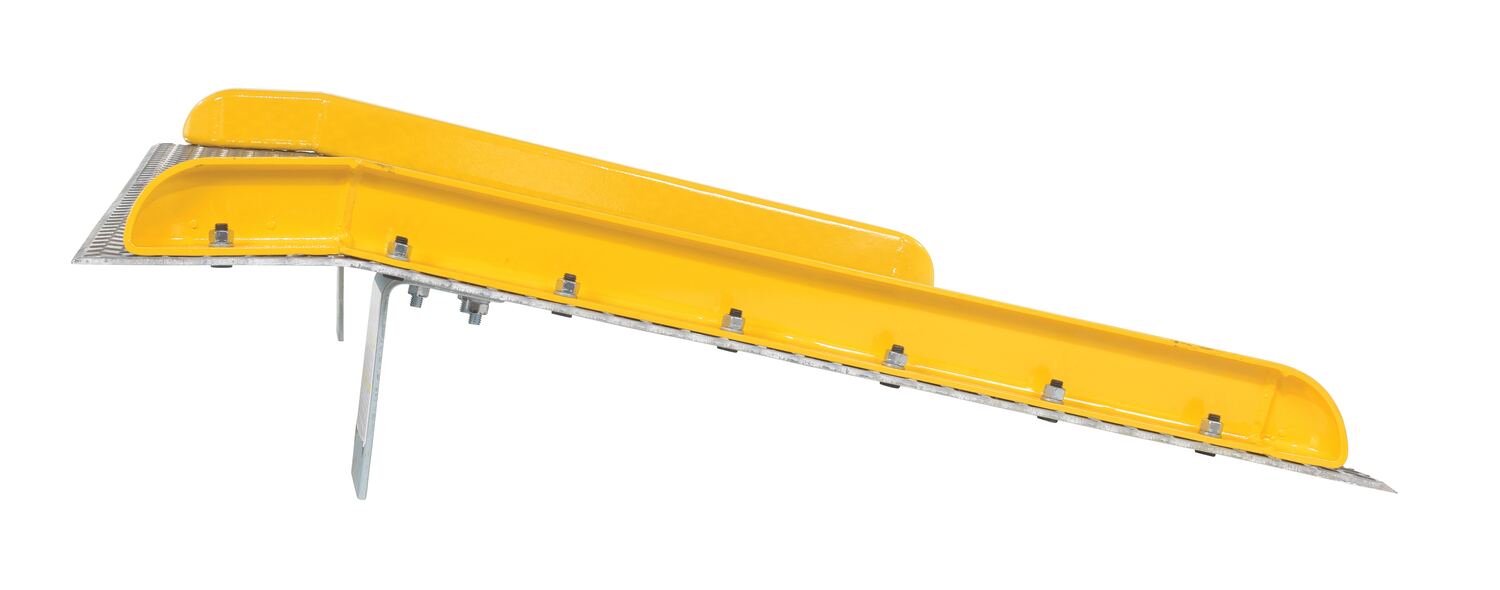

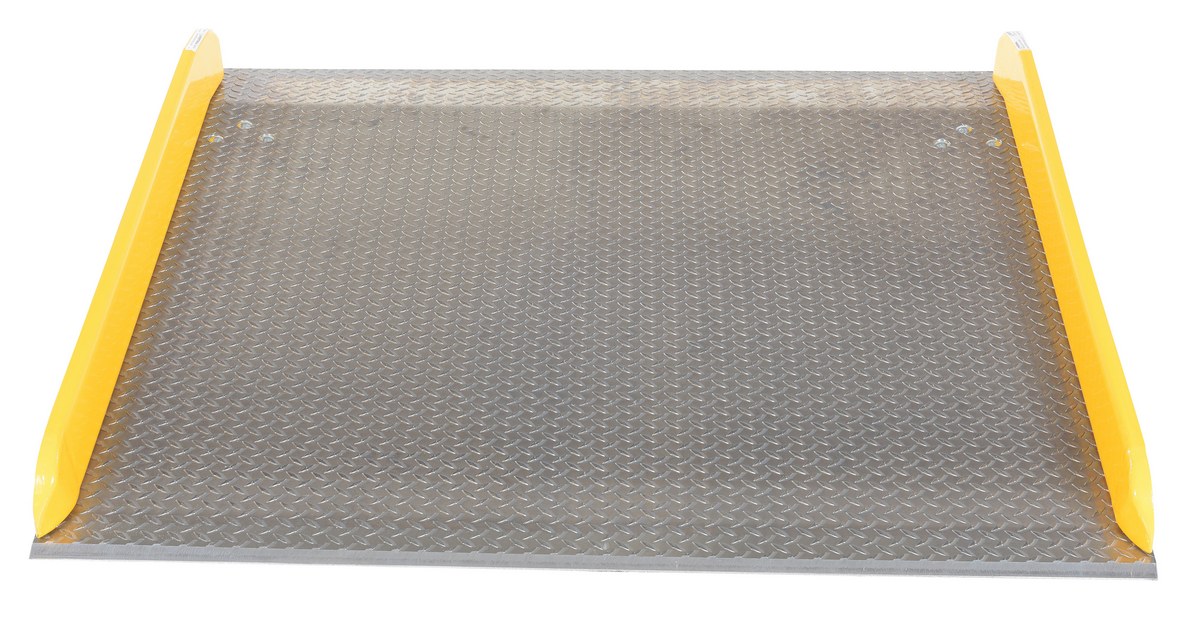

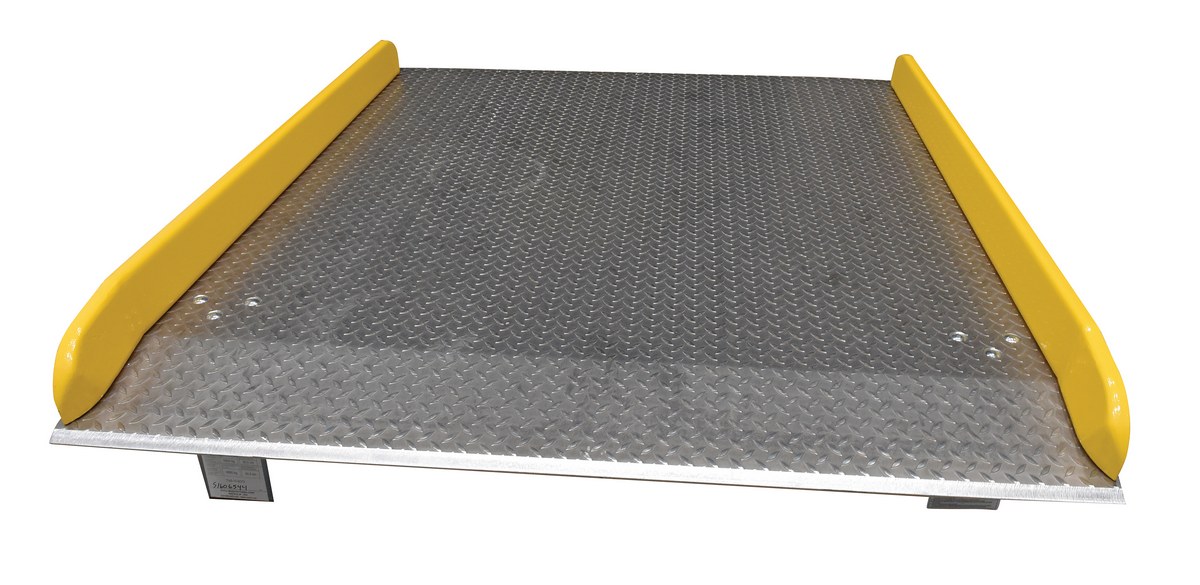

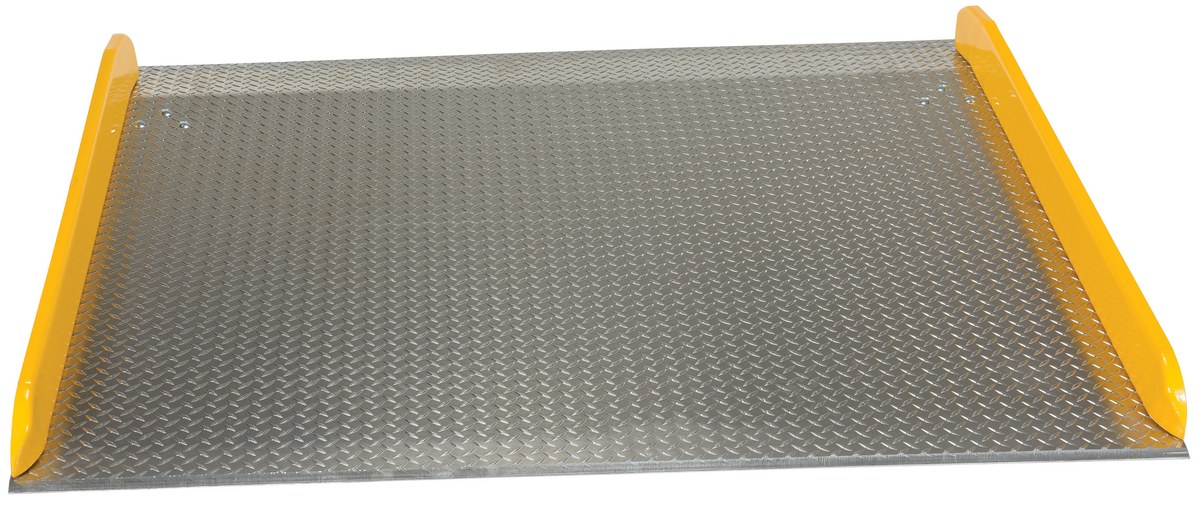

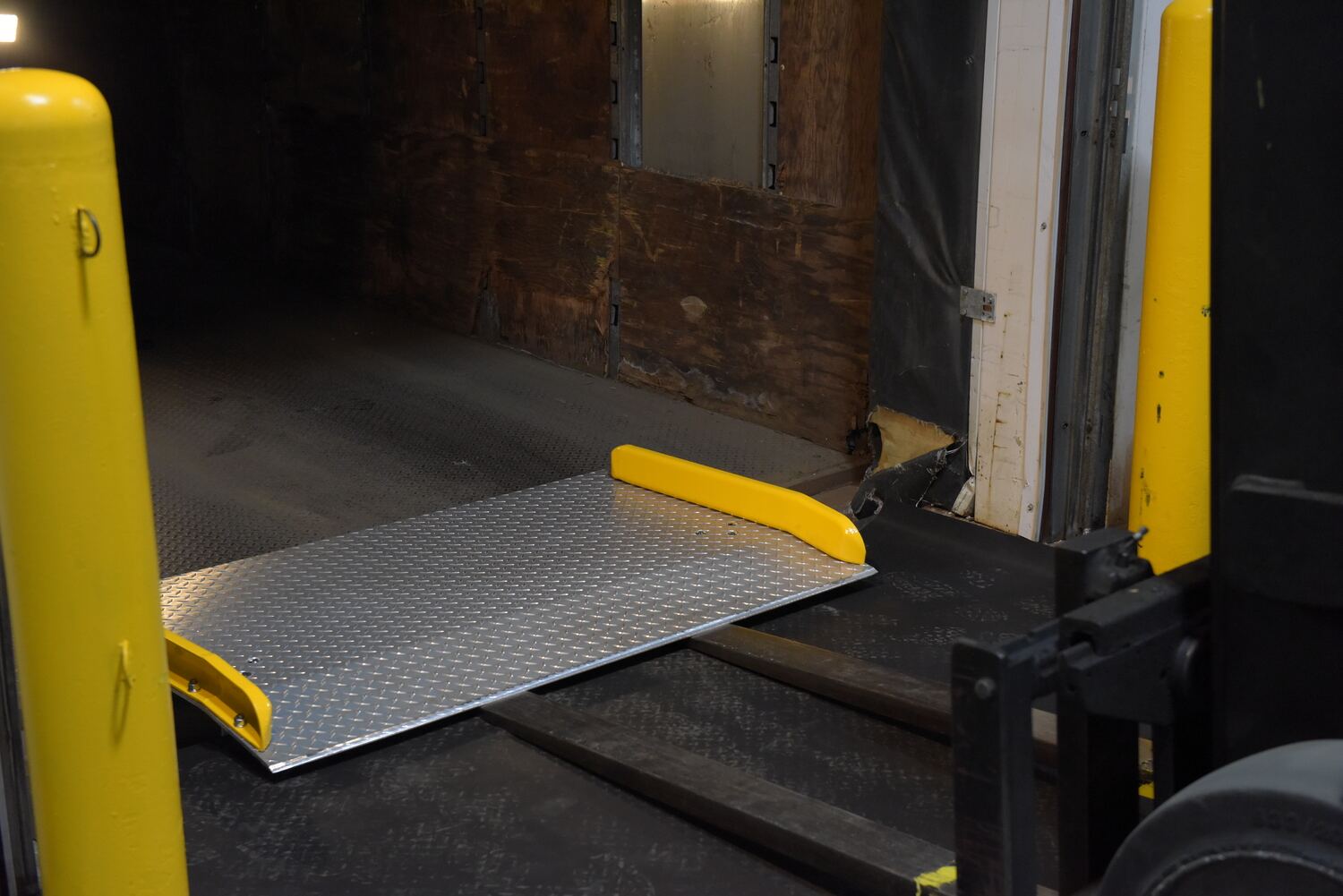

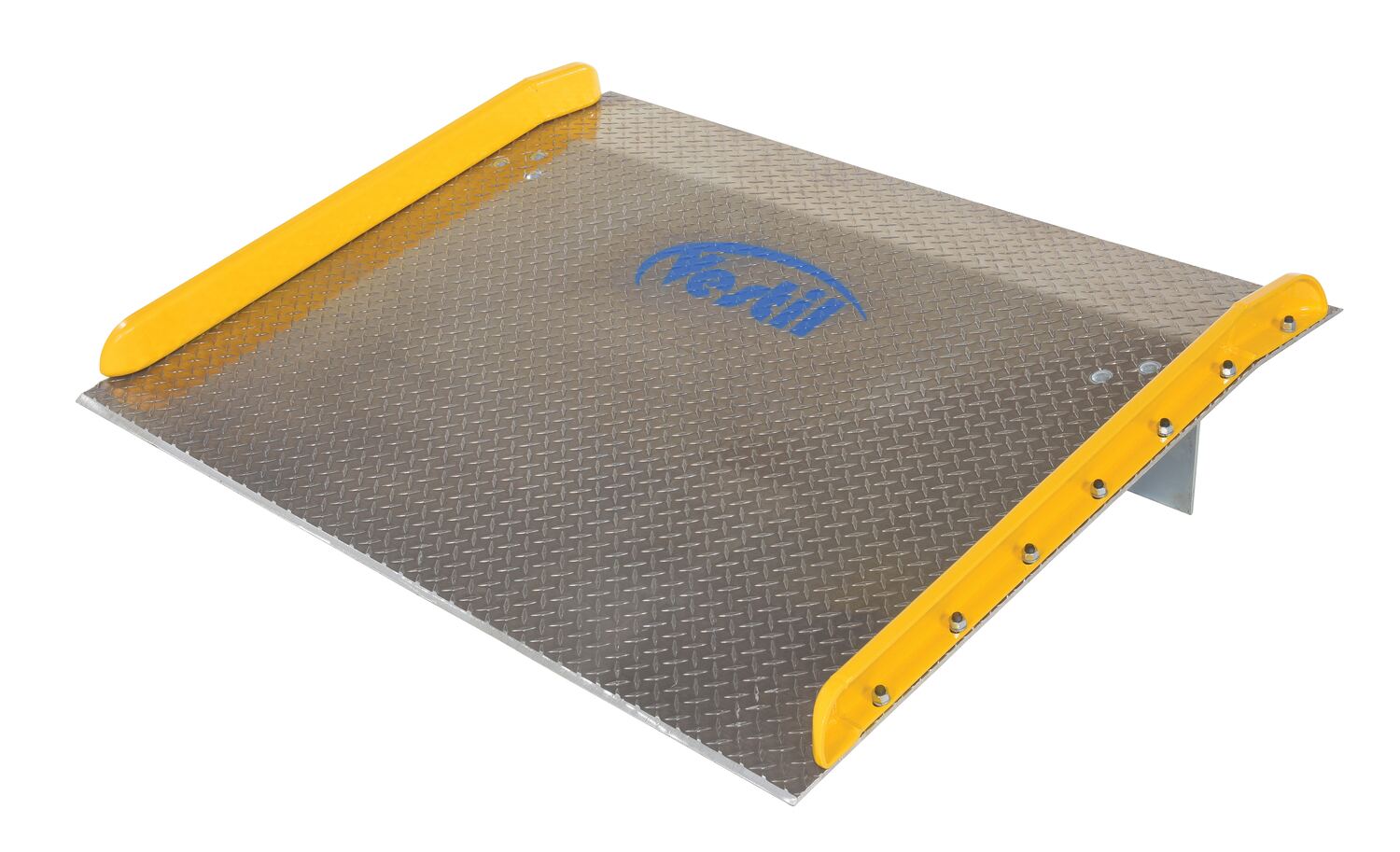

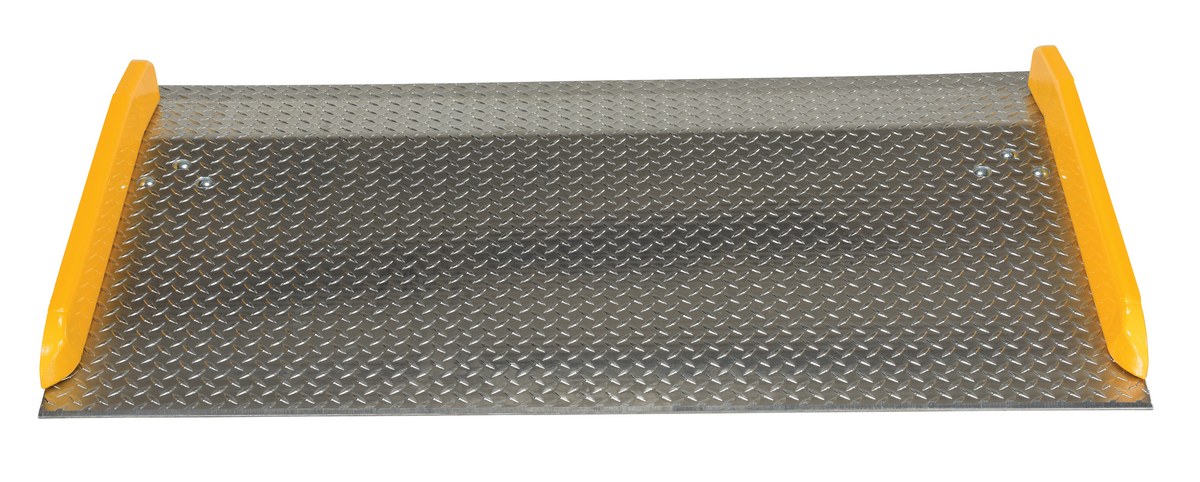

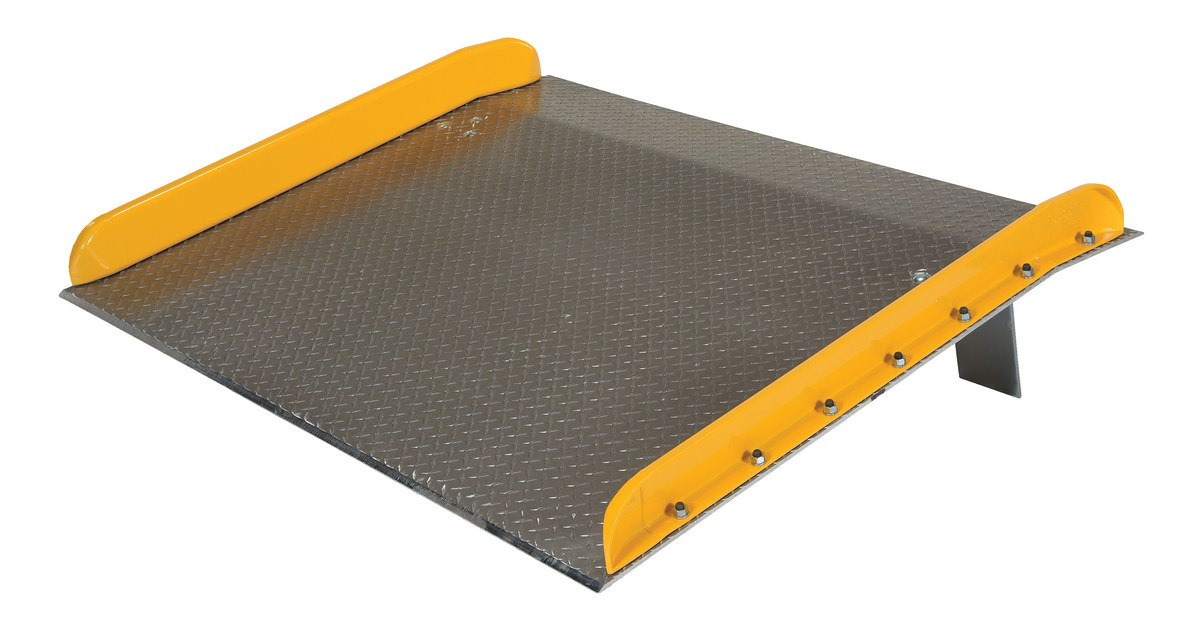

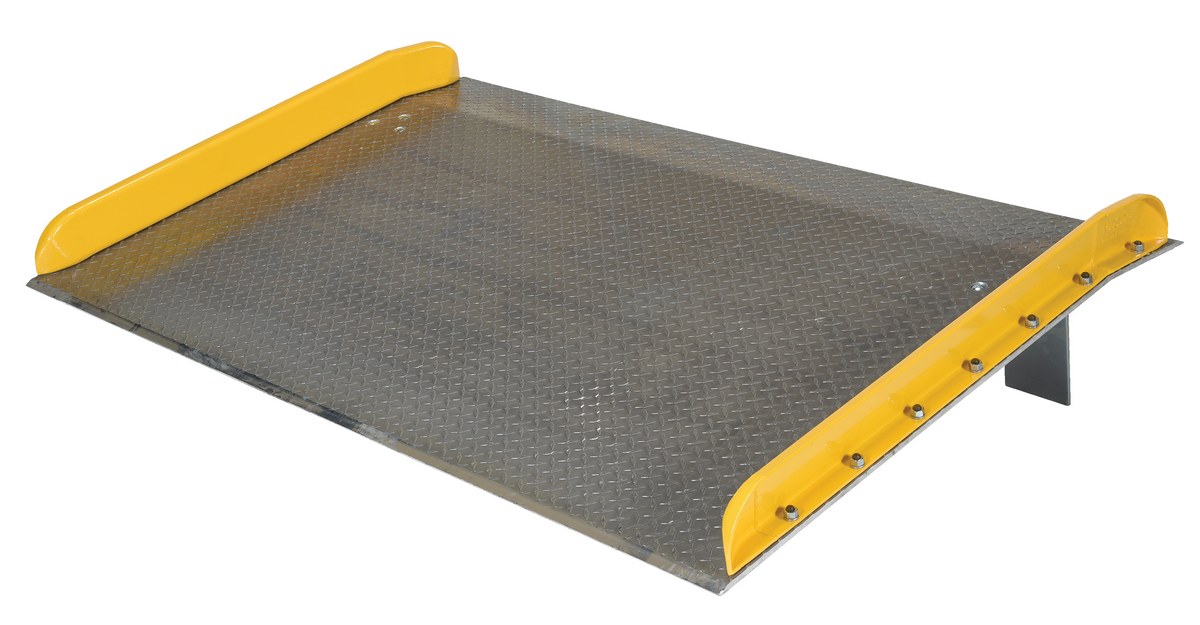

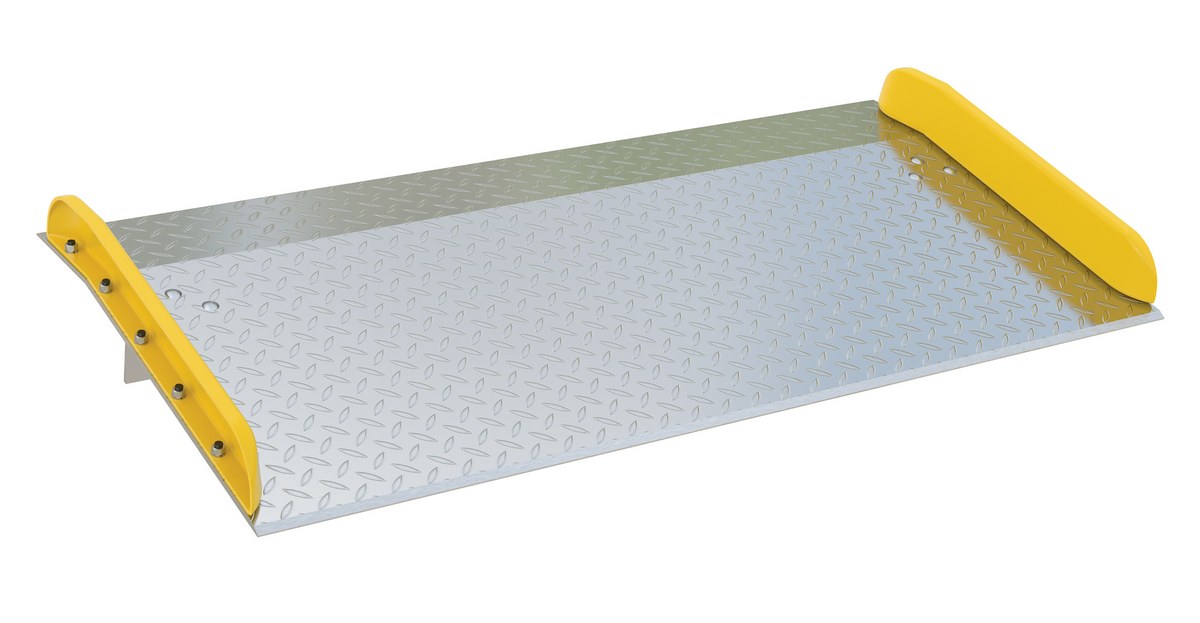

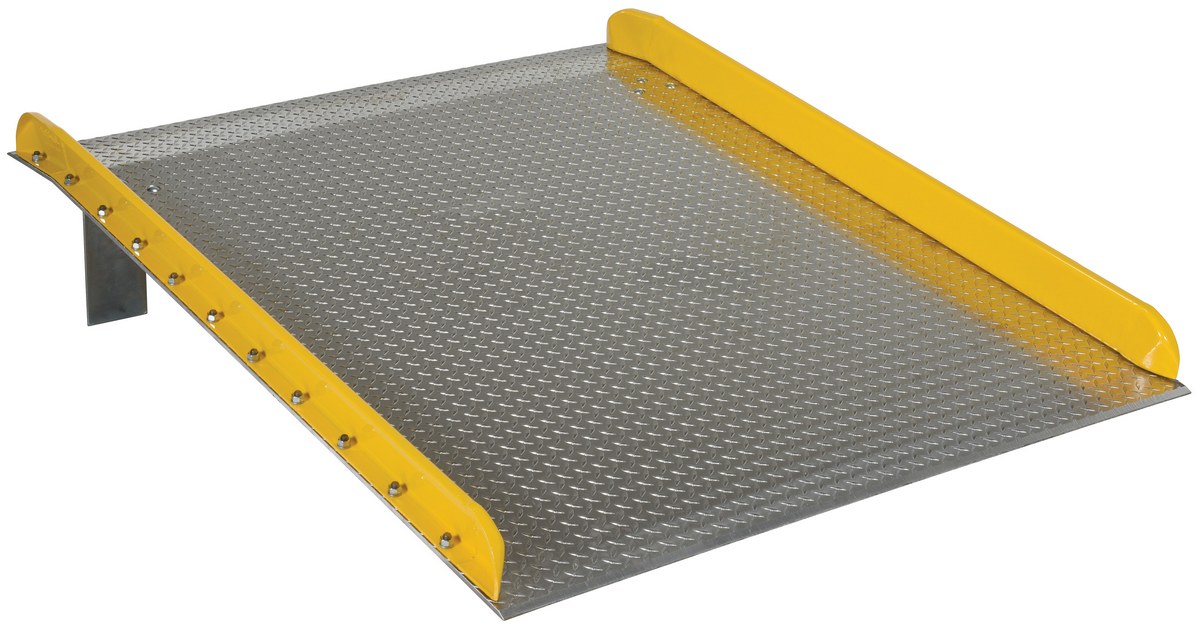

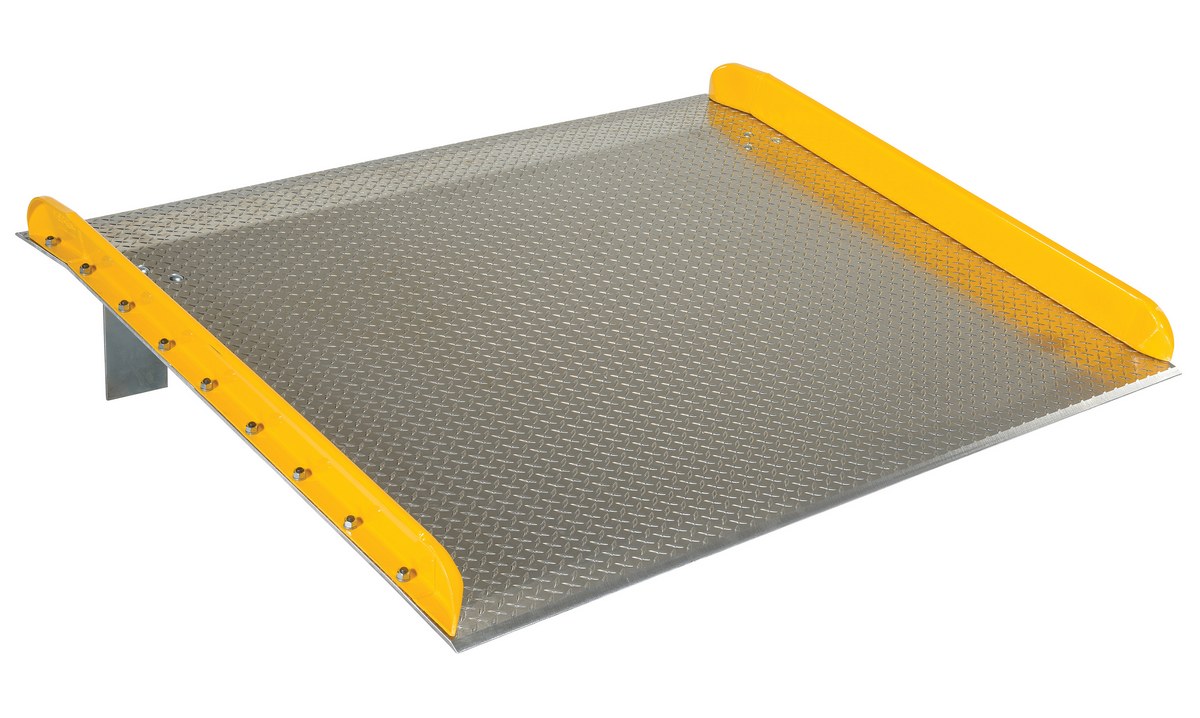

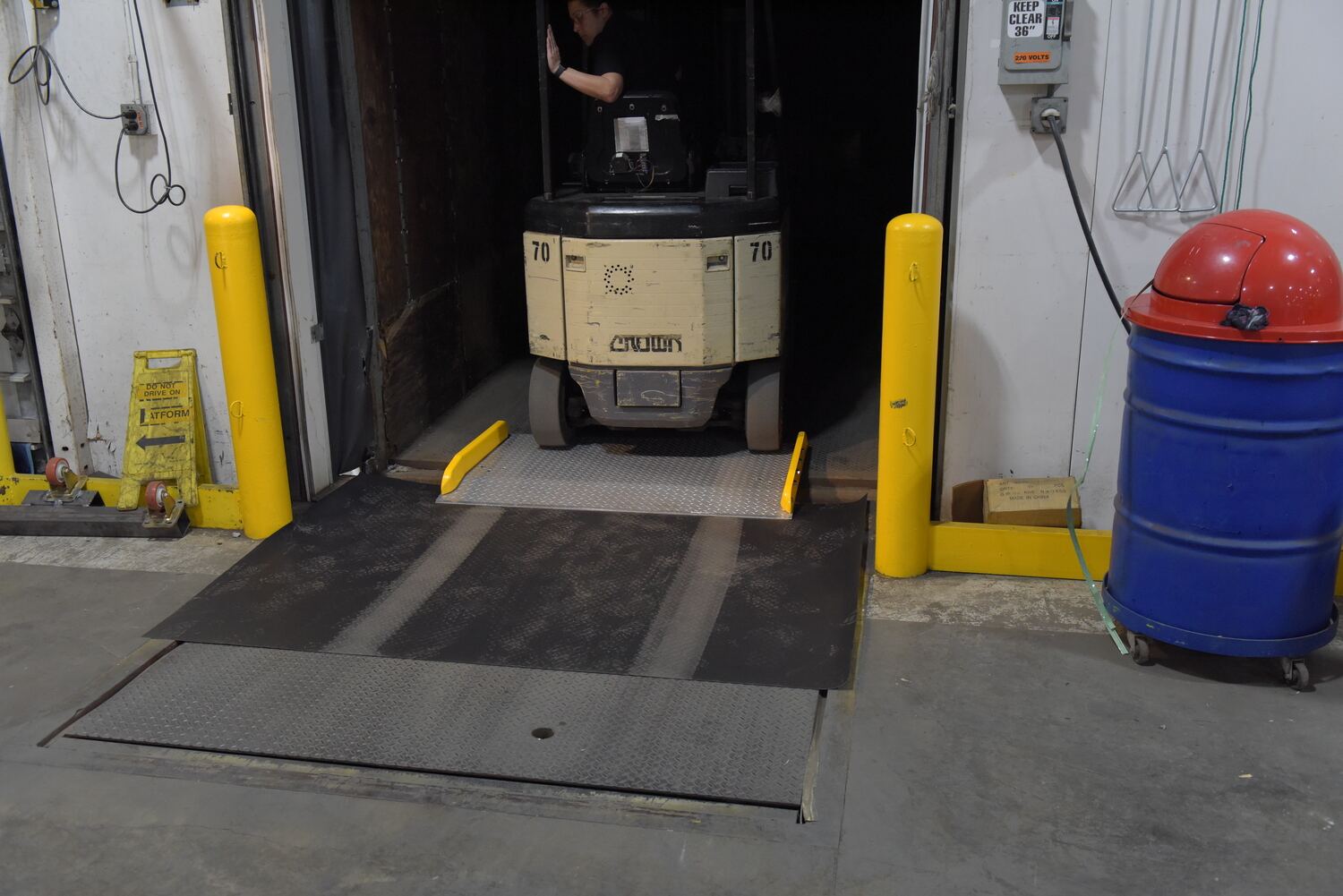

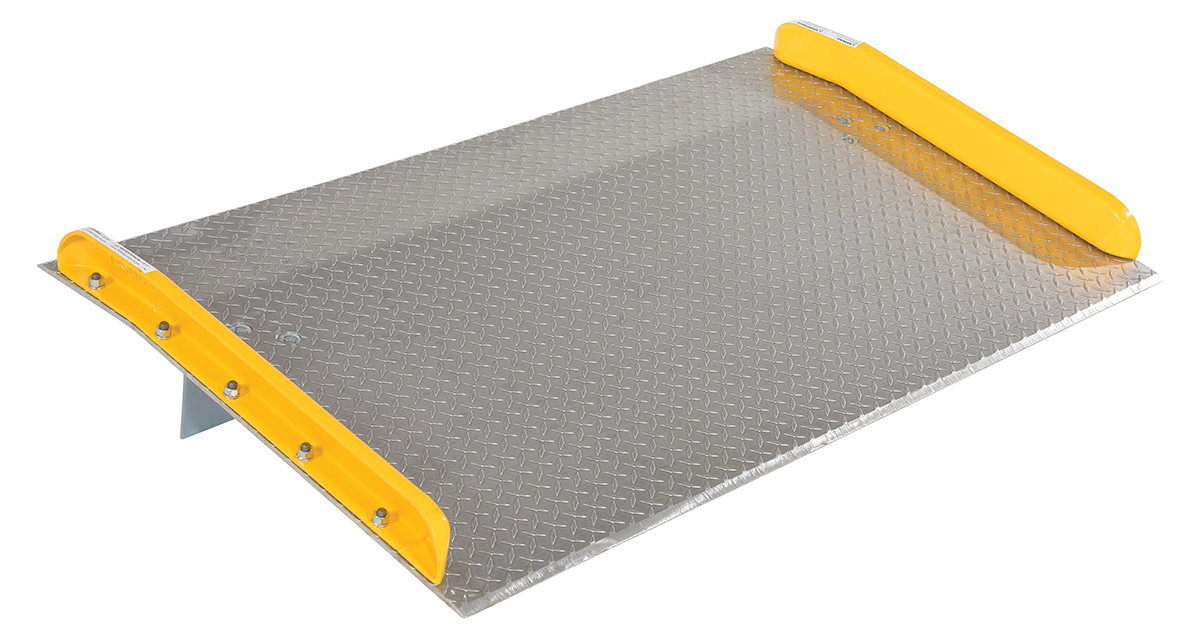

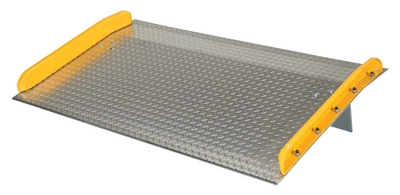

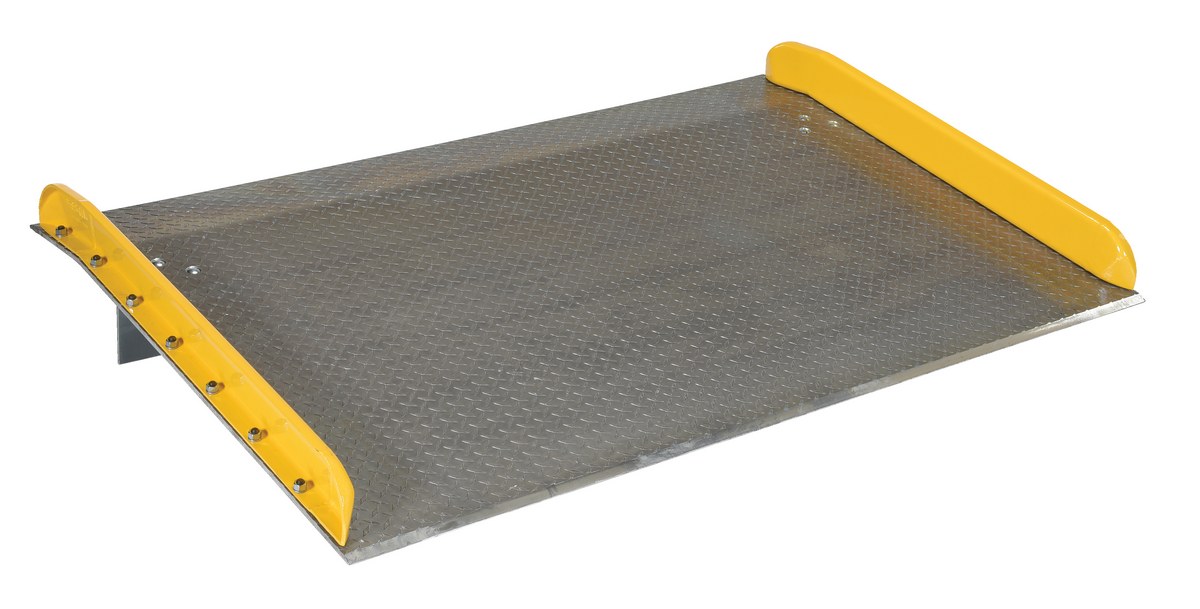

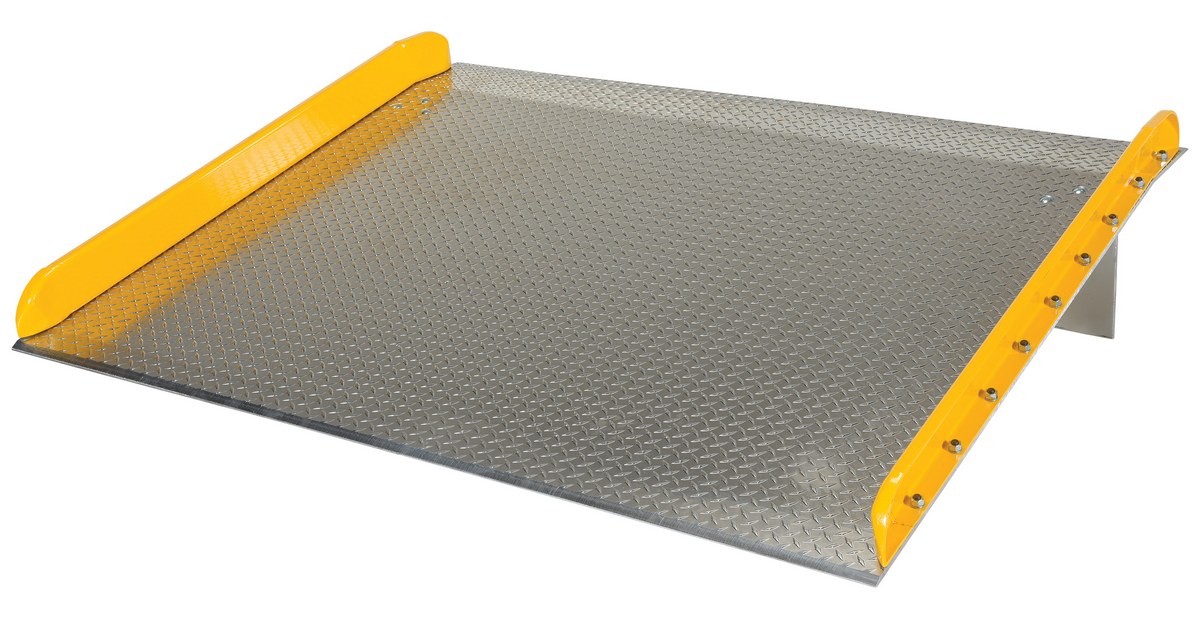

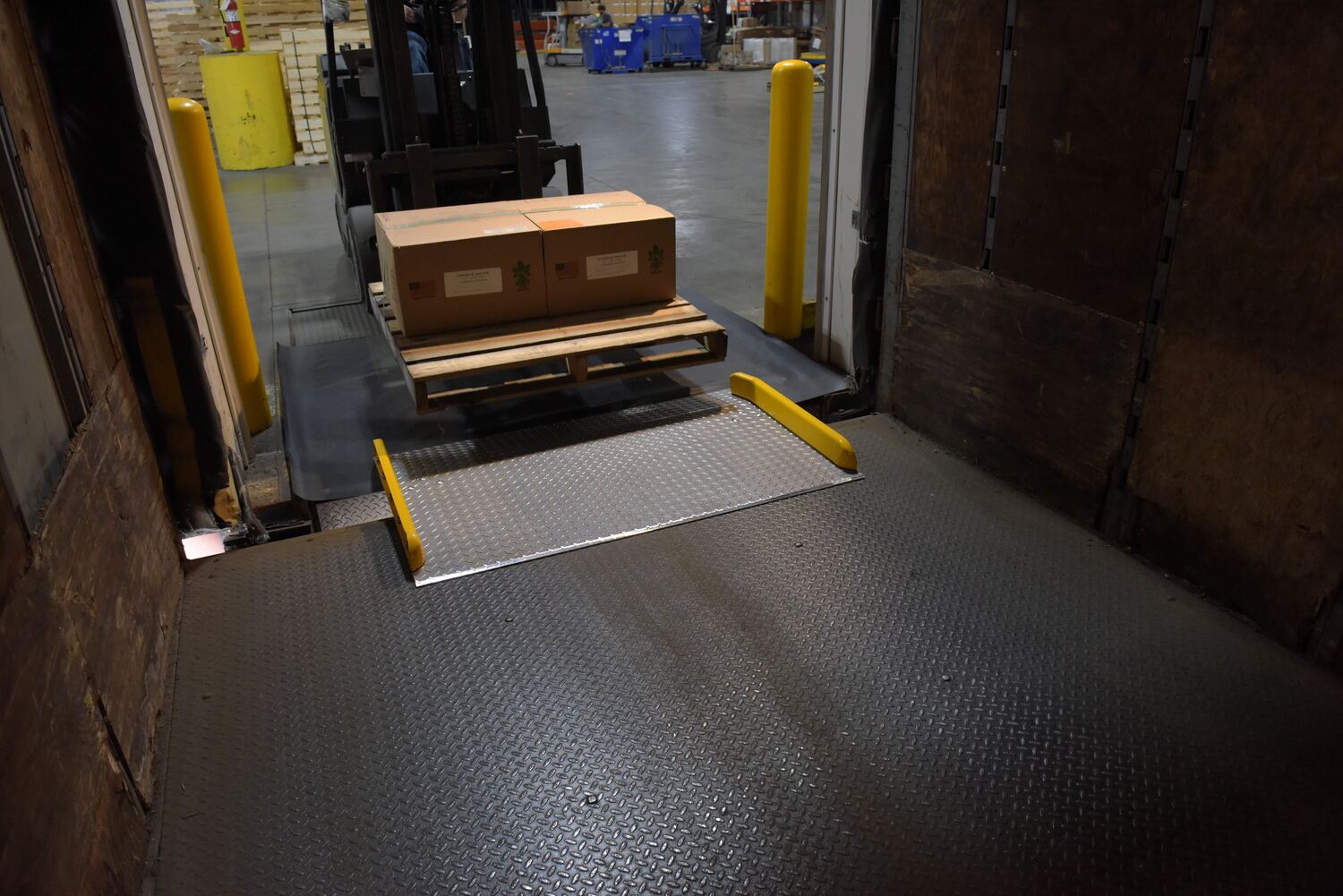

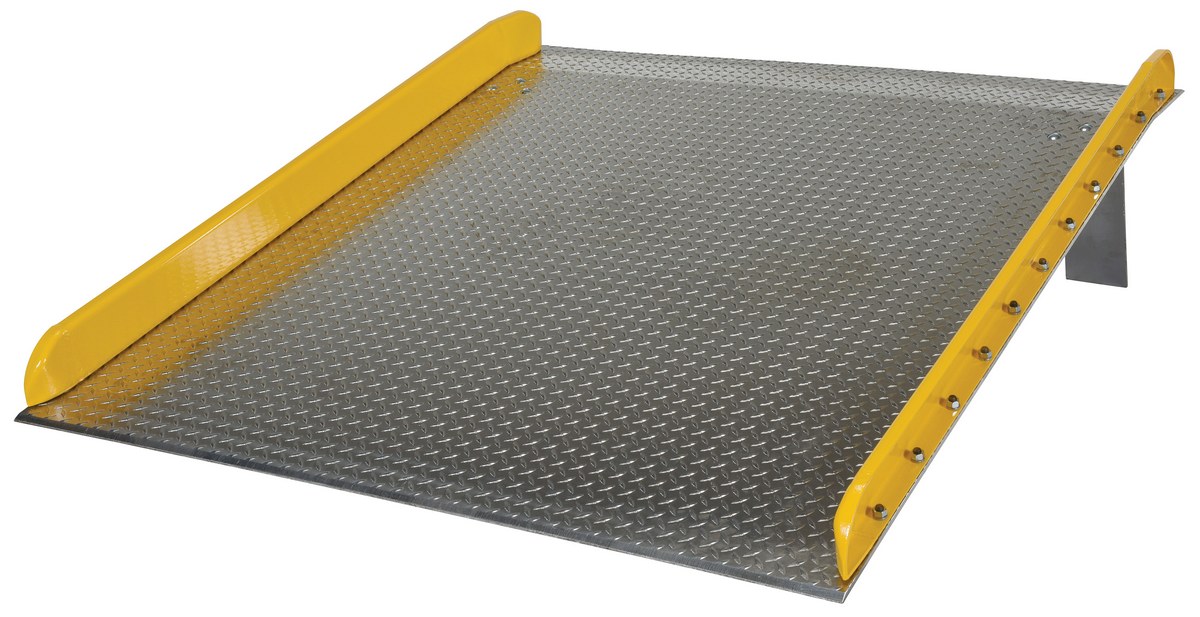

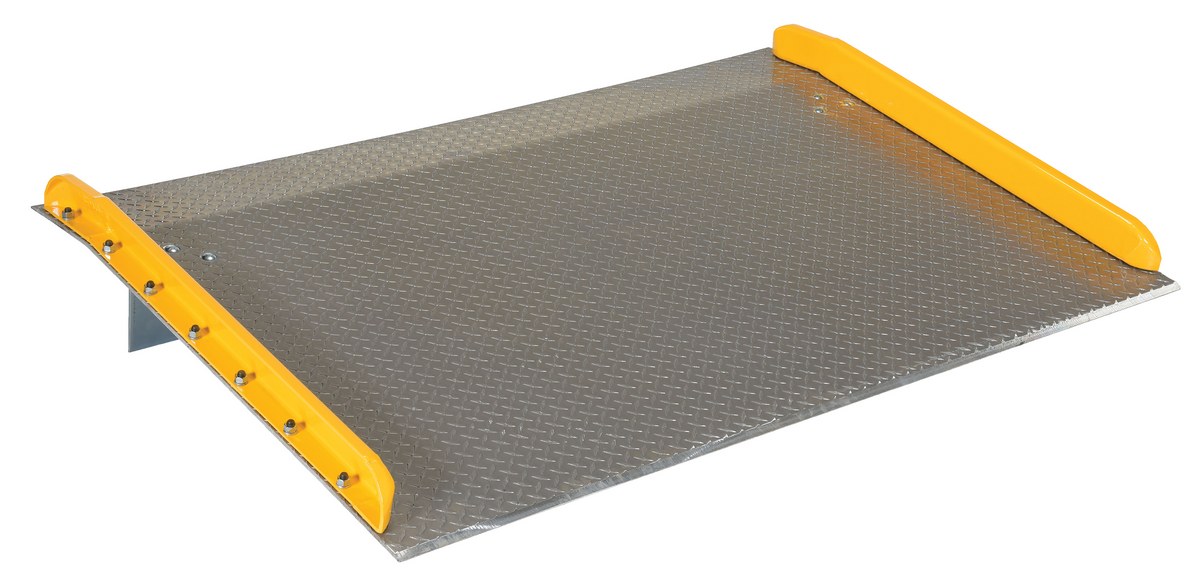

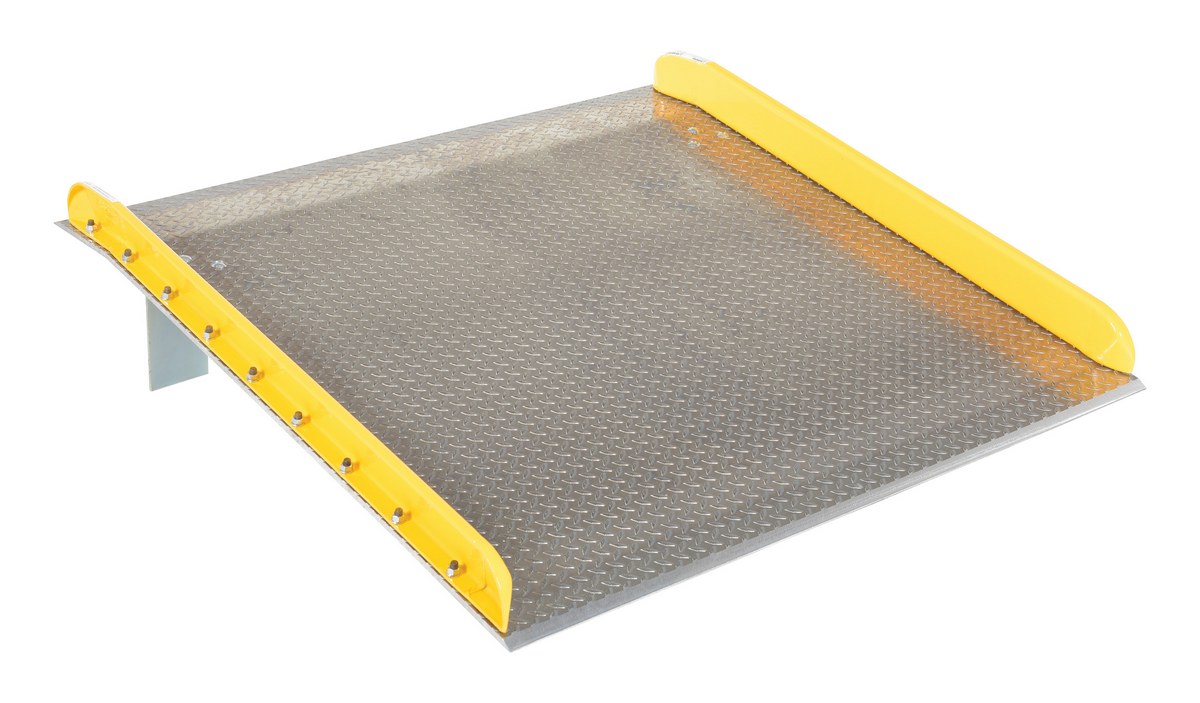

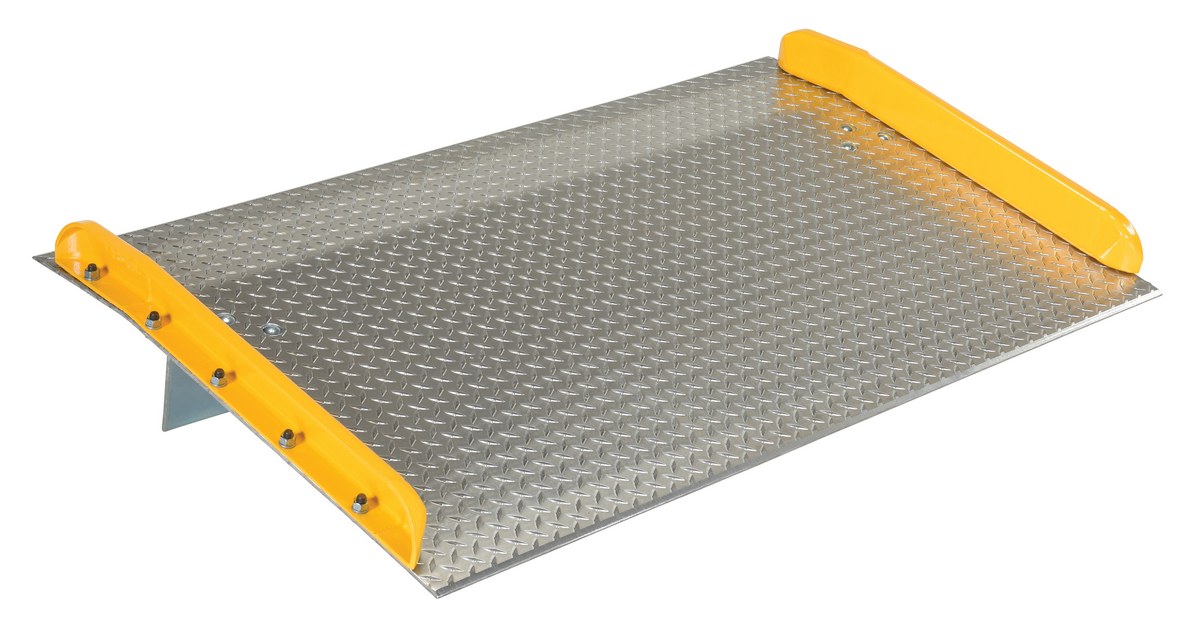

Aluminum Truck Dockboards with Steel Safety Curbs

SERIES: TAS

Aluminum Truck Dockboards with Steel Safety Curbs are designed for portability and safety. The deck is made of tough high strength aluminum diamond tread plate. The edges are beveled for smooth entry and exit. Safety curbs are yellow baked-in powder coated for toughness and are constructed of steel with cast tapered ends. Steel legs are bolted on for increased durability. Legs are located 11" from the beveled edge. The legs are canted for easier fork truck portability. The bend is 11 degrees and 9" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled fork trucks order dockboard with capacity at least four-times the lifting capacity of fork truck.

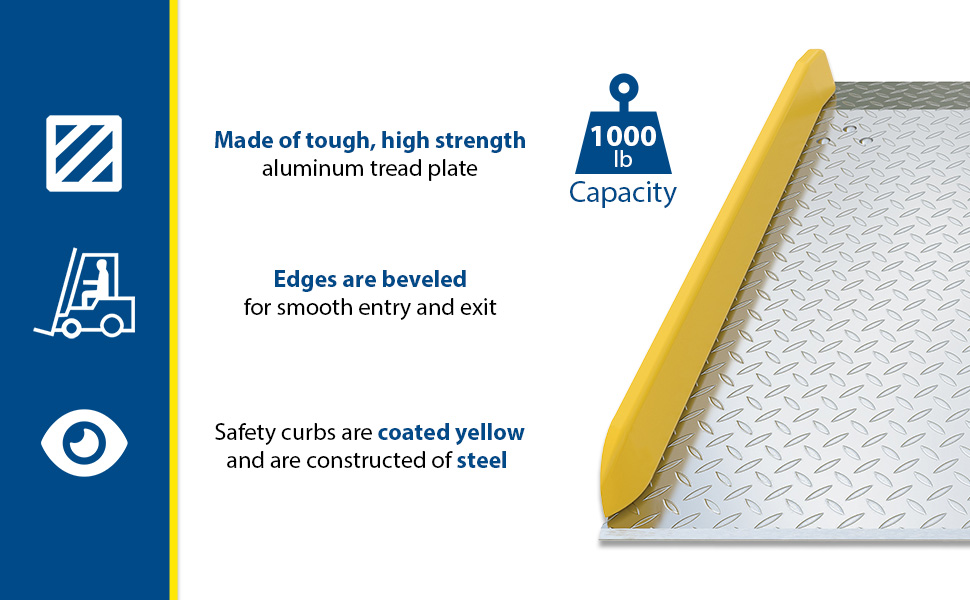

High-strength aluminum tread plate material is durable yet lightweight

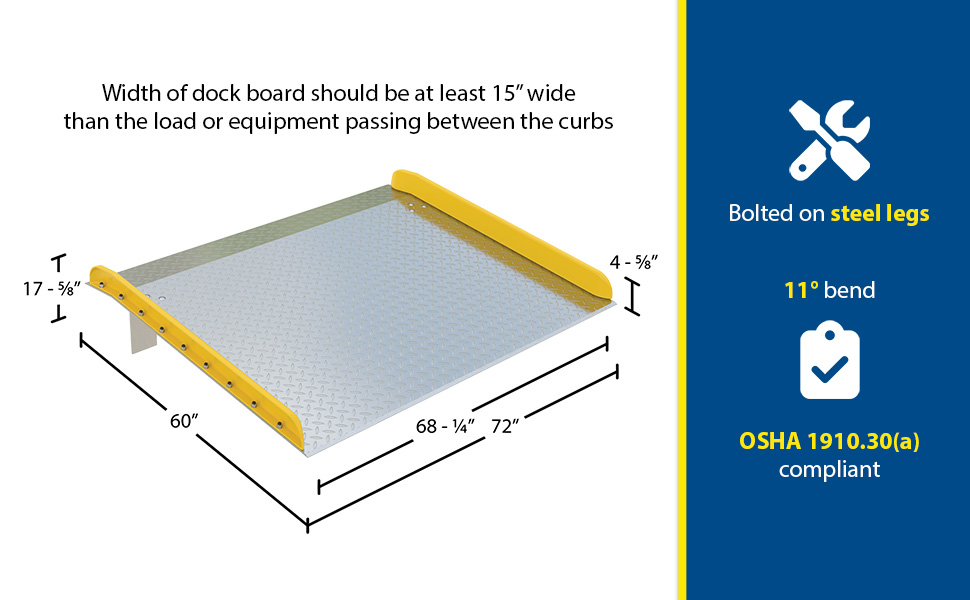

Zinc-plated locking legs are within OSHA compliance
Beveled entrance and exit edges allow for smoother transition

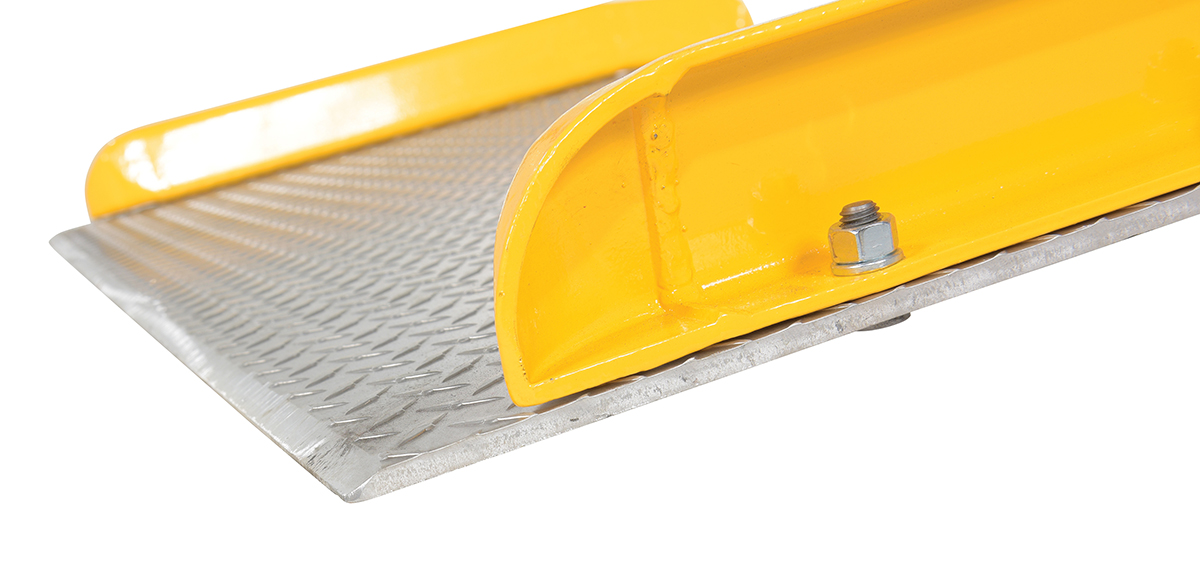

Heavy-duty steel curbs are painted yellow and bolted to deck plate for safer use

High-strength aluminum tread plate material is durable yet lightweight
Zinc-plated locking legs are within OSHA compliance
Beveled entrance and exit edges allow for smoother transition
Heavy-duty steel curbs are painted yellow and bolted to deck plate for safer use

Other Dockplates & Dockboards

Aluminum Mini Dockplates

Aluminum Truck Dockboards with Steel Safety Curbs

Aluminum Truck Dockboards (Welded Aluminum Curbs)

Aluminum Hand Truck Dockboards

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

TAS-20-7248

TAS-15-7260

TAS-20-7248

TAS-10-6072

TAS-10-6036

TAS-15-6048

TAS-20-6036

TAS-10-6036

TAS-15-6072

TAS-10-6036

TAS-10-7248

TAS-20-6072

TAS-10-7248

TAS-15-6048

TAS-10-7236

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

Model #		Description	Attributes	Net Wt. (lbs)

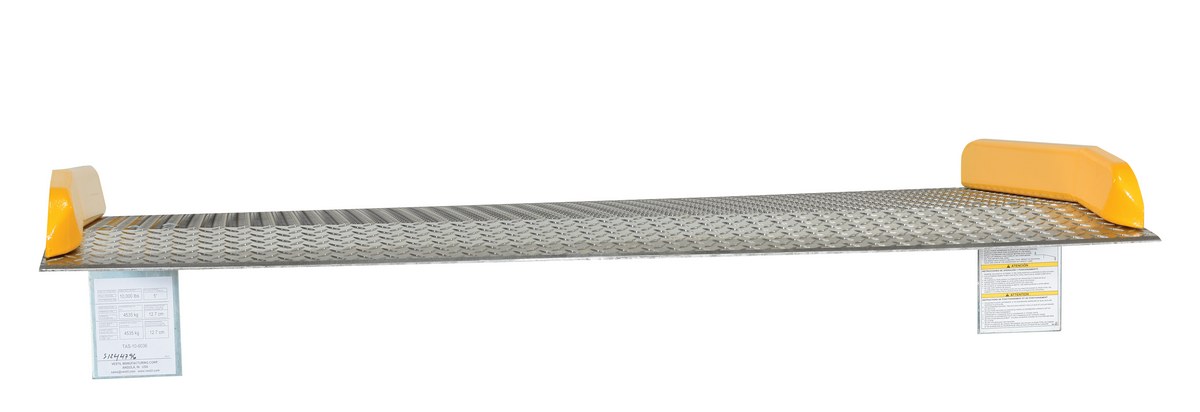

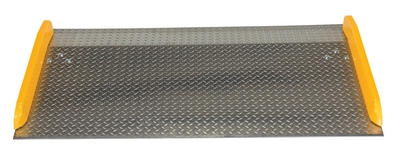

TAS-10-6036	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In. x 36 In. 10,000 Lb. Capacity Silver	Uniform Capacity (lb.): 10000 Height Difference at 11 degree/19 percent (in.): 5	112
TAS-10-6048	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In. x 48 In. 10,000 Lb. Capacity Silver	Uniform Capacity (lb.): 10000 Height Difference at 11 degree/19 percent (in.): 7	129
TAS-10-6060	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In. x 60 In. 10,000 Lb. Capacity Silver	Uniform Capacity (lb.): 10000 Height Difference at 11 degree/19 percent (in.): 10	160
TAS-10-6072	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In. x 72 In. 10,000 Lb. Capacity Silver	Uniform Capacity (lb.): 10000 Height Difference at 11 degree/19 percent (in.): 12	220

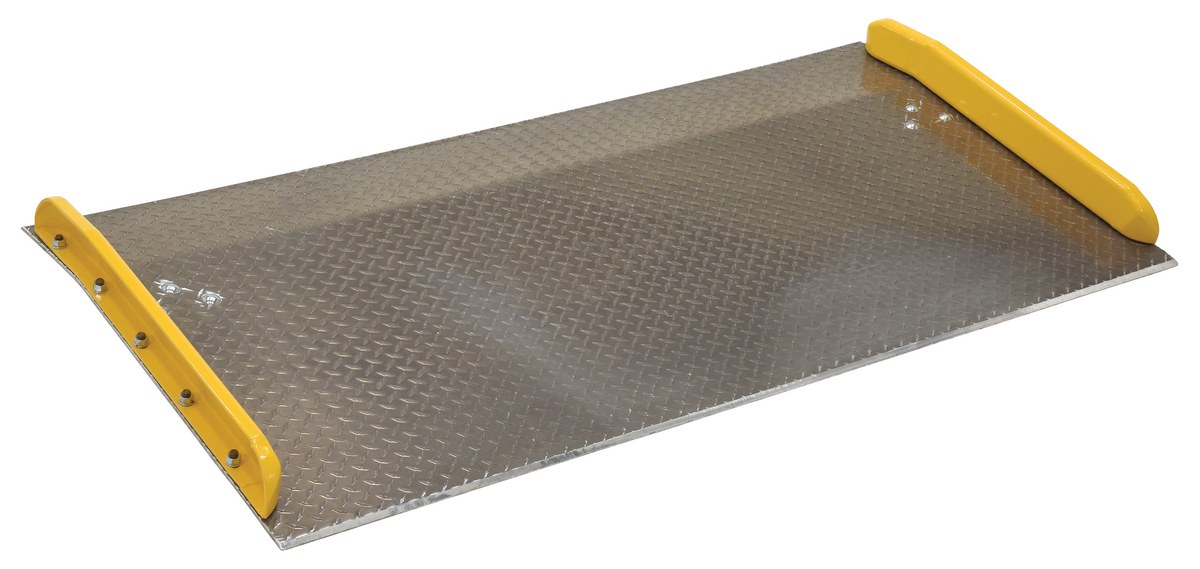

TAS-10-7236	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In. x 36 In. 10,000 Lb. Capacity Silver	Uniform Capacity (lb.): 10000 Height Difference at 11 degree/19 percent (in.): 5	110
TAS-10-7248	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In. x 48 In. 10,000 Lb. Capacity Silver	Uniform Capacity (lb.): 10000 Height Difference at 11 degree/19 percent (in.): 7	157

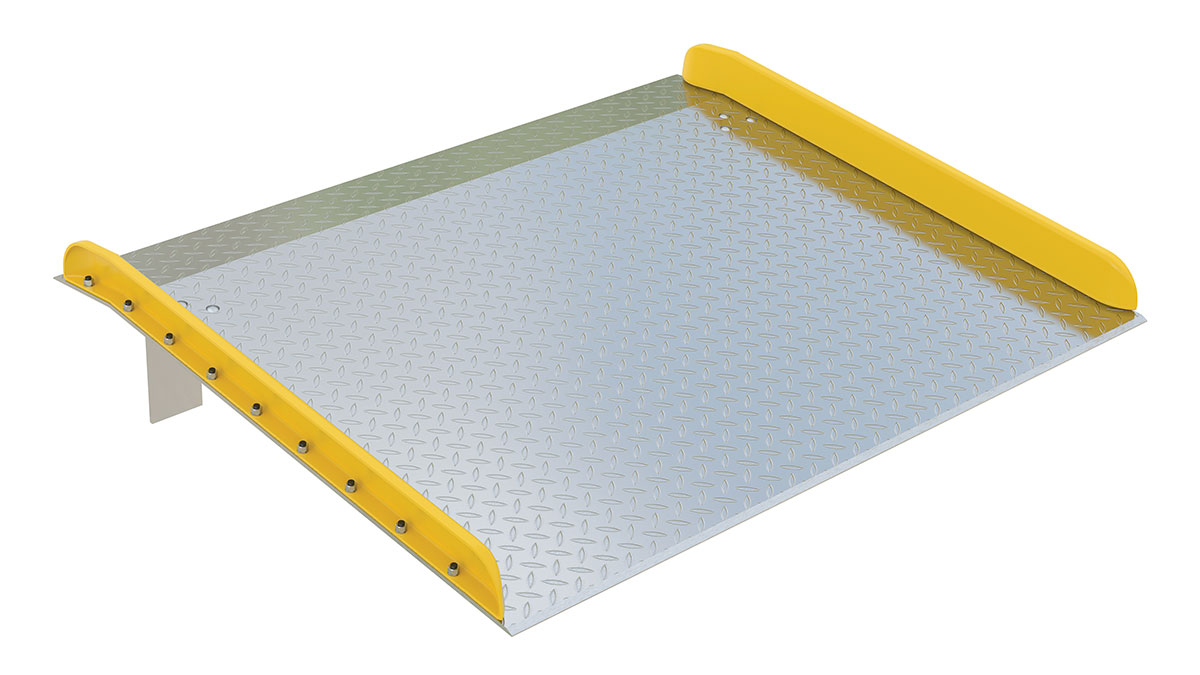

TAS-10-7260	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In. x 60 In. 10,000 Lb. Capacity Silver	Uniform Capacity (lb.): 10000 Height Difference at 11 degree/19 percent (in.): 10	252
TAS-10-7272	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In. x 72 In. 10,000 Lb. Capacity Silver	Uniform Capacity (lb.): 10000 Height Difference at 11 degree/19 percent (in.): 12	380
TAS-15-6036	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In. x 36 In. 15,000 Lb. Capacity Silver	Uniform Capacity (lb.): 15000 Height Difference at 11 degree/19 percent (in.): 5	110
TAS-15-6048	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In. x 48 In. 15,000 Lb. Capacity Silver	Uniform Capacity (lb.): 15000 Height Difference at 11 degree/19 percent (in.): 7	146
TAS-15-6060	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In. x 60 In. 15,000 Lb. Capacity Silver	Uniform Capacity (lb.): 15000 Height Difference at 11 degree/19 percent (in.): 10	220

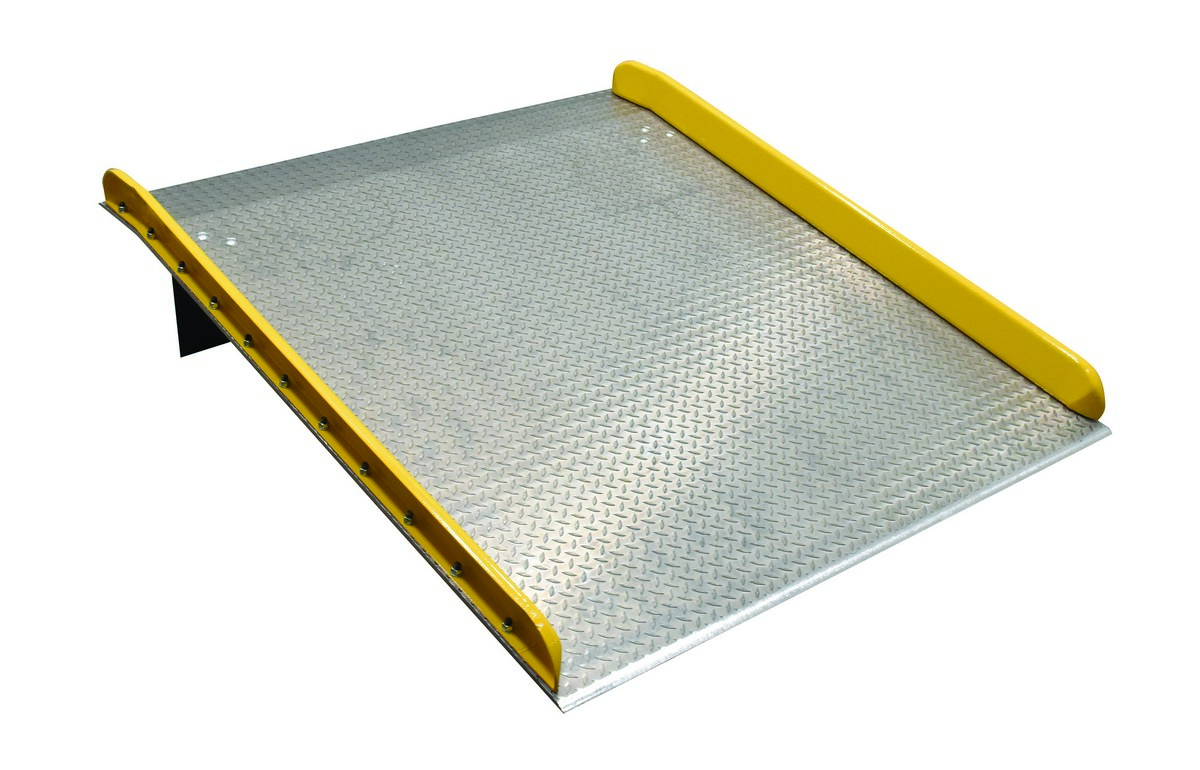

TAS-15-6072	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In. x 72 In. 15,000 Lb. Capacity Silver	Uniform Capacity (lb.): 15000 Height Difference at 11 degree/19 percent (in.): 12	251
TAS-15-7236	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In. x 36 In. 15,000 Lb. Capacity Silver	Uniform Capacity (lb.): 15000 Height Difference at 11 degree/19 percent (in.): 5	123
TAS-15-7248	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In. x 48 In. 15,000 Lb. Capacity Silver	Uniform Capacity (lb.): 15000 Height Difference at 11 degree/19 percent (in.): 7	191
TAS-15-7260	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In. x 60 In. 15,000 Lb. Capacity Silver	Uniform Capacity (lb.): 15000 Height Difference at 11 degree/19 percent (in.): 10	252
TAS-15-7272	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In. x 72 In. 15,000 Lb. Capacity Silver	Uniform Capacity (lb.): 15000 Height Difference at 11 degree/19 percent (in.): 12	381

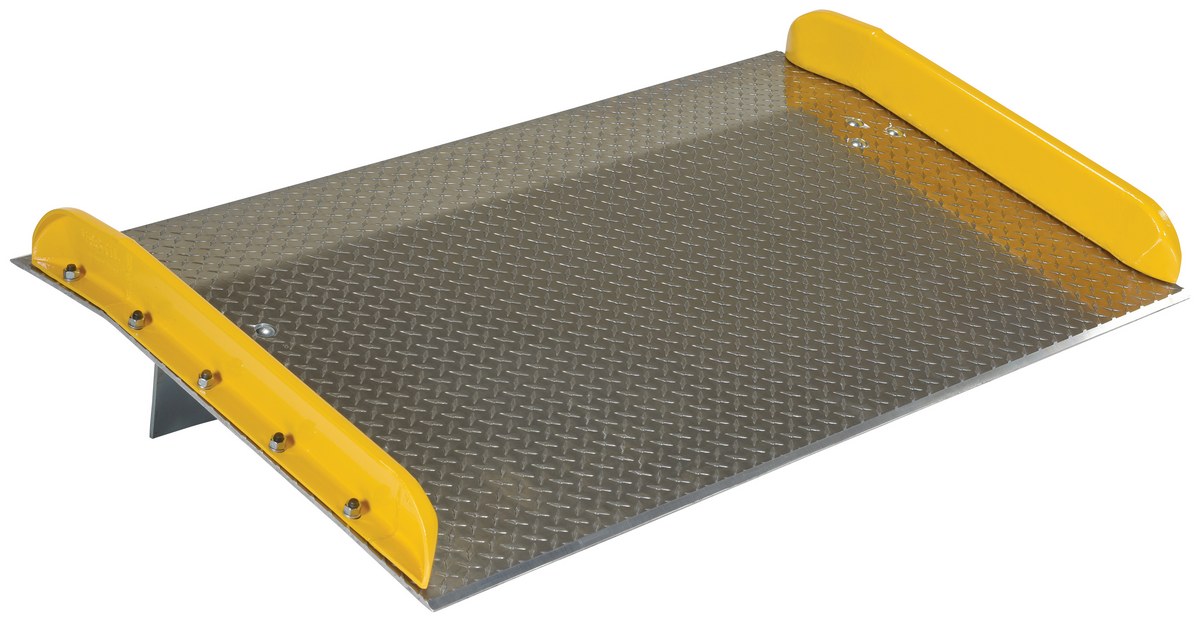

TAS-20-6036	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In. x 36 In. 20,000 Lb. Capacity Silver	Uniform Capacity (lb.): 20000 Height Difference at 11 degree/19 percent (in.): 5	122
TAS-20-6048	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In. x 48 In. 20,000 Lb. Capacity Silver	Uniform Capacity (lb.): 20000 Height Difference at 11 degree/19 percent (in.): 7	196
TAS-20-6060	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In x 60 In 20,000 Lb. Capacity Silver	Uniform Capacity (lb.): 20000 Height Difference at 11 degree/19 percent (in.): 10	230
TAS-20-6072	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 60 In. x 72 In. 20,000 Lb. Capacity Silver	Uniform Capacity (lb.): 20000 Height Difference at 11 degree/19 percent (in.): 12	275
TAS-20-7236	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In. x 36 In. 20,000 Lb. Capacity Silver	Uniform Capacity (lb.): 20000 Height Difference at 11 degree/19 percent (in.): 5	138
TAS-20-7248	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In. x 48 In. 20,000 Lb. Capacity Silver	Uniform Capacity (lb.): 20000 Height Difference at 11 degree/19 percent (in.): 7	216
TAS-20-7260	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In. x 60 In. 20,000 Lb. Capacity Silver	Uniform Capacity (lb.): 20000 Height Difference at 11 degree/19 percent (in.): 10	287
TAS-20-7272	90 Days Limited Warranty	Aluminum Dock Board Steel Curb 72 In x 72 In 20,000 Lb. Capacity Silver	Uniform Capacity (lb.): 20000 Height Difference at 11 degree/19 percent (in.): 12	380

* Custom Sizes Available As Special Order

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

TAS-10-6036

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 5

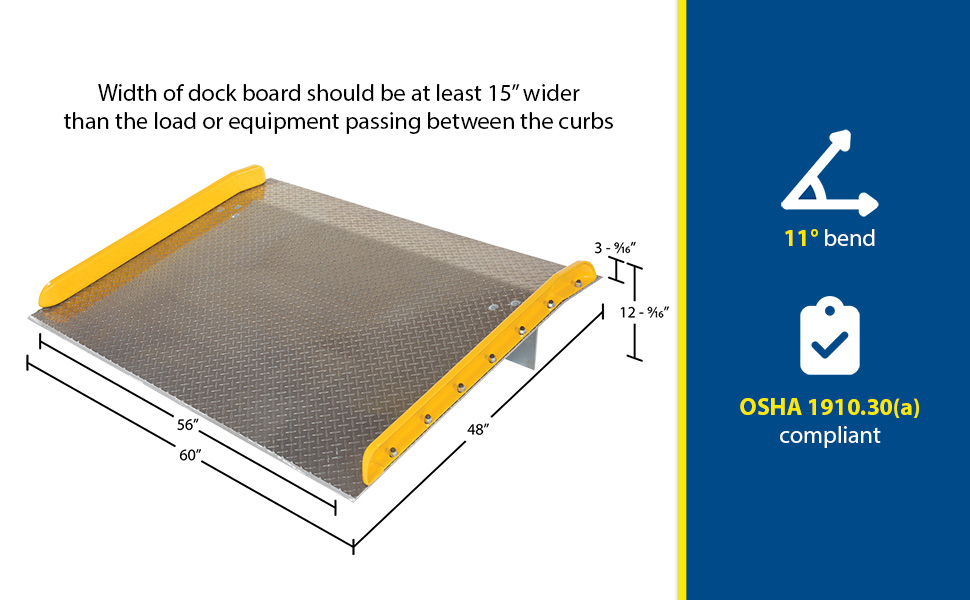

TAS-10-6048

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 7

TAS-10-6060

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 10

TAS-10-6072

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 10000
Height Difference at 11 degree/19 percent (in.): 12

TAS-10-7236

TAS-10-7248

TAS-10-7260

TAS-10-7272

TAS-15-6036

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 5

TAS-15-6048

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 7

TAS-15-6060

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 10

TAS-15-6072

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 15000
Height Difference at 11 degree/19 percent (in.): 12

TAS-15-7236

TAS-15-7248

TAS-15-7260

TAS-15-7272

TAS-20-6036

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 5

TAS-20-6048

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 7

TAS-20-6060

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 10

TAS-20-6072

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12
Uniform Capacity (lb.): 20000
Height Difference at 11 degree/19 percent (in.): 12

TAS-20-7236

TAS-20-7248

TAS-20-7260

TAS-20-7272

For More Details of the Option Click the Red Model Button

HDL-TAS	90 Days Limited Warranty	Steel Curb Handle Kit For Aluminum Dock Board Models	Attachment Method:	2
LC-TAS-48-66	30 Days Limited Warranty	Steel Curb Lifting Chains 42 In. Length for Steel Dock Boards Silver	Chain Length (in.): 42 Chain Diameter (in.): .25	8

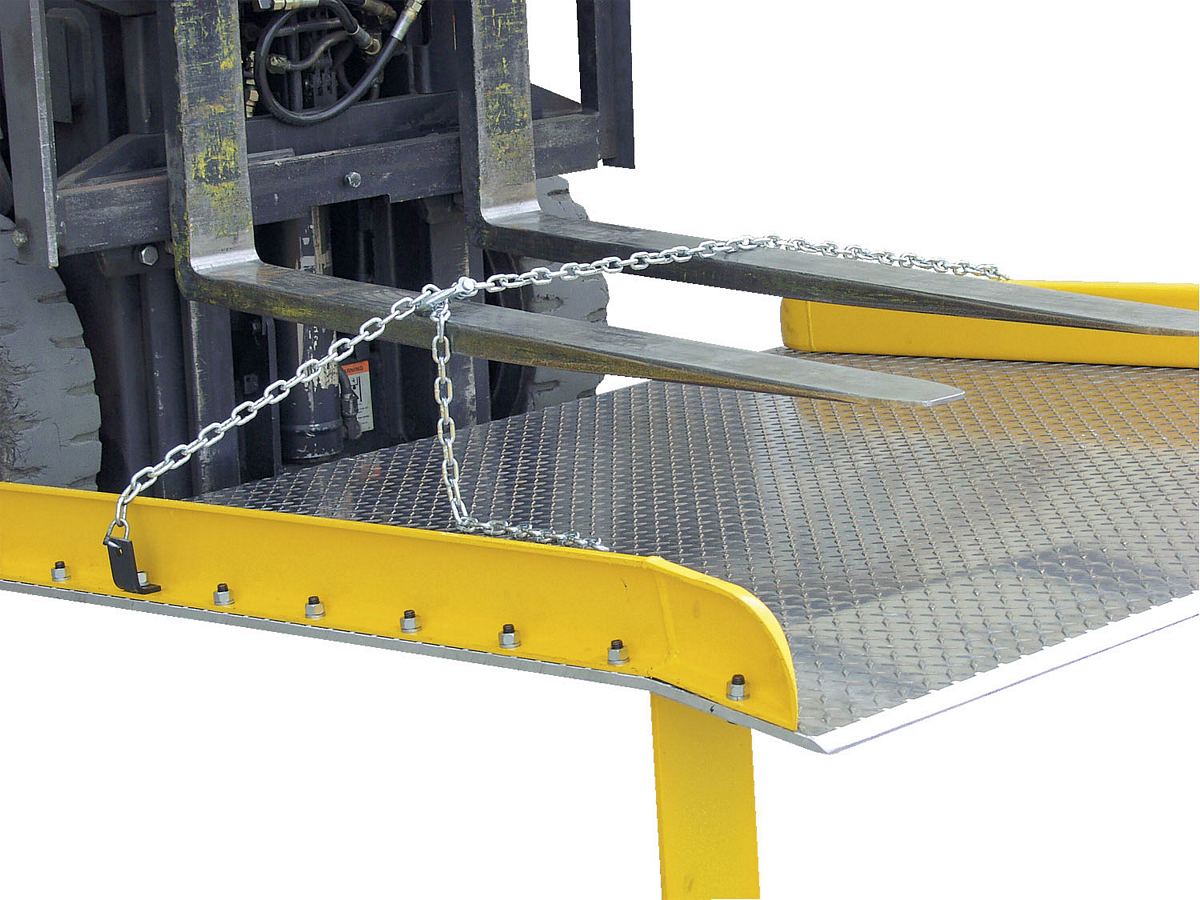

LC-TAS-72-84	30 Days Limited Warranty	Steel Curb Lifting Chains 60 In. Length for Steel Dock Boards Silver	Chain Length (in.): 60 Chain Diameter (in.): .25	9
RPL-ALUM	30 Days Limited Warranty	Factory Installed Removable Pickup Loops For Aluminum Dock Boards	Usable Loop Width/Height Each (in.): 7-1/2 x 2-1/2
WH-TAS	30 Days Limited Warranty	Aluminum Dock Board with Steel Curb Wheel Kit	Capacity (lbs): 200 Quantity of Casters: 2	5
WHHDL-TAS	30 Days Limited Warranty	Aluminum Dock Board with Steel Curb Wheel and Handle Kit	Capacity (lbs): 200 Quantity of Casters: 2	11

Model	Image	PDF	Description
SSL			Sliding Span Locks (BTA Only)
SP			Span Pins & Holes (4 Holes per side)
HOLE			Extra Span Holes
PIN			Extra Span Pins
ALL			Leverlift
SBL			Special Bend Location
S2B			Second Bend Location
ATC-12			Anti-Theft Chain (144")
