Model Details

COL-3-26-14-HDG

COL-3-26-14-HDG

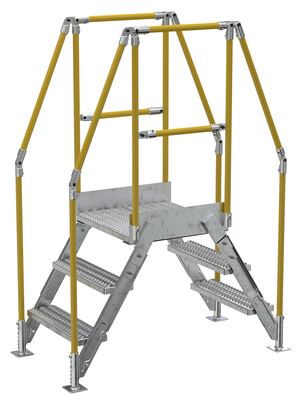

Galvanized Steel Crossover Ladder 3 Step 23-1/2 In. x 24 In. 500 Lb. Capacity Silver

In crowded industrial settings, sometimes the best way around an obstruction is up and over. Utilizing a crossover ladder allows the permanent pieces in the work area to stay in place while providing a more efficient option for personnel. The horizontal platform includes both upper and lower rails for complete staff security. Units must be anchored to the surface. During times of temporary use, the ladder can be knocked down for storage and shipping. Hot dip galvanized steel handrails with yellow powder coated finish.

  • Serrated steps for extra grip and safety
  • Meets OSHA 29 CFR 1910.23 and ANSI A14.7 standards
  • Ground legs include floor mounting pads
  • 58 degree climbing angle
Total Ship Wt.(lbs.): 264 (only 1 package) Size: 29.25"W x 54.5"L x 72.875"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 500 Platform Height (in.): 30 Platform Width (in.): 23-1/2
Platform Length (in.): 24 Handrail Height (in.): 42-5/8 Mid-Rail (in.): 21
Toeboard (in.): 4 Step Width (in.): 23-1/2 Step Depth (in.): 7
Step Spacing (in.): 10 Step Angle (degrees): 58 Number of Steps: 3
Clearance Span Width (in.): 14-1/8 Clearance Span Height (in.): 28-1/4 Overall Span Width (in.): 54-1/2
OSHA: 29 CFR 1910.23 ANSI: Standards A14.7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: COL-3-26-14-HDG


COL-3-26-14-HDG

Galvanized Steel Crossover Ladder 3 Step 23-1/2 In. x 24 In. 500 Lb. Capacity Silver

In crowded industrial settings, sometimes the best way around an obstruction is up and over. Utilizing a crossover ladder allows the permanent pieces in the work area to stay in place while providing a more efficient option for personnel. The horizontal platform includes both upper and lower rails for complete staff security. Units must be anchored to the surface. During times of temporary use, the ladder can be knocked down for storage and shipping. Hot dip galvanized steel handrails with yellow powder coated finish.

  • Serrated steps for extra grip and safety
  • Meets OSHA 29 CFR 1910.23 and ANSI A14.7 standards
  • Ground legs include floor mounting pads
  • 58 degree climbing angle
Dimensions: 29.25"W x 54.5"L x 72.875"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215324960 GTIN: 00691215324960
Warranty: -- Shipping Weight: 264 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Platform Height (in.): 30 Platform Width (in.): 23-1/2
Platform Length (in.): 24 Handrail Height (in.): 42-5/8 Mid-Rail (in.): 21
Toeboard (in.): 4 Step Width (in.): 23-1/2 Step Depth (in.): 7
Step Spacing (in.): 10 Step Angle (degrees): 58 Number of Steps: 3
Clearance Span Width (in.): 14-1/8 Clearance Span Height (in.): 28-1/4 Overall Span Width (in.): 54-1/2
OSHA: 29 CFR 1910.23 ANSI: Standards A14.7
