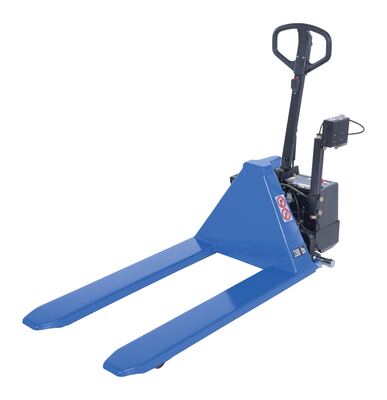

L-270-DC-HD-PE

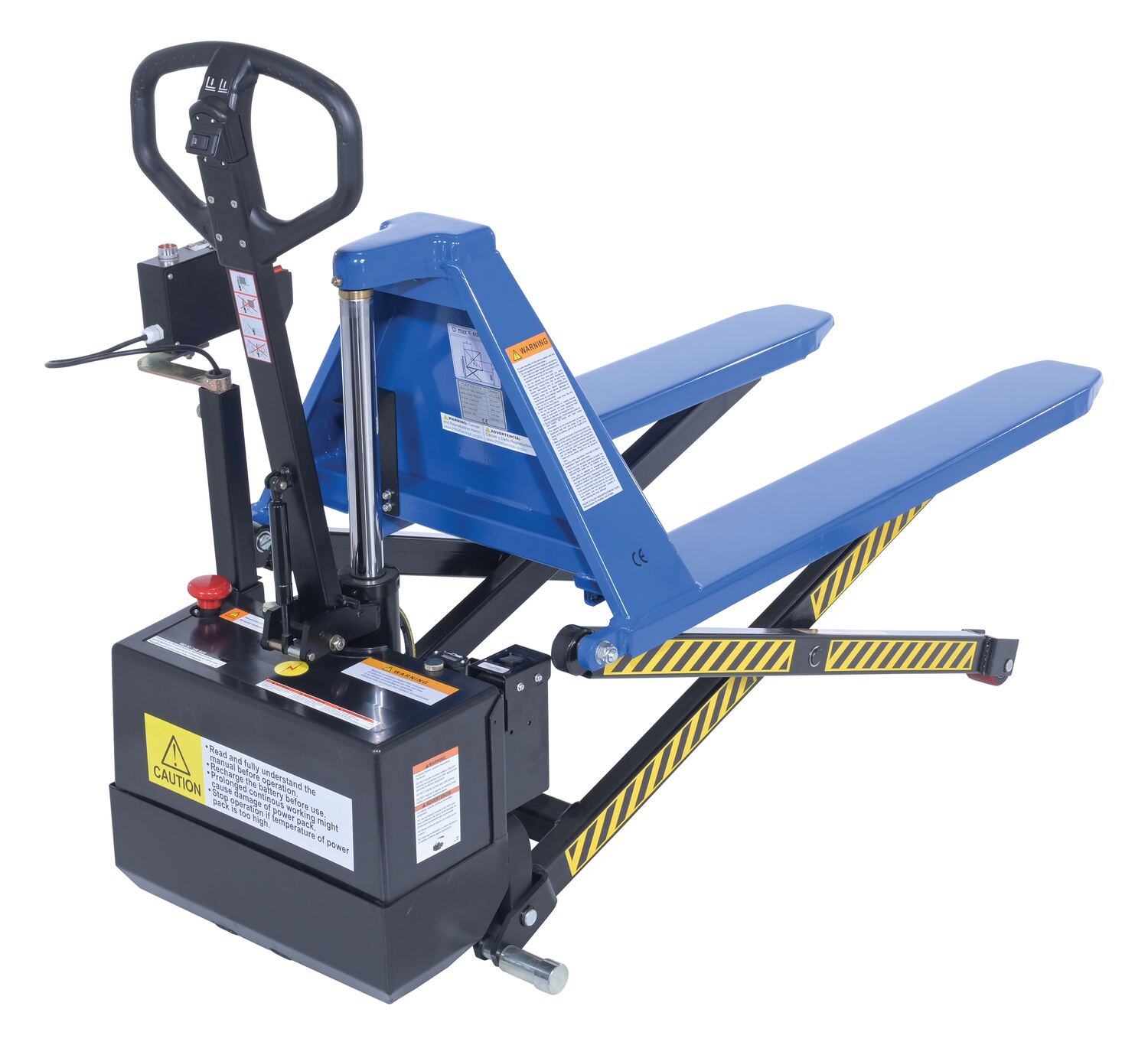

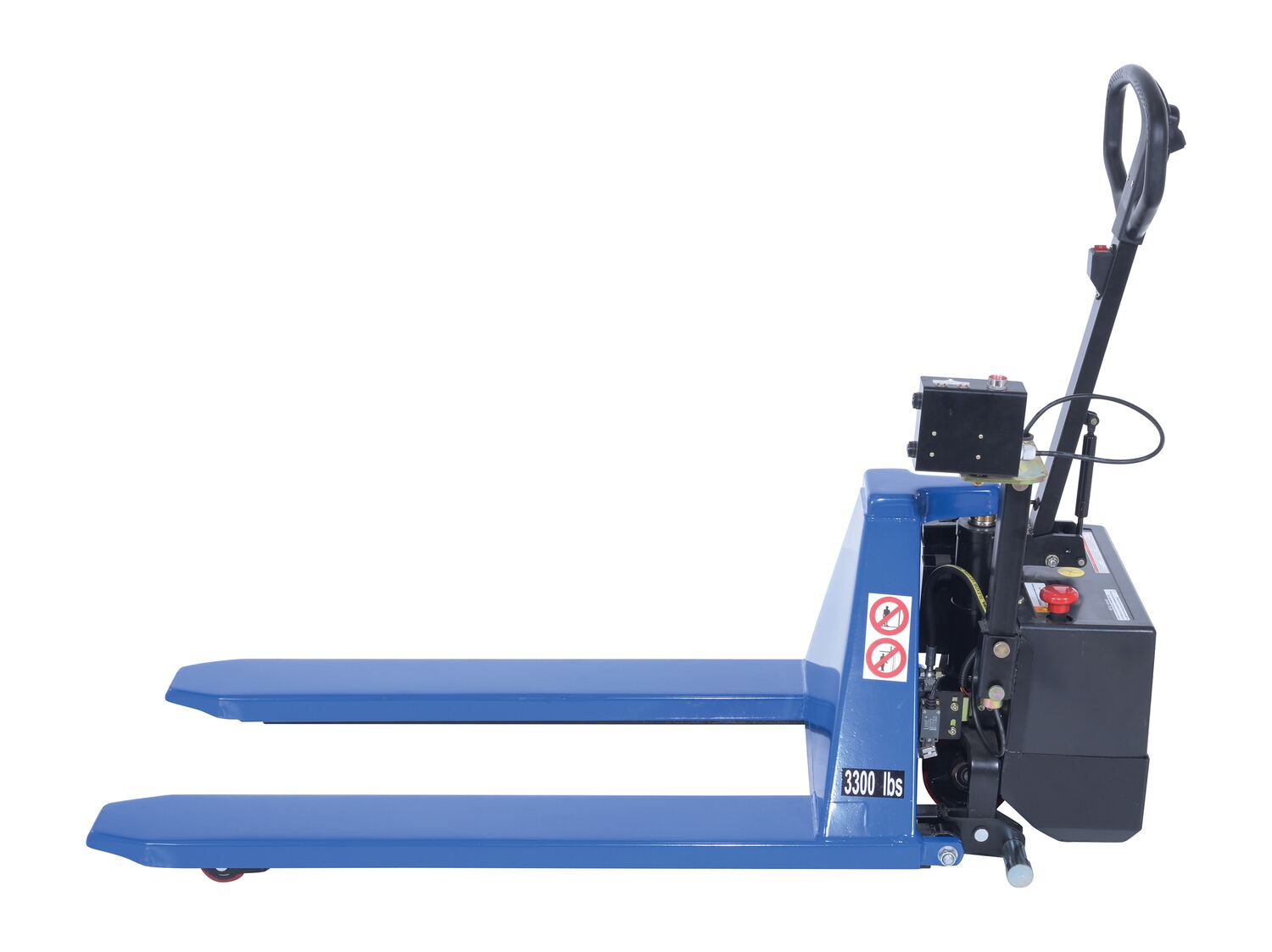

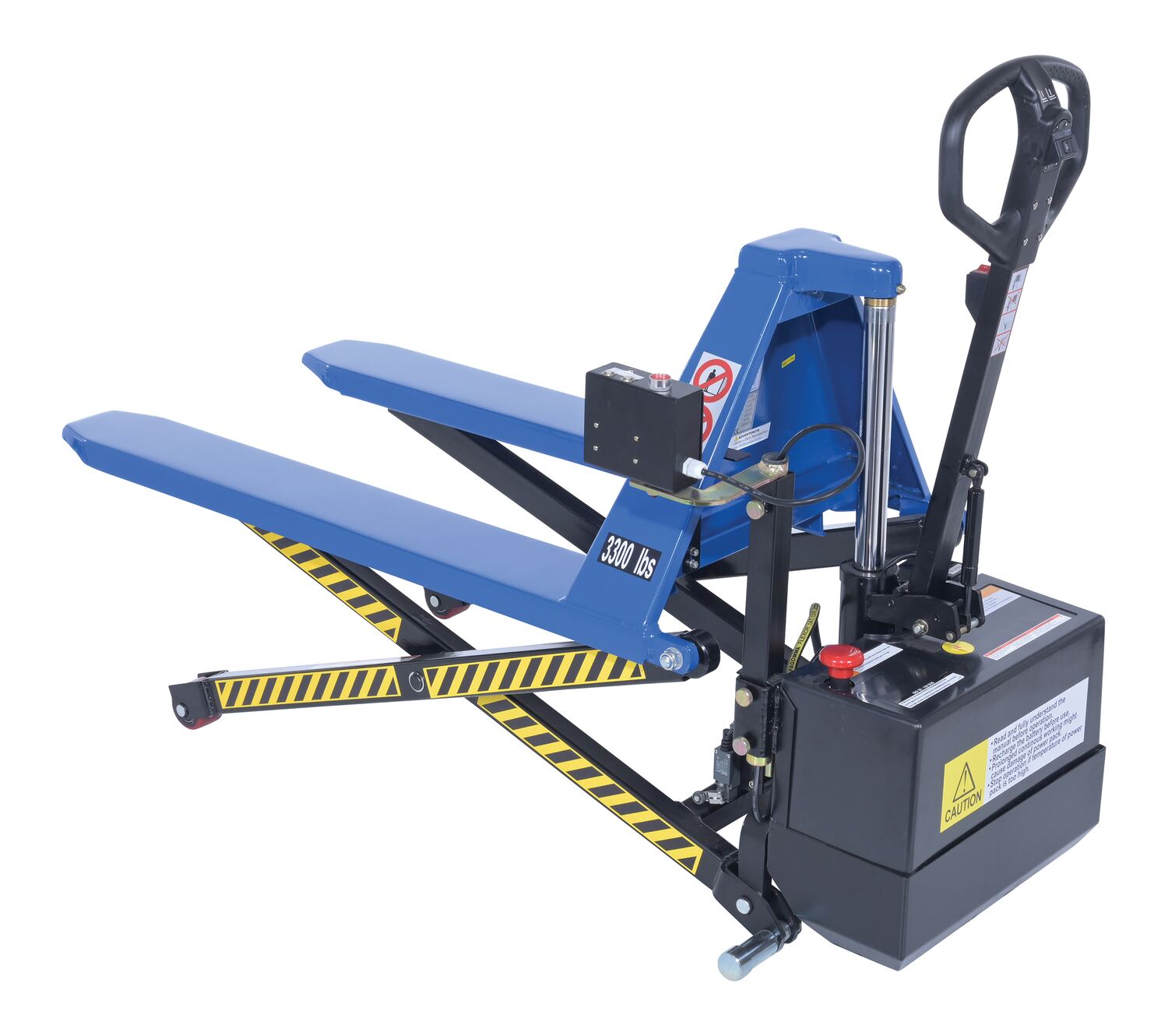

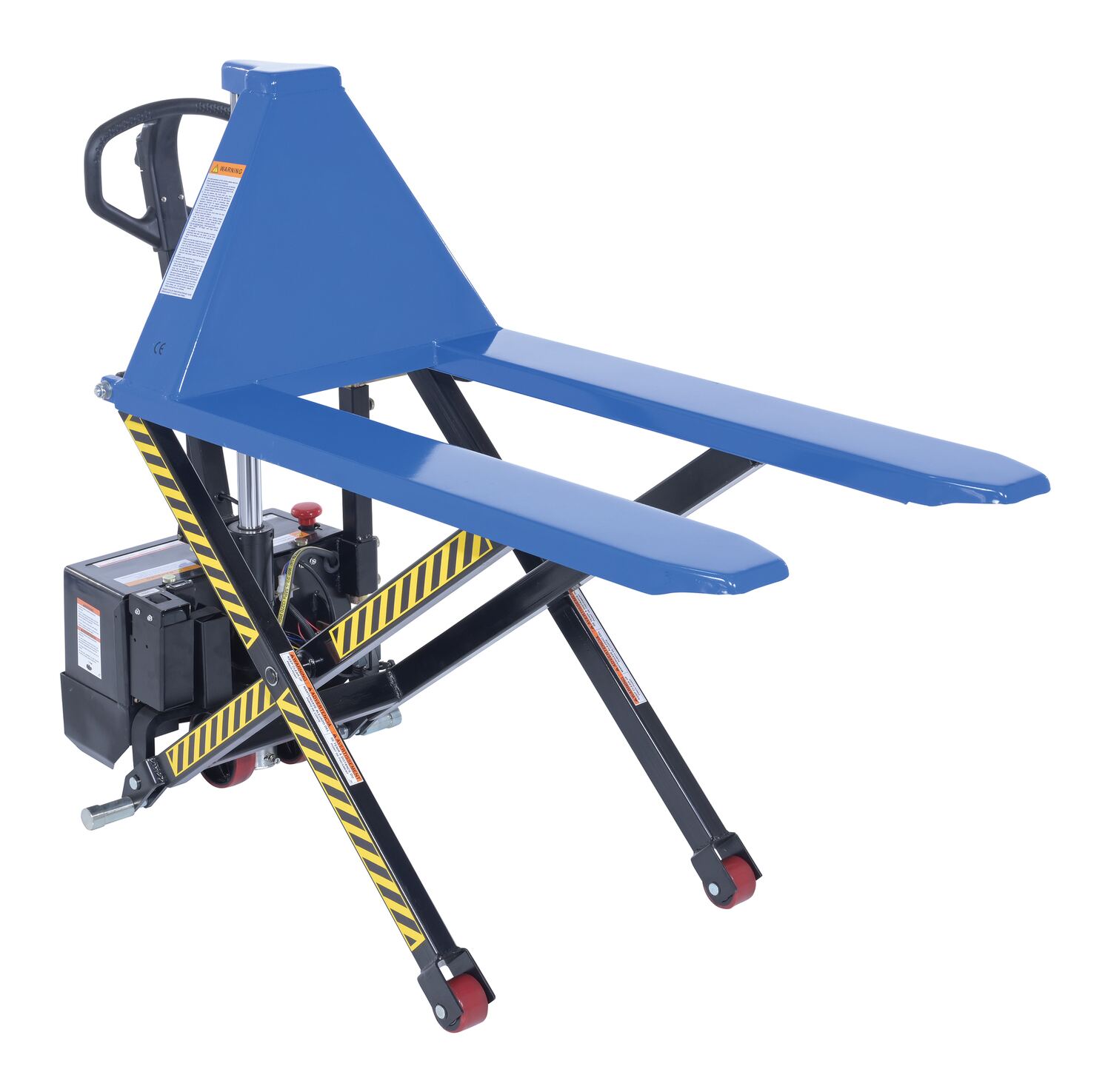

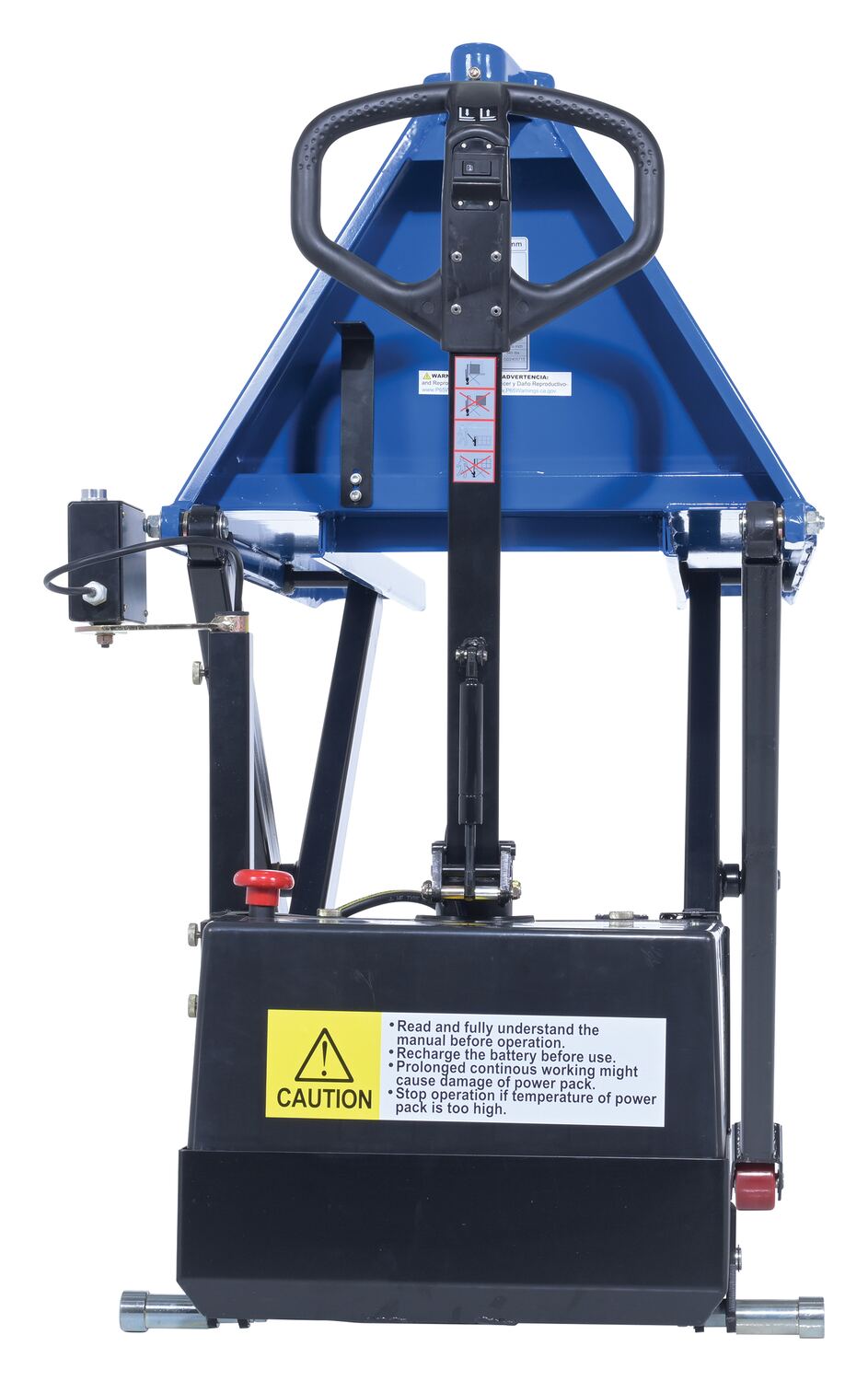

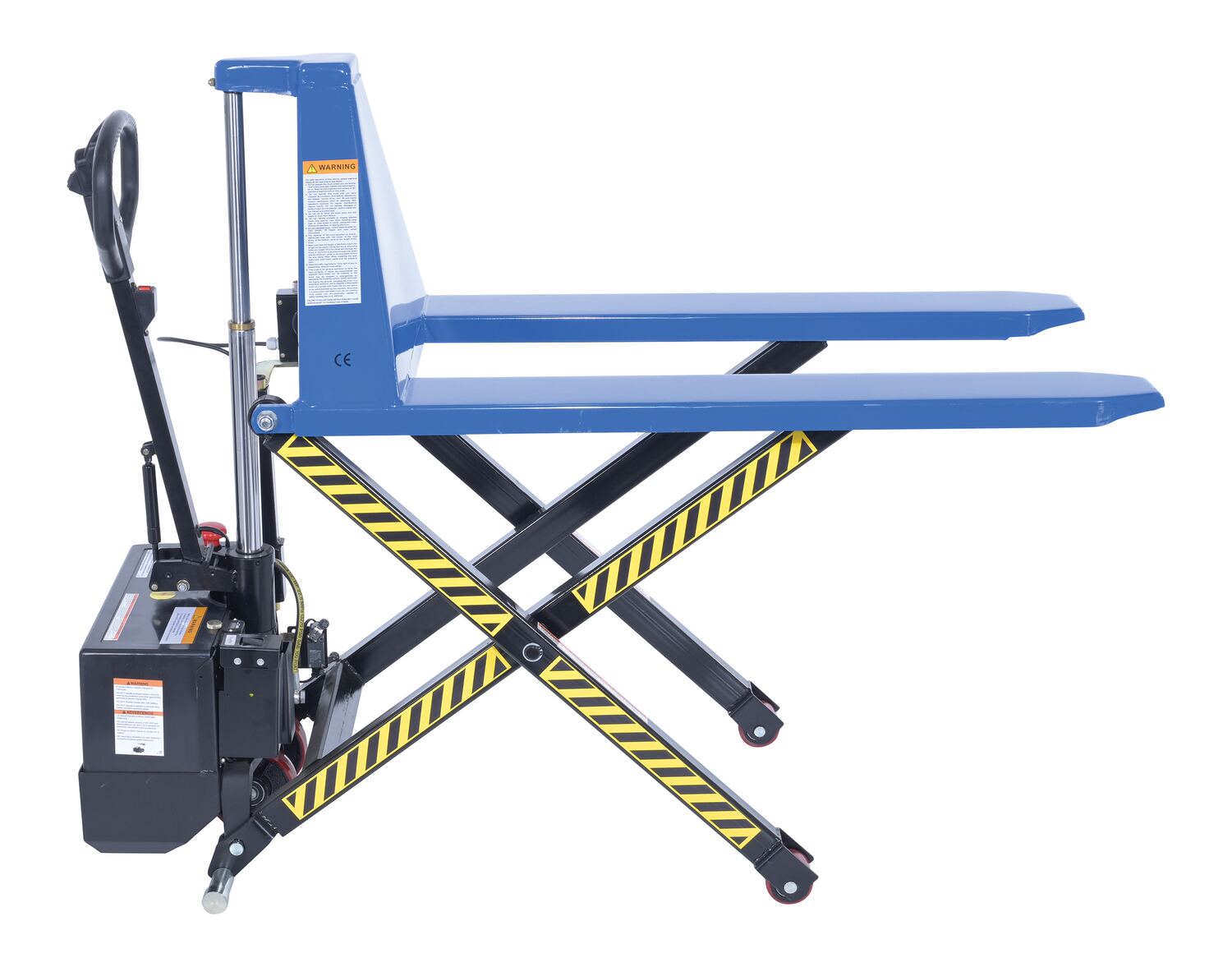

Steel DC Powered Tote Lift Photo Eye 62-1/4 In. x 29 In. x 51-1/4 In. 3000 Lb. Capacity Blue

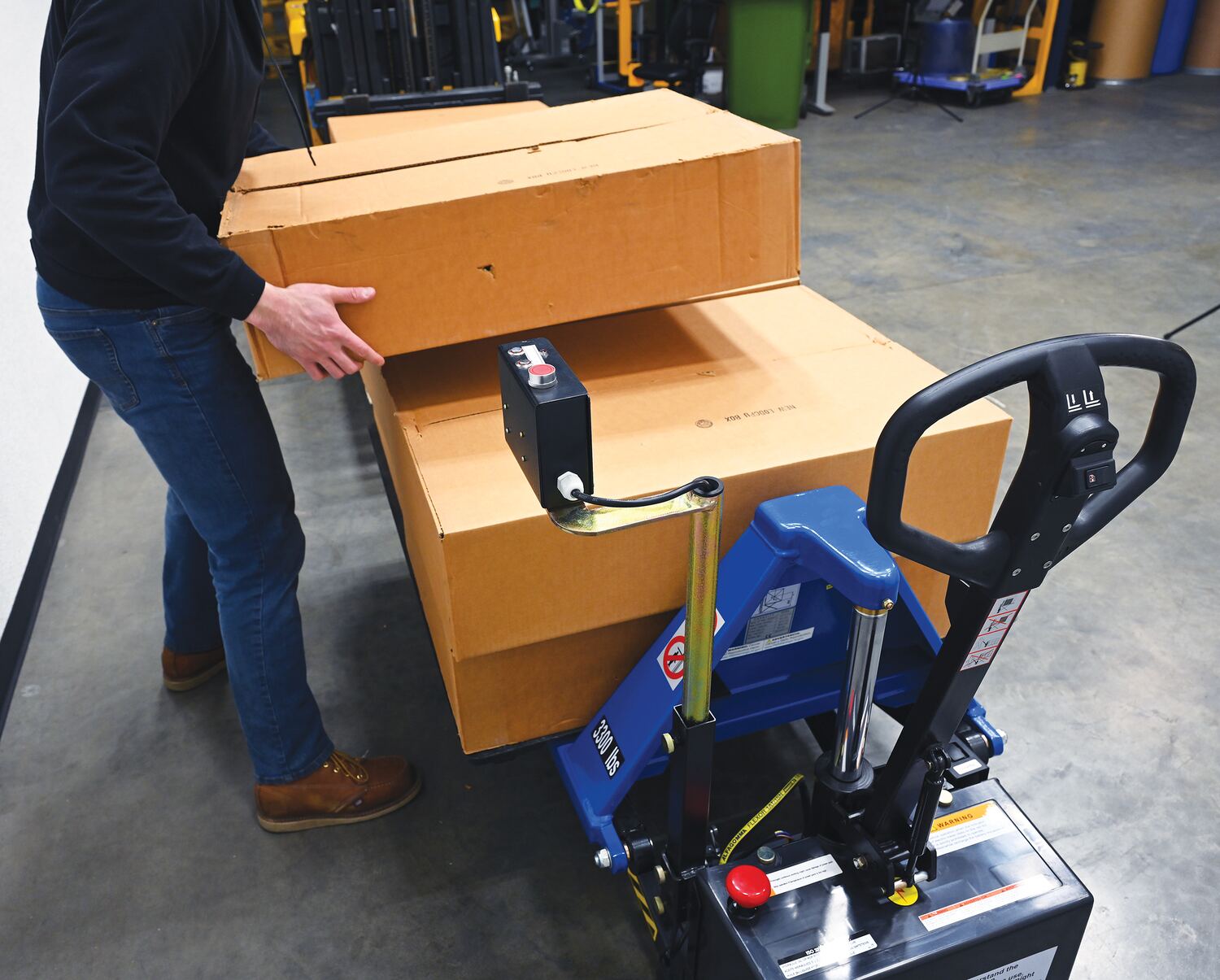

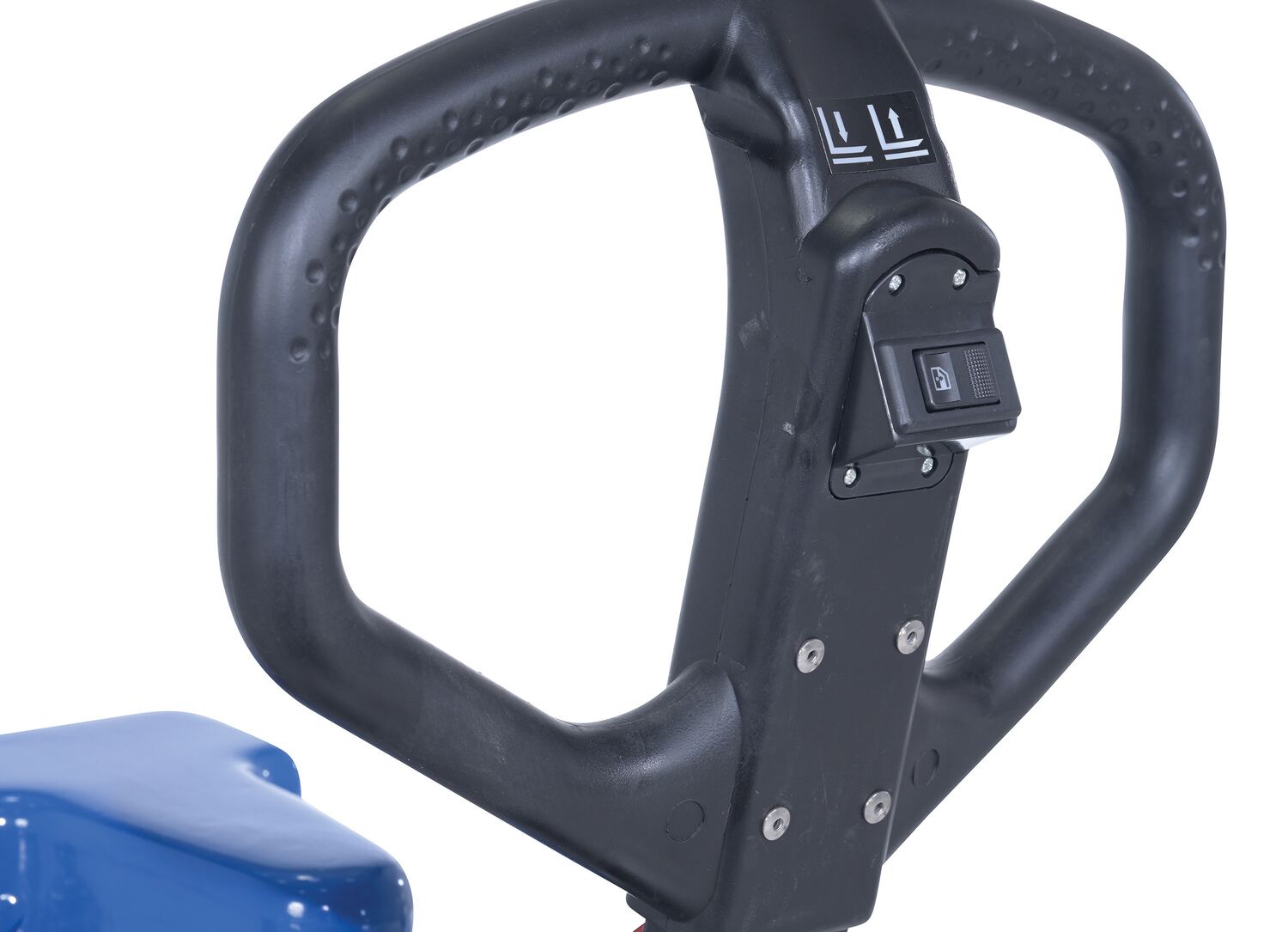

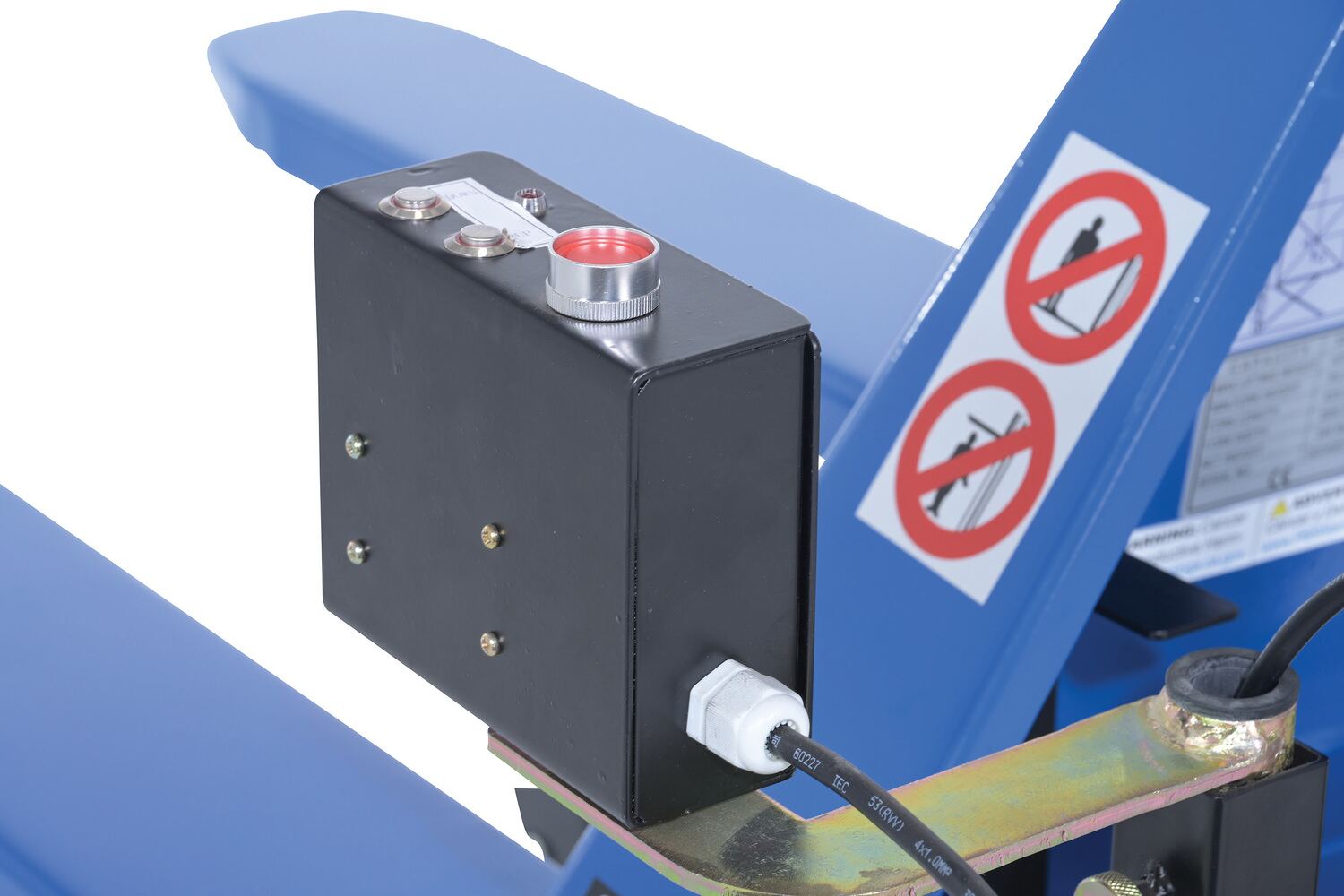

Whether your load is light, small, heavy, or large this tote lifter can manage the job! With its specifically designed structure, it is perfect for lifting open bottom skids, boxes, and baskets. Through a DC power supply, a simple rocker switch is used for raising and lowering. Not only that; but used in conjunction with the attached photo eye sensor, adjusting load heights has seldom been easier or more accurate. The photo eye sensor provides a visual representation of the tote lifters height while in the raising, lowering, or stationary process. An on-board battery charger is included to provide consistent power throughout the working day.

  • Automatic stabilizers engage when forks reach specific height
  • Front rollers and two rear swivel casters allow for easy portability
  • 12V DC battery included
  • Built of steel with a powder coat finish
Total Ship Wt.(lbs.): 435 (only 1 package) Size: 29"W x 62.25"L x 51.25"H Color: Blue

Uniform Capacity (lb.): 3000 Photo Eye?: Yes Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 27 Fork Length (in.): 45 Lowered Height (in.): 3-1/2
Raised Height (in.): 31-1/2 Front Roller Diameter (in.): 3 Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/4 Rear Wheel Width (in.): 1-5/8 Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30 Handle Material: Steel/Plastic Maximum Amperage: 140

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: L-270-DC-HD-PE
L-270-DC-HD-PE

Steel DC Powered Tote Lift Photo Eye 62-1/4 In. x 29 In. x 51-1/4 In. 3000 Lb. Capacity Blue

Whether your load is light, small, heavy, or large this tote lifter can manage the job! With its specifically designed structure, it is perfect for lifting open bottom skids, boxes, and baskets. Through a DC power supply, a simple rocker switch is used for raising and lowering. Not only that; but used in conjunction with the attached photo eye sensor, adjusting load heights has seldom been easier or more accurate. The photo eye sensor provides a visual representation of the tote lifters height while in the raising, lowering, or stationary process. An on-board battery charger is included to provide consistent power throughout the working day.

  • Automatic stabilizers engage when forks reach specific height
  • Front rollers and two rear swivel casters allow for easy portability
  • 12V DC battery included
  • Built of steel with a powder coat finish
Dimensions: 29"W x 62.25"L x 51.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215378970 GTIN: 00691215378970
Warranty: -- Shipping Weight: 435 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3000 Photo Eye?: Yes Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 27 Fork Length (in.): 45 Lowered Height (in.): 3-1/2
Raised Height (in.): 31-1/2 Front Roller Diameter (in.): 3 Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/4 Rear Wheel Width (in.): 1-5/8 Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30 Handle Material: Steel/Plastic Maximum Amperage: 140
