Model Details

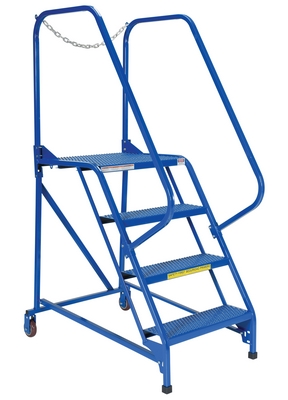

LAD-MM-4-P

LAD-MM-4-P

Steel Maintenance Ladder 58 Degree 4 Perforated 24 In. Step Width 350 Lb. Capacity Blue

Portable maintenance ladder for use around a variety of stores and inventory rooms. Constructed of square tubing framework, which handles uniform capacities up to 350 lbs. hand railing provides user safety while ascending or descending the unit. Distance between steps is 10". Powder coated finish for baked in added toughness.

  • Complies with ANSI 14.7 and OSHA 1910.29 specifications
  • Portable ladder allows workers to easily maneuver throughout the warehouse
  • Simple tilt back design allows for easy portability
  • Removable access chain increases worker safety when not in use
Total Ship Wt.(lbs.): 125 (only 1 package) Size: 29.5"W x 43.625"L x 70"H Color: Blue

Uniform Capacity (lb.): 350 Step Angle (degrees): 58 Step (qty.): 4
Top Step Height (in.): 40 Hand Rail Height (in.): 30 Top Platform Length (in.): 21
Top Platform Width (in.): 24 Safety Chain (in.): 3/16 Step Width (in.): 24
Step Depth (in.): 7 Step Spacing (in.): 10 Wheel Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
Wheel Type: Poly-on-Poly Step Style: Perforated OSHA: 1910.29
ANSI: A14.7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LAD-MM-4-P


LAD-MM-4-P

Steel Maintenance Ladder 58 Degree 4 Perforated 24 In. Step Width 350 Lb. Capacity Blue

Portable maintenance ladder for use around a variety of stores and inventory rooms. Constructed of square tubing framework, which handles uniform capacities up to 350 lbs. hand railing provides user safety while ascending or descending the unit. Distance between steps is 10". Powder coated finish for baked in added toughness.

  • Complies with ANSI 14.7 and OSHA 1910.29 specifications
  • Portable ladder allows workers to easily maneuver throughout the warehouse
  • Simple tilt back design allows for easy portability
  • Removable access chain increases worker safety when not in use
Dimensions: 29.5"W x 43.625"L x 70"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215073189 GTIN: 00691215073189
Warranty: -- Shipping Weight: 125 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 350 Step Angle (degrees): 58 Step (qty.): 4
Top Step Height (in.): 40 Hand Rail Height (in.): 30 Top Platform Length (in.): 21
Top Platform Width (in.): 24 Safety Chain (in.): 3/16 Step Width (in.): 24
Step Depth (in.): 7 Step Spacing (in.): 10 Wheel Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
Wheel Type: Poly-on-Poly Step Style: Perforated OSHA: 1910.29
ANSI: A14.7
