Model Details

SEH-7230

SEH-7230

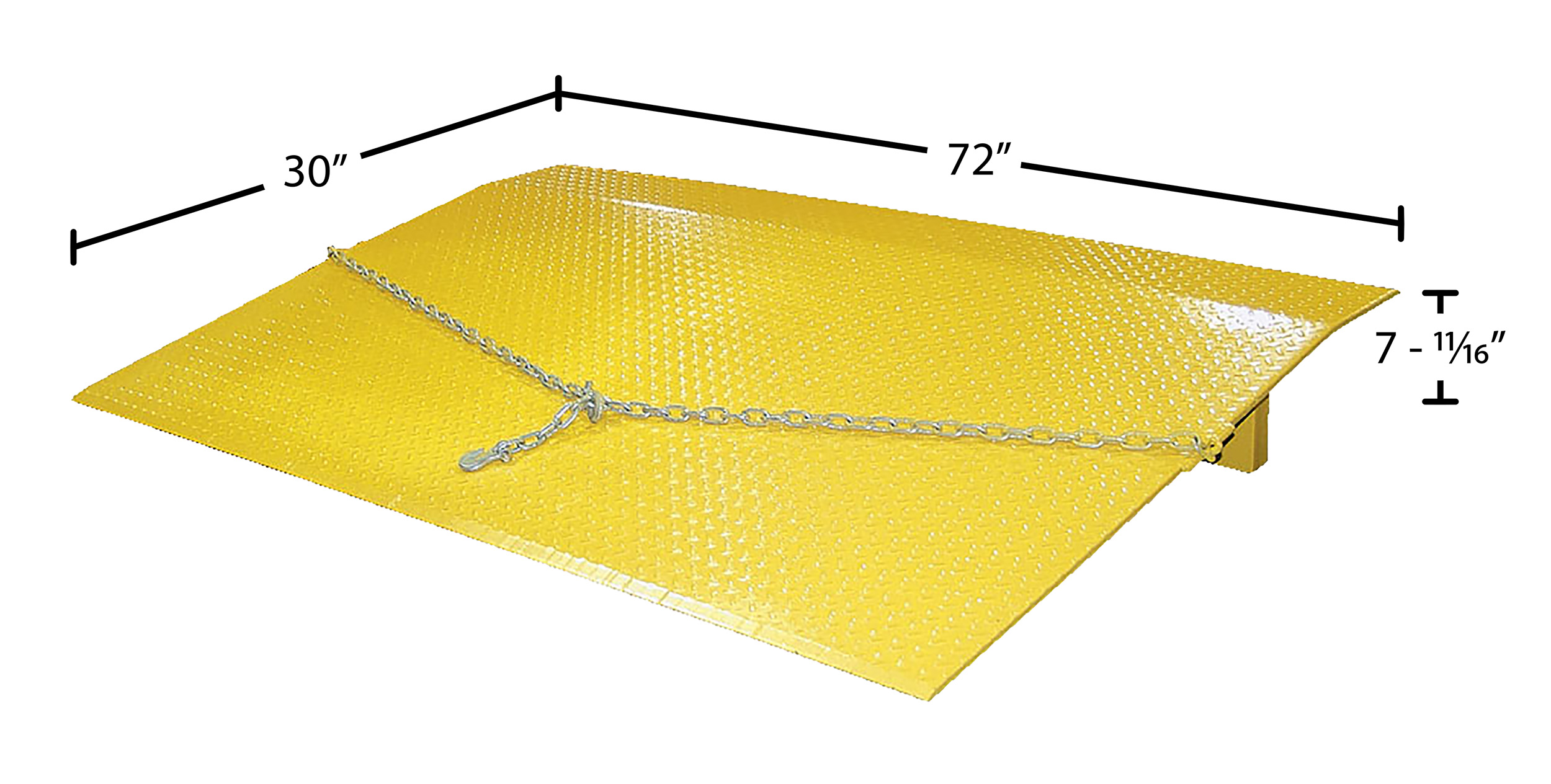

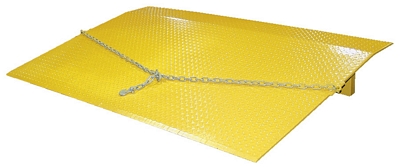

Steel Truck Dock Plate 30 In. x 72 In. x 7-11/16 In. 13,200 Lb. Capacity Yellow

The steel truck dock plate is constructed of high strength INX-55 (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degrees bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three wheeled pallet trucks, select capacity +20% due to concentrated load center of board.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • OSHA compliant locking legs secure dock plate when in use
  • Beveled entry and exit edges provide a smooth transition
Total Ship Wt.(lbs.): 369 (only 1 package) Size: 72"W x 30"L x 7.6875"H Color: Yellow

Uniform Capacity (lb.): 13200 Height Difference (in.): 4 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Beveled Edge (in.): 10
Plate Thickness (in.): 1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SEH-7230


SEH-7230

Steel Truck Dock Plate 30 In. x 72 In. x 7-11/16 In. 13,200 Lb. Capacity Yellow

The steel truck dock plate is constructed of high strength INX-55 (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degrees bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three wheeled pallet trucks, select capacity +20% due to concentrated load center of board.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • OSHA compliant locking legs secure dock plate when in use
  • Beveled entry and exit edges provide a smooth transition
Dimensions: 72"W x 30"L x 7.6875"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215117692 GTIN: 00691215117692
Warranty: -- Shipping Weight: 369 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 13200 Height Difference (in.): 4 Steel Strength (psi): 55000
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 9 Leg Distance from Beveled Edge (in.): 10
Plate Thickness (in.): 1/2
