Product Data Sheet

  Classic View
  All Products   Industrial Ladders   Ladders   Alternating-Tread Stairs ATS-9-56-HDG
ATS-9-56-HDG

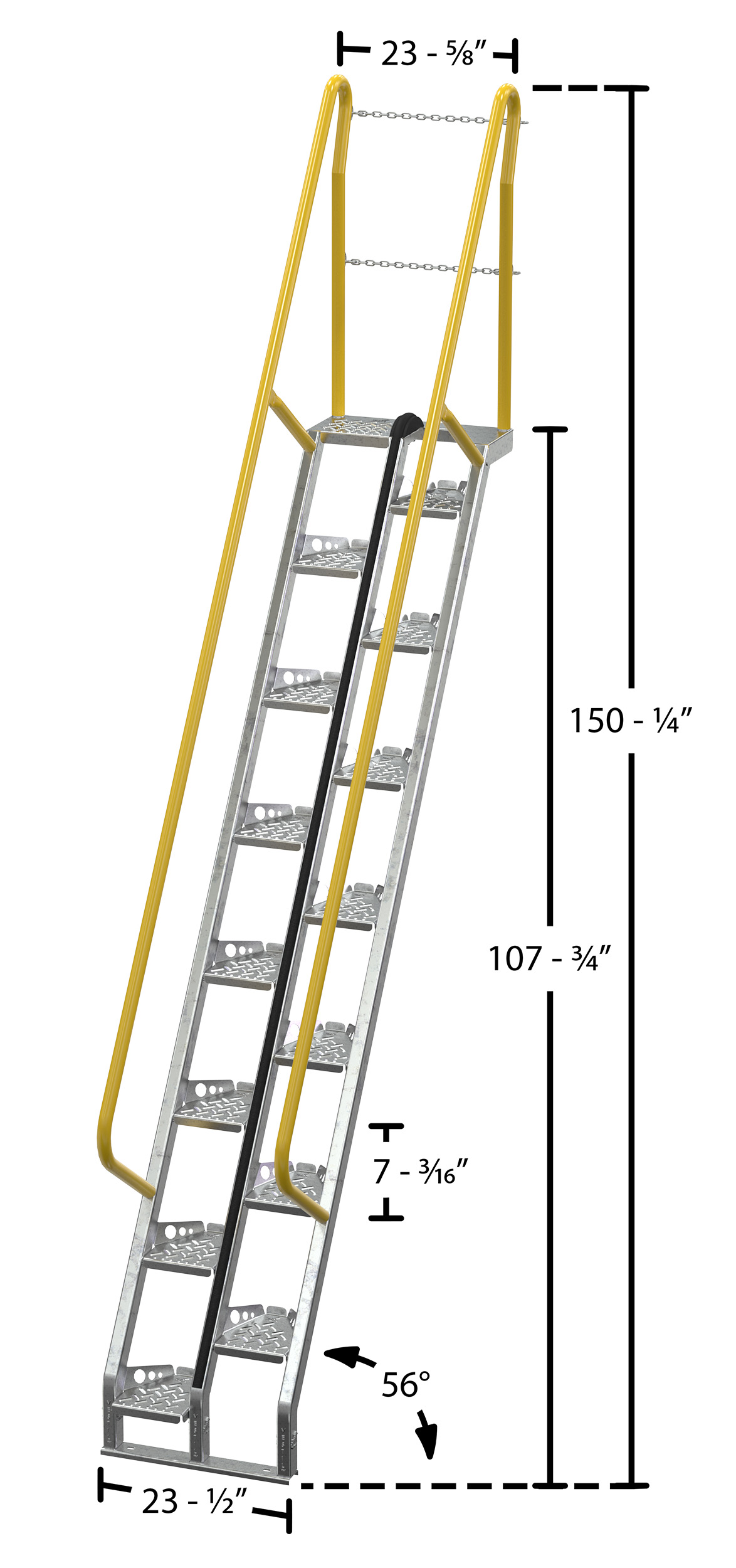

Galvanized Alternate Tread Stair 56 Degrees 81-5/8 In. x 23-1/2 In. x 150-1/4 In. 350 Lb. Capacity Silver

Alternating-tread stair design is a great addition to a variety of warehouses and workshops. The unique design offers a shorter span than traditional steps. With a handrail on each side of unit and a dual safety chain at the top of the stair, security is the top priority of this ladder style.
Available Non-Returnable
Key Features
  • Two-sided hand railing provides added user safety
  • Steps are constructed of a raised steel surface providing better traction
  • Handrails have a safety yellow powder coat finish
  • Steel steps and platform have a durable hot dip galvanize finish
Product Image

Visual Reference

ATS-9-56-HDG
ATS-9-56-HDG
ATS-9-56-HDG
ATS-9-56-HDG
ATS-9-56-HDG
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 229 lbs
Assembled Size 23.5"W x 81.625"L x 150.25"H
Total Ship Weight 284 lbs
Package 1 Size 30"W x 145"D x 16"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 350
Number of Steps 15
Top Step Height (in.) 107-3/4
Step Angle (degrees) 56
Safety Chain (in.) 3/16
Top Step Depth (in.) 9-3/4
Top Step Width (in.) 23-5/8
Step (excluding top step) Depth (in.) 10-1/2
Step (excluding top step) Width (in.) 9-1/8
Step Height Spacing (in.) 7-3/16
Handrail Height (in.) 18-5/8
OSHA 29 CFR 1910.25(e`)
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Alternating Tread Stairs   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ATS-9-56-HDG

ATS-9-56-HDG

Galvanized Alternate Tread Stair 56 Degrees 81-5/8 In. x 23-1/2 In. x 150-1/4 In. 350 Lb. Capacity Silver

Alternating-tread stair design is a great addition to a variety of warehouses and workshops. The unique design offers a shorter span than traditional steps. With a handrail on each side of unit and a dual safety chain at the top of the stair, security is the top priority of this ladder style.

  • Two-sided hand railing provides added user safety
  • Steps are constructed of a raised steel surface providing better traction
  • Handrails have a safety yellow powder coat finish
  • Steel steps and platform have a durable hot dip galvanize finish

Core Data

Assembled Weight: 229 Assembled Size: 23.5"W x 81.625"L x 150.25"H Color: Silver
Total Ship Weight: 284 Package 1 Size: 30"W x 145"D x 16"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 350
Number of Steps: 15
Top Step Height (in.): 107-3/4
Step Angle (degrees): 56
Safety Chain (in.): 3/16
Top Step Depth (in.): 9-3/4
Top Step Width (in.): 23-5/8
Step (excluding top step) Depth (in.): 10-1/2
Step (excluding top step) Width (in.): 9-1/8
Step Height Spacing (in.): 7-3/16
Handrail Height (in.): 18-5/8
OSHA: 29 CFR 1910.25(e`)
