L-270-DC-HD

Steel DC Powered Tote Lift 63 In. x 26-3/4 In. x 46-1/2 In. 3000 Lb. Capacity Blue

The tote lifter is designed to lift open bottom skids, boxes, and baskets. Lifter is DC power with rocker switch to raise or lower. This DC powered unit includes an on-board battery charger. The side stabilizers lock lift in place when load is raised over a certain height.
Available QuickShip
Key Features
  • Solid steel construction provides long lasting rugged use
  • Automatic stabilizers engage when forks reach specific height
  • Stabilizers design prevent unit from moving
  • Front rollers and two rear swivel casters allow for easy portability
Product Image

Visual Reference

L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 378 lbs

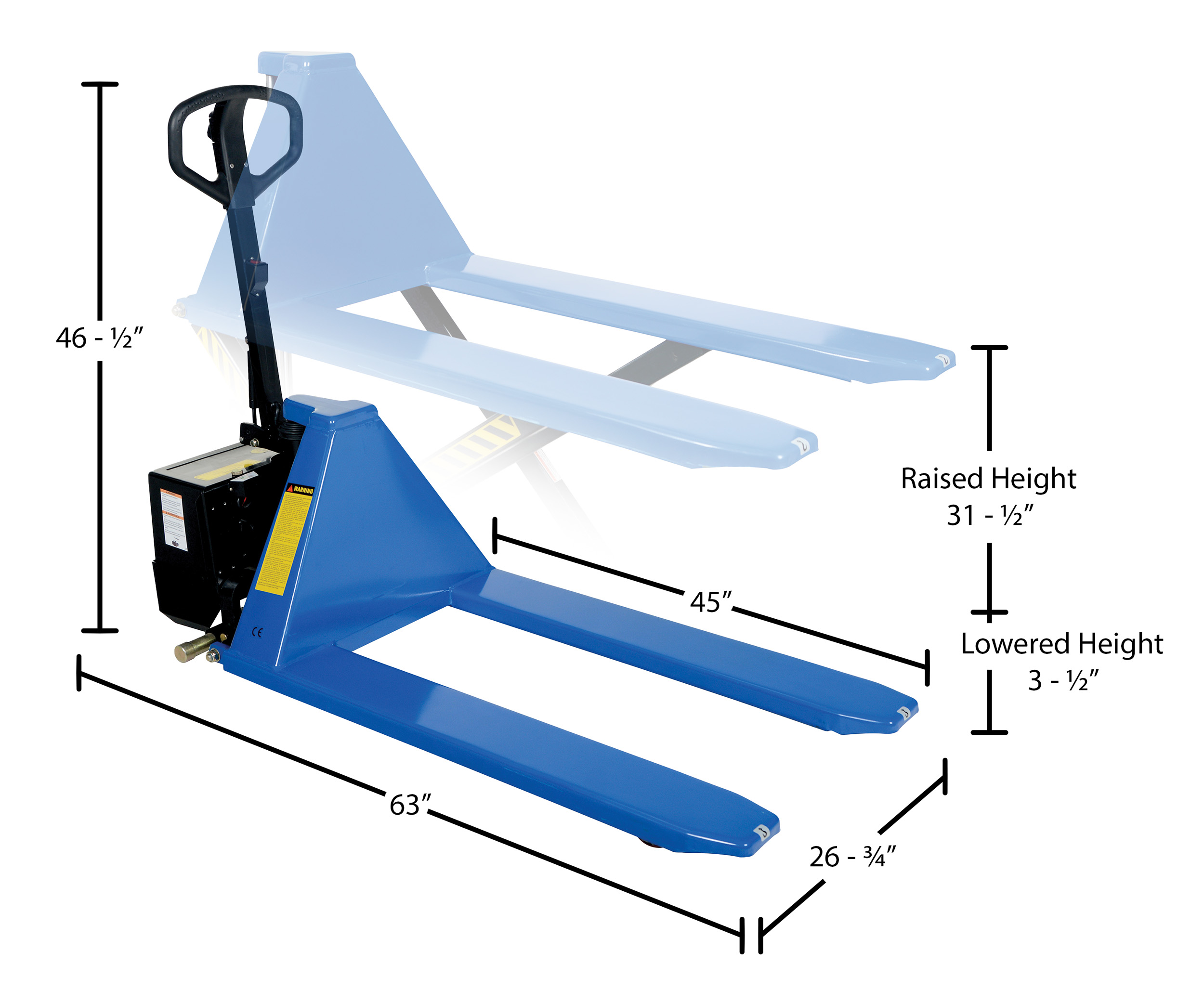

Assembled Size 26.75"W x 63"L x 46.5"H
Total Ship Weight 428 lbs
Package 1 Size 48"W x 71"D x 55"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 3,000
Operation 12 Volt DC Power
Side Stabilizer Locks at Raised Height (in.) 20-1/2
Fork Width (in.) 27
Fork Length (in.) 45
Lowered Height (in.) 3-1/2
Raised Height (in.) 31-1/2
Front Roller Diameter (in.) 3
Front Roller Width (in.) 1-7/8
Rear Wheel Diameter (in.) 5-3/4
Rear Wheel Width (in.) 1-5/8
Rear Wheel Material Poly-On-Steel
Handle Length (in.) 30
Handle Material Steel/Plastic
Maximum Amperage 140
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hand Pump & DC Powered Tote Lifters   Model L-220-HD & L-270-HD Hand Pump Tote Lifters   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: L-270-DC-HD

L-270-DC-HD

Steel DC Powered Tote Lift 63 In. x 26-3/4 In. x 46-1/2 In. 3000 Lb. Capacity Blue

The tote lifter is designed to lift open bottom skids, boxes, and baskets. Lifter is DC power with rocker switch to raise or lower. This DC powered unit includes an on-board battery charger. The side stabilizers lock lift in place when load is raised over a certain height.

  • Solid steel construction provides long lasting rugged use
  • Automatic stabilizers engage when forks reach specific height
  • Stabilizers design prevent unit from moving
  • Front rollers and two rear swivel casters allow for easy portability

Core Data

Assembled Weight: 378 Assembled Size: 26.75"W x 63"L x 46.5"H Color: Blue
Total Ship Weight: 428 Package 1 Size: 48"W x 71"D x 55"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 3,000
Operation: 12 Volt DC Power
Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 27
Fork Length (in.): 45
Lowered Height (in.): 3-1/2
Raised Height (in.): 31-1/2
Front Roller Diameter (in.): 3
Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/4
Rear Wheel Width (in.): 1-5/8
Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30
Handle Material: Steel/Plastic
Maximum Amperage: 140
